Cal-Royal RHDSA-SS Installation Instructions

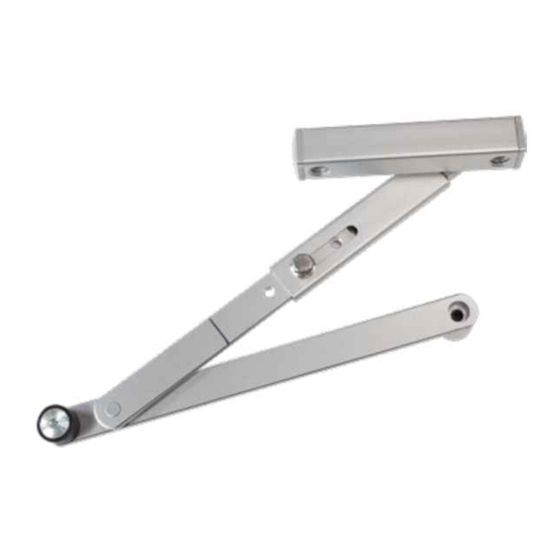

RHDSA-SS Arm Installation Instructions
�
CA L·R OYA L
for 300 Series / 500 Series Door Closers
INC .
PRODUCTS,
Closer setup
A
Follow included template to properly prepare door frame
•
for all accessories of the closer installation.
A
Know the swing of the door which is being installed prior
•
to installation.
:
4
5
6
Surface closer system
The closer is comprised of the following components.
1. Damper assembly
2. Main arm
3. Cover
4. Pinion
5. Latch speech adjustment
Handing of the door
Tools recommended
• Drill Bits
Metal:
Wood: 5/32"
DPK: 1/8"
Sex nut:
-
Interior side of door
Left hand door (LH)
�
Exterior side of door
■ #3 Phillips screwdriver
7/32" & 1/4-20 tap
1 /2" or 13mm box wrench
■
• 1 O" adjustable wrench
3/8"
A
Verify closer spring size prior to installation. See "Spring
•
size chart" on page 2.
A
Make sure door efficiently operates prior to installing
•
closer.
(:,,_____
6. Closing/sweep speed adjustment
7. Dust cap
8. Connecting arm
.,,
Right hand door (RH)
�
i
8
)
3/16" hex key
■
• 5mm hex key (supplied)
DCG-1070-1 of 4-0624
