Cal-Royal RHDSTP Installation Instructions

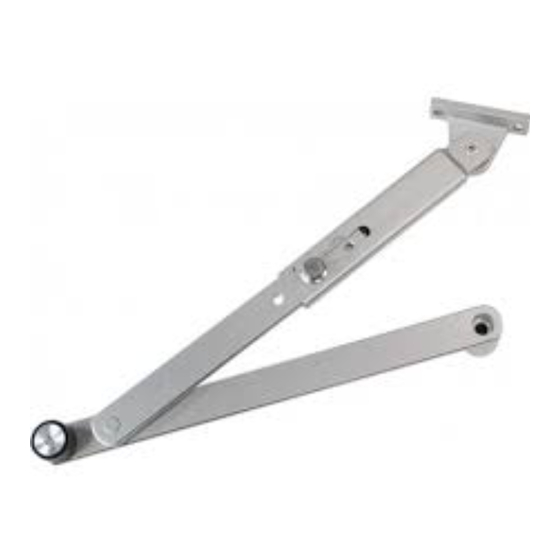

RH DSTP Arm Installation Instructions
�
CAL-ROYAL
for N900PBF Series Door Closers
PRODUCTS, INC ,
Closer setup
&
Follow included template to properly prepare door frame
•
for all accessories of the closer installation.
&
Know the swing of the door which is being installed prior
•
to installation.
2
3
5
6
7
Surface closer system
The closer is comprised of the following components.
1. Cover
2. Dust cap
3. Pinion screw
4. Delayed action adjustment
5. Latch speed adjustment
6. Closer body
7. Closing/sweep speed adjustment
Handing of the door
Left hand door ( LH)
Tools recommended
• Drill Bits
Metal: 7/32" & 1/4-20 tap
Wood: 5/32"
DPK: 1/8"
Sex nut: 3/8"
&
Verify closer spring size prior to installation. See "Spring
•
size chart" on page 2.
,1-. Make sure door efficiently operates prior to installing
LU. closer.
{
8. Bar/shoe assembly
9. Main arm
10. Connecting arm
11. Backcheck action adjustment
-
.,,,
Interior side of door
�.
Exterior side of door
#3 Phillips screwdriver
■
• 1 /2" or 13mm box wrench
■ 10" adjustable wrench
)
/"2
11
10
9
8
Right hand door ( RH)
. �
4,_. Hinge
• 3/16" hex key
■ 5mm hex key ( supplied)
DCG-1075-1 of 4-0624
