Cal-Royal CR801S Installation Instructions Manual
  1. Manuals
  2. Brands
  3. Cal-Royal Manuals
  4. Door Opening System
  5. CR801S
  6. Installation instructions manual

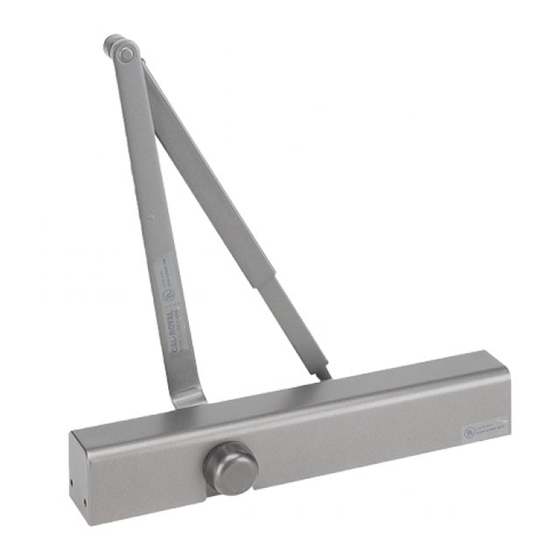

Cal-Royal CR801S Installation Instructions Manual

Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

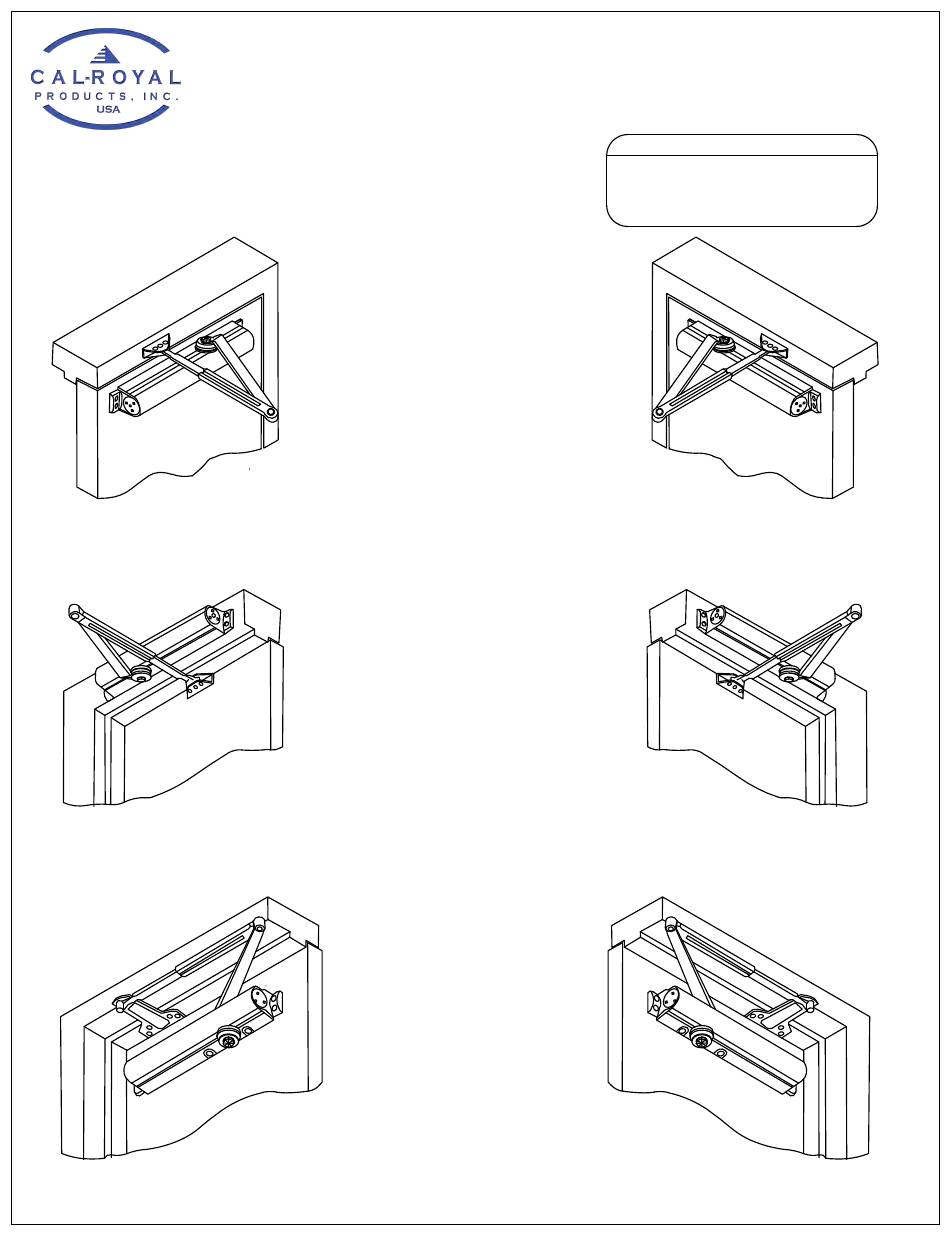

Left hand door -LH
Right hand reverse - RHR
Left hand door -LH
Right hand reverse - RHR
Left hand door -LH
Right hand reverse - RHR
Regular Arm Installation
closer mounts on hinges (pull) side of door
See page 3.
closer cover not shown
Top Jamb Installation
closer mounts on frame face on
opposite to hinge (push) side of door
See page 4.
closer cover not shown
Parallel Arm Installation
closer mounts on opposite to
hinges (push) side of door
See page 5.
closer cover not shown
Installation Instructions
Adjustable size 1 to 6
CAUTION
An incorrectly installed or improperly
adjusted door closer can cause property
damage or personal injury, These instructions
should be followed to avoid the possibility
of misapplication or misadjustment
Right hand door - RH
Light hand reverse - LHR
Right hand door -RH
Left hand reverse - LHR
Right hand door -RH
Left hand reverse - LHR
DWG # DCG1025 - 1/6 - APR2022
CR801S

Advertisement

loading
Need help?

Need help?

Do you have a question about the CR801S and is the answer not in the manual?

Questions and answers

Related Manuals for Cal-Royal CR801S

Summary of Contents for Cal-Royal CR801S

  • Page 1 Installation Instructions CR801S Adjustable size 1 to 6 CAUTION An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury, These instructions should be followed to avoid the possibility of misapplication or misadjustment Regular Arm Installation closer mounts on hinges (pull) side of door See page 3.
  • Page 2 Components: Main Arm Screw Standard Closer Pinion Cap Closer Arm Full cover or Slim Cover Full cover or Slim Cover Parallel Arm Plate Screw Package It is recommended that the door be hung on ball bearing type hinges so door swings freely. ·...

  • Page 3: Installation Instructions

    Installation Instructions Regulat Arm Template "A" 5-1/2"(140) 1-3/4"(44.4) Dot not scale drawing Right hand door shown " Dimensions are in Inches (mm) (30) " (30) "(19) 12"(305) OPENING INCHES C L Hinge or pivot TO 100° 7-1/2” 100° TO 130° 6”...
  • Page 4 Installation Instructions Top Jamb Template "A" 12"(305) Dot not scale drawing Right hand door shown Dimensions are in Inches (mm) "(19) "(12.7) "(48) " "(140) (44.4) OPENING INCHES TO 100° 7-1/2” 100° TO 130° 8” C L Hinge or pivot OVER 130°...
  • Page 5 Parallel Arm Installation Instructions Template "(12.7) OPENING Dimension "A" Dimension "B" 3-3/4"(95.25) 2" 9-1/2”(241.3) 100° TO 130° "(11.1) (50.8) 1-1/4"(31.75) 7”(177.8) OVER 130° "A" " C L Hinge or Pivot (70) Frame 3-1/2"(90) Dot not scale drawing "(19) Right hand door shown Dimensions are in Inches (mm) 12"(305) "B"...

  • Page 6: Unit Adjustment

    Unit adjustment Closing speed control (Figure 1,2, and 6) Opening door control (figure 4 and 5) Valve "S" control sweep range · Backcheck ("B") Valve control the hydraulic resistance to door · Valve "L" control latch range opening. NEVER close this valve completely- it is not to provide ·...
