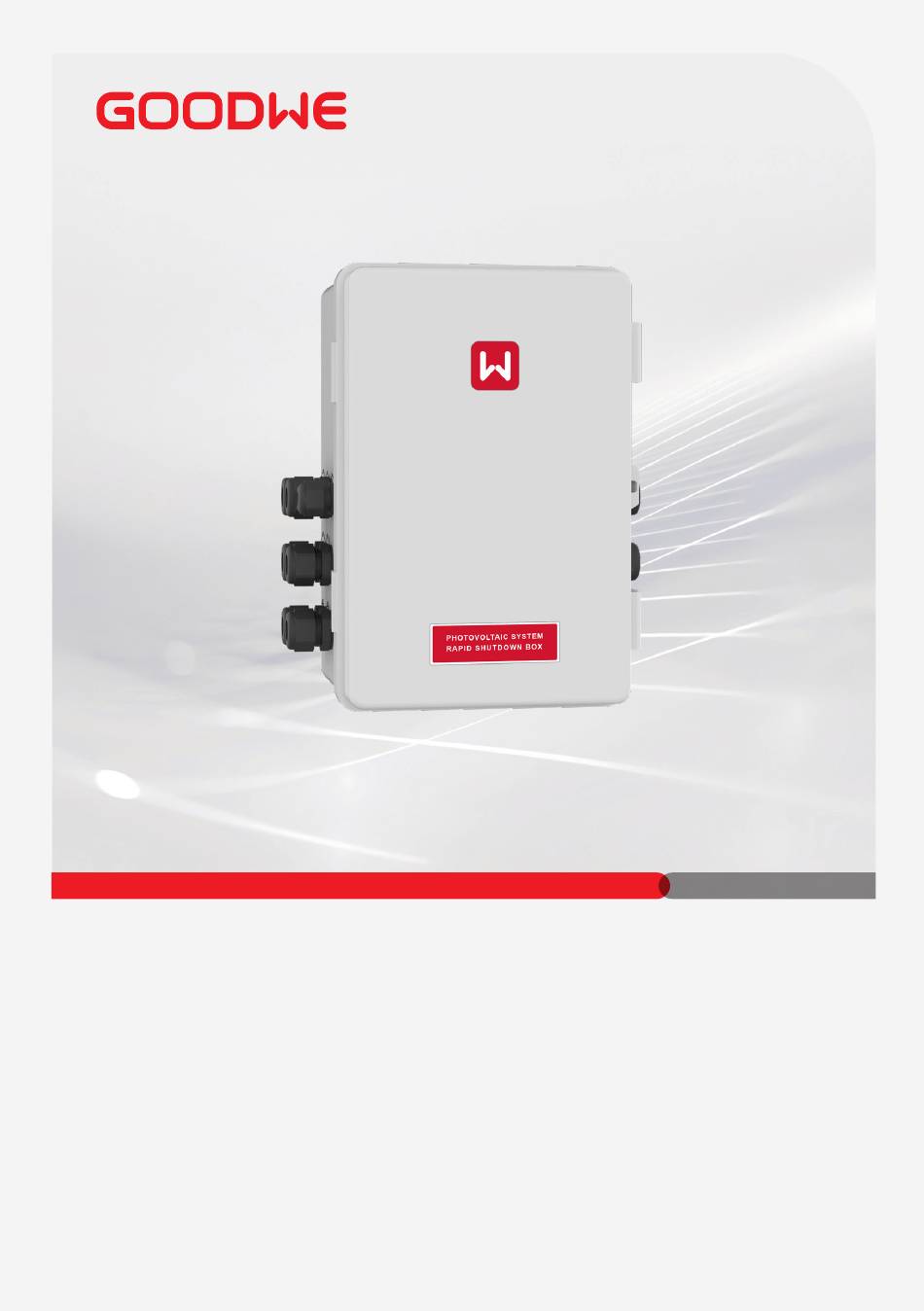

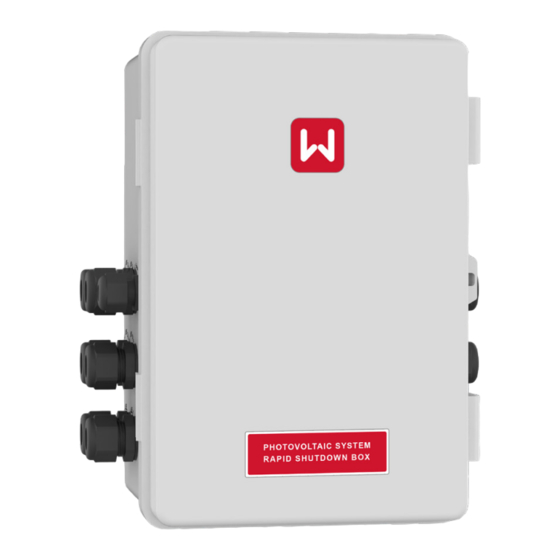

- Page 1 Quick Installation Guide Photovoltaic (PV) Rapid Shutdown Equipment (GTP-F2L-20 GTP-F2M-20) V1.1-2024-04-30...
-
Page 2: Safety Disclaimer
• To avoid interfering the rapid shutdown function, do not install transmitters from other manufacturers to the PV cable during the use of the device. • It is recommended to use the corresponding GoodWe rapid shutdown device. • Power on the the rapid shutdown receiver before the transmitter. - Page 3 Quick Installation Guide V1.1-2024-04-30 Technical Parameters Technical Data GTP-F2L-20 GTP-F2M-20 Main Electrical Data Power Supply Input Voltage 85~264 180~550 (Vac) Transmitter Input Voltage (Vdc) Transmitter Input Current (DC) Communication SunSpec PLC Core Data Number of Core 150A Core×2 150A Core×2 Max.
- Page 4 Quick Installation Guide V1.1-2024-04-30 Product Introduction Function Description The receiver and transmitter can work together to shutdown the PV system rapidly. The transmitter keeps sending signal to the receiver, with which the receiver controls the output of the PV module. In case of an emergency, power off the transmitter to shut down PV system. Parts Power supply Transmitter...
- Page 5 Quick Installation Guide V1.1-2024-04-30 Wiring System Transmitter Initiator Grid Inverter PV modules and rapid shutdown receiver RSD20NET0001 Power cable NOTICE • Pass the negative cable through the core is recommended. Do not pass the positive cable and the negative cable through the same core at the same time. •...
- Page 6 Power Cable 6-7mm GTP-F2M-20 PE L2 L1 0.2N·m Cu, 0.2-1.3mm RSD20ELC0001 NOTICE • The grounding cable is only for GTP-F2M-20. • GoodWe power adapters are recommended. The manufacturer shall not be liable for device damage if other power adapters are used.
-
Page 7: 05 Troubleshooting
Quick Installation Guide V1.1-2024-04-30 PV Cable NOTICE • Remove the rubber plug inside the waterproof gland if more than 16 PV cables are used. After removing the rubber plug, at least 3 PV cables are allowed for a single gland. •... - Page 8 Official Website GoodWe Technologies Co., Ltd. No. 90 Zijin Rd., New District, Suzhou, 215011, China www.goodwe.com Local Contacts service@goodwe.com...
