Mercia Garden Products 0644CVN E0303HGD D2SW-V2 Manual

44mm 3m x 3m curved roof log cabin
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 0644CVN E0303HGD D2SW-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 0644CVN E0303HGD D2SW-V2

Summary of Contents for Mercia Garden Products 0644CVN E0303HGD D2SW-V2

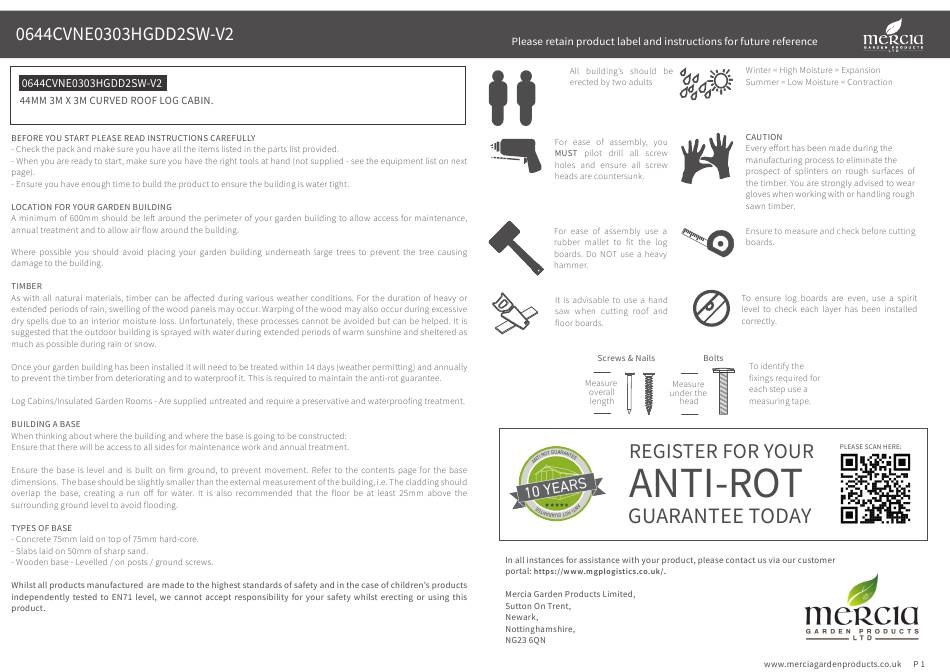

  • Page 1 2mm Drill bit...

  • Page 2: Any Questions

    PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
  • Page 3 Tip: Labelling your parts, using a pencil and masking tape, Before assembly PLEASE SCAN HERE: ANY QUESTIONS? please make sure you have a may help you to identify them easier when you need them. suitable base ready to erect your Scan code building...
  • Page 4 Gable Contents: Fixing Kit Contents: Floor Bearer - 44x58x2814mm QTY 2 Gable A QTY 1 F4458-2814mm-PT AI-0644CV3-G-V2 Floor Bearer - 44x58x2698mm QTY 10 F4458-2698mm-PT Gable B QTY 1 AI-0644CV3-G-V2 Purlin - 45x120x3000mm QTY 5 F45120-A-3000mm Gable C QTY 1 Roof Board - 16x121x3496mm QTY 29 AI-0644CV3-G-V2 MB16-3496mm Floor Board - 16x121x2722mm QTY 26...
  • Page 5 Door Contents: Window Contents: Window QTY 2 Window Frame QTY 2 AI-06LOGDGSW702X1264-V1 AI-0644DGWF808X1417-V1 Master Door QTY 1 Secondary Door QTY 1 (Morticed for lock) AI-06LOGDGSD750X1900-V4 AI-06LOGDGMD750X1900-V4 Door Frame Left Upright - 71x70x2065mm QTY 1 Rain Guard - 28x44x710mm QTY 2 AI-0644LOGDUFL-V4 RG2844-710mm Door Frame Right Upright - 71x70x2065mm QTY 1...
  • Page 6 Screw Pack. Step 1 Parts Needed - No. 21 QTY 2 There may be extra screws present in the pack. No. 22 QTY 2 90mm Bolt Set x 16 40mm Screw x 465 Lay the bearers (No. 21 & 22) onto a rm and level base (free from areas where standing water can collect) ensuring the bearers are at and level and the ends are ush, as shown.
  • Page 7 Step 2 Step 3 Parts Needed - No. 22 QTY 8 Parts Needed - No. 1 QTY 2 No. 2 QTY 2 Following the same method shown in the previous step, arrange the remaining bearers (No. 22) inside the Place the starter boards (No. 1) on to the front and back of the assembled bearers and lightly position the rst assembled frame, ensuring each piece is ush and level.
  • Page 8 Step 4 Step 5 Parts Needed - No. 2 QTY 17 Parts Needed - No. 37 QTY 1 No. 3 QTY 6 No. 38 QTY 1 No. 6 QTY 6 No. 39 QTY 1 No. 7 QTY 1 No. 40 QTY 1 No.
  • Page 9 Step 6 Parts Needed - No. 35 QTY 1 No. 36 QTY 1 No. 43 QTY 6 The Adjustable Door Hinge (No. 43) comes in three parts. Secondary Door Fasten parts No. 43a and 43b of the Adjustable Door Hinge together by screwing part 43a into 43b, as Master Door shown in the illustration.
  • Page 10 Step 7 Step 8 To adjust and align your doors: Once you have laid 6 log boards (o of the starter board) up the door section, slide the assembled door frame over the boards, ensuring to rest the frame on top of the starter board. If 1.
  • Page 11 Step 9 Parts Needed - No. 2 QTY 12 No. 3 QTY 12 No. 4 QTY 6 No. 7 QTY 6 No. 8 QTY 6 Following the method shown in the illustration, lay the next 6 boards (No. 2, 3, 4, 7 & 8) onto the log cabin to create your second level.
  • Page 12 Step 10 Parts Needed - No. 34 QTY 4 No. 48 QTY 2 No. 50 QTY 2 No. 52 QTY 4 Open the hinges (No.50) following the directional arrow given on the top of the hinge. Lay the assembled window frame (No. 48) on a at and level surface. Please note: The window can be hinged to open on either the left or the right, depending on where you position your hinges.
  • Page 13 Step 11 Step 12 Parts Needed - No. 47 QTY 2 Parts Needed - No. 48 QTY 2 With the hinges (No. 50) open in the frame, locate the Window (No. 47) onto the bottom hinge, Once you have laid 6 log boards up the window sections, slide the assembled Window frames ensuring to position both the top and bottom hinge into the groove in the window, as shown.
  • Page 14 Doors on the Front Doors on the Side Step 14 Step 13 Parts Needed - No. 12 QTY 1 Parts Needed - No. 2 QTY 11 No. 17 QTY 1 No. 3 QTY 12 No. 32 QTY 4 No. 4 QTY 6 No.
  • Page 15 Step 15 Step 16 Parts Needed - No. 2 QTY 3 No. 14 QTY 1 Parts Needed - No. 9 QTY 1 No. 5 QTY 1 No. 16 QTY 1 No. 10 QTY 1 No. 11 QTY 1 No. 17 QTY 1 No.
  • Page 16 Step 17 Step 18 Parts needed - No. 23 QTY 5 Parts needed - No. 26 QTY 1 Align the Purlins (No.23) into the cut out notches on the Gables, ensuring they interlock. Locate the Front Eaves Frame (No.26) between the top most Gable boards at the front of the building, as shown.
  • Page 17 Step 19 Parts needed - No. 24 QTY 29 No. 34 QTY 5 Using a straight edge and a pencil, measure 76mm from the tongue edge of one Roof board (No.24) and mark onto the board. Cut along the pencil mark, ensuring that the 76mm side has the tongue remaining and remove the excess.
  • Page 18 Step 20 Step 21 Parts Needed - No. 27 QTY 1 Parts Needed - No. 47 QTY 2 Ensuring the roof boards are ush at the front and back of the building, locate the Back Eaves Frame (No.27) Once the Roof is secured, open the window hinges and re-position the Window (No. 47) onto the hinges (as to the underside of the roof boards at the back of the building.
  • Page 19 Step 22 Step 23 Parts Needed - No. 51 QTY 2 Lift each Door onto the already existing hooks on the door frame, ensuring the hook and bands connect. With the window (No.47) shut tight, from the inside locate the Window Handle (No.51) onto the window and the window casement pin onto the inside of the window frame, as shown.
  • Page 20 Step 24 Step 25 Parts Needed - No. 45 QTY 1 Parts Needed - No. 44 QTY 1 Open the Master Door (No. 35) and locate the Cylinder Lock (No. 45) into the lock shaped hole From the Handle set (No. 44) position the Metal bar through the central lock and connect one handle onto in the Central Lock.
  • Page 21 Step 27 Step 26 Parts Needed - No. 25 QTY 26 Parts Needed - No. 41 QTY 1 No. 46 QTY 2 Place the rst oor board (No. 25) inside the building ush to the log board on one side. Continue adding the oor boards (internally) making sure to interlock each individual board.
  • Page 22 Step 28 Step 29 Parts needed - No. 30 QTY 5 Parts needed - No. 30 QTY 5 Once the oor has been laid, arrange the closure trim (No. 30) around the outside edge of the oor Inside the building place the closure trim (No. 30) against the boarding and align with the roof as shown in (internally), measure and cut down accordingly to best match the internal space.
  • Page 23 Step 31 Step 30 Parts needed - No. 28 QTY 2 Parts needed - No. 33 Locate the Roof Trims (No. 28) on the underside of the Roof at the sides, ensuring the trim is ush to the end Cut the felt (No. 33) into four strips measuring 3100mm (L) X 1000mm (W) and lay onto the roof in the order of the purlins.
  • Page 24 Step 33 Step 32 Parts needed - No. 31 QTY 8 Parts Needed - No. 29 QTY 4 Arrange the storm braces (No.31) around the building (internally), placing two storm braces per wall. Locate the Fascias (No. 29) to the front and back of the log cabin, making sure they are aligned centrally to the building (ensuring to trap the felt in between the fascias) and secure in place using 3x40mm screws per fascia, *Ensure the storm braces are secured at the highest point possible on each side.
  • Page 25 Step 34 Step 35 Parts Needed - No. 42 QTY 1 No. 49 QTY 2 Once constructed, apply a preserving and a waterproo ng treatment to your garden building as soon as possible. This will help to protect your building and prevent decay. Attach the Rain Guards (No.
