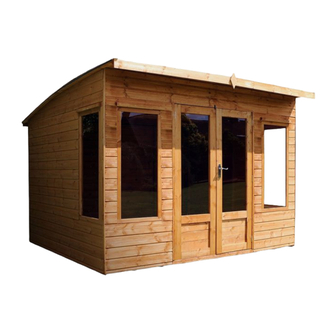

Mercia Garden Products 03HEL1008DDFW-V2 Instructions Manual

03HEL1008DDFW-V2
For domestic and family use only
Retain Instructions for future reference
Before
assembly make sure you
have a suitable base
ready to erect your
building
Dimensions
Length = 2416mm
Width = 2436mm
Height = 2124mm
We strongly recommend pre drilling
holes before xing screws.

BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY

- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand
(not supplied) including a Phillips screwdriver, Stanley knife, wood saw,
step ladder and drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be a ected during various weather
conditions. For the duration of heavy or extended periods of rain, swelling of the
wood panels may occur. Warping of the wood may also occur during excessive
dry spells due to an interior moisture loss. Unfortunately, these processes cannot
be avoided but can be helped. It is suggested that the outdoor building is
sprayed with water during extended periods of warm sunshine and sheltered as
much as possible during rain or snow.
Our buildings are delivered pre-treated with a water based timber treatment
however this only helps to protect during transit of your garden item. To
validate your guarantee and for better protection against weathering it is
ESSENTIAL that you treat the garden building with a wood preserver within 3
months of assembly. This will need to be re-applied annually to ensure longevity
of your building. Care must be taken when constructing the garden building
that it is not touching the ground and is on a suitable base.

BUILDING A BASE

When thinking about where the building and base is going to be constructed: Ensure that there will be access to all sides for maintenance work and
annual treatment.

TYPES OF BASE

- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base dimensions, The base should be slightly
smaller than the external measurement of the building, i.e. The cladding should overlap the base, creating a run o for water. It is also recommended
that the oor be at least 25mm above the surrounding ground level to avoid ooding.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens products independently tested to EN71 level, we
cannot accept responsibility for your safety whilst erecting or using this product.
x2
This building should be erected by
two people.
For ease of assembly, it is advisable to
pilot drill all screw holes and ensure
all screw heads are countersunk.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
For Assistance Please
Contact Customer Care on
01636 880514

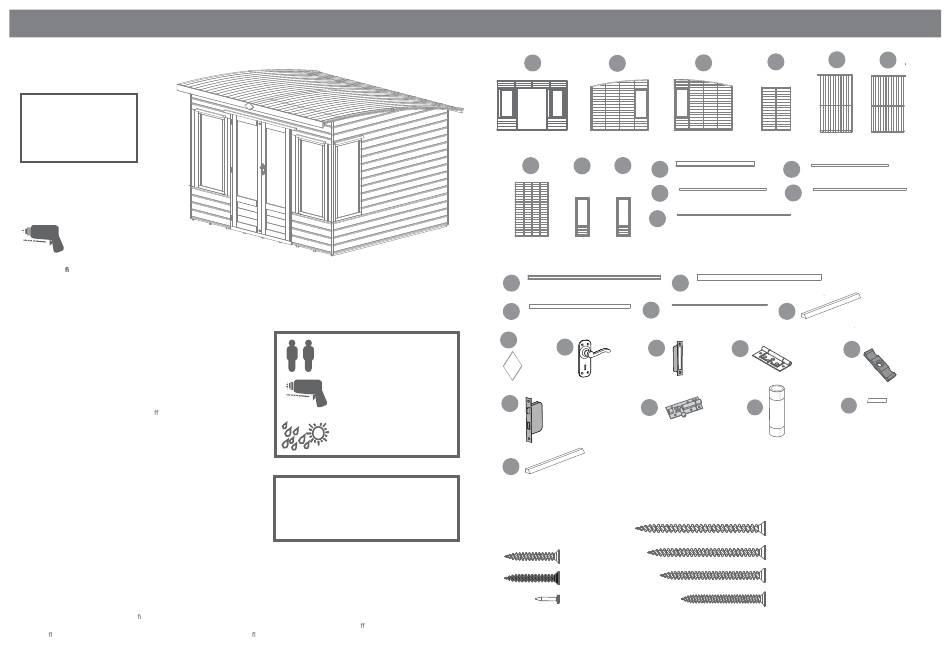

1
2
Door panel
Window
Gable R
7 8 9
10
2x Front Fascia 1650mm
12
4x Top Roof Trim 1510mm
14
2x Cover Trim 2059mm
Back Slave Master
Floor
Door Door
QTY 2
15 16
Roof Support 2830mm QTY 3
18
17
2x Door Beading 1711mm
Door Bar 1705mm
20
21
22
Finial
Door Handle
QTY 2
25
Mortice Lock
26
Barrel Bolt
QTY 2
29
Lrg Rain Guard - 1472mm
Nail Bag
30mm Screw x125
30mm Black Screw x2
Felt Tacks x185
5
4
3
Plain Side
Window
Back Roof
QTY 2
Gable L
Left
11
4x Bottom Roof Trim 1455mm
13
2x Cover Trim 1783mm
2x Roof End 2960mm
19
x4 Rain Guard 580mm
23 Flush Hinge
Key Plate 24
QTY 6
28
27
Felt
Roof Block
QTY 6
80mm Screw x6
60mm Screw x50
50mm Screw x36
40mm Screw x100
6
Back Roof
Right
Turn Button
QTY 2
