Page 2: Safety Warnings

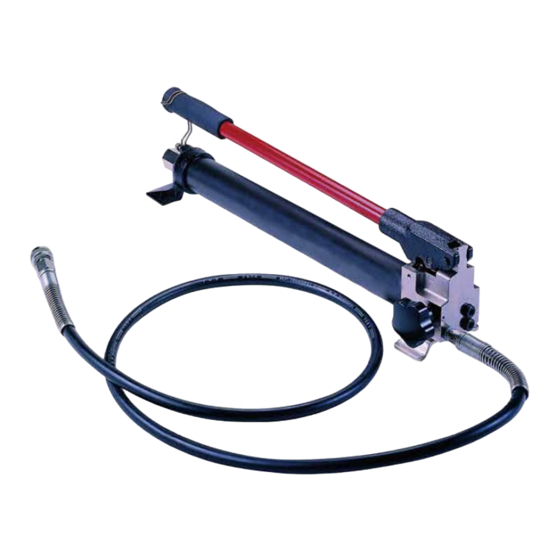

Hydraulic Pumps Safety Warnings Carefully read ALL warnings before operating this machine WARNING: DO NOT attempt to disassemble or repair this product. Doing so will violate the terms of the warranty DO NOT exceed equipment ratings by adjusting the relief valve to over 700 bar (10,000 psi) pressure WARNING: Release the hydraulic pressure from the... -
Page 3: Table Of Contents
Hydraulic Pumps Table of Contents ............. 2 Safety Warnings ........... 3 Table of Contents ..........4 Product Description ..........5 Safety Instructions .......... 6 Operating Instructions ........7 Oil-changing Instructions ......8 Hydraulic Pressure Inspection ............9 Maintenance ..........10 Trouble–Shooting ........ -
Page 5: Safety Instructions
Hydraulic Pumps Safety Instructions Follow ALL instructions to ensure safety AFETY SE AND 1. Keep the area around the equip- 1. Do not use the pump if there are ment clean and free of obstruc- any abnormalities or damage to tions any of its components. -
Page 7: Oil-Changing Instructions
Hydraulic Pumps Oil changing Instructions Follow this procedure to complete a pressure test: 1. Make sure the pressure in the pump is released completely. Detach the hydraulic hose. 2. Loosen the valve knob (#35) and hexagon bolt (#13). 3. Loosen the set screw (#56) and remove the base (#10). -
Page 8: Hydraulic Pressure Inspection
Hydraulic Pumps Hydraulic Pressure Inspection Follow this procedure to complete a pressure test: 1. Connect the pump to the pressure gauge and tighten the couplers to avoid any oil leakage. 2. Turn the release valve knob clockwise until it is fully closed. Proceed with the pressure test. -
Page 9: Maintenance
Hydraulic Pumps Maintenance Follow these tips to ensure long product life: • Routine renewal of pump oil is required. Particles mixed in the pump oil is the most common cause of product failure. • Replace the pump oil after the first three months of use, thereafter, once every year. -
Page 10: Trouble-Shooting
Hydraulic Pumps Trouble-shooting There is insufficient • A. Check that the couplers are secured properly to operating pressure - prevent restricted oil flow. >700bar/ 10,000psi: • B. Inspect the pump output for possible pressure losses. Do not use your fingers when looking for fluid leaks. - Page 11 Hydraulic Pumps Pump handle can be • A. Hydraulic fluid is leaking past the piston O-Ring. local pushed down slowly Contact your Kudos representatives. without building • B. Cylinder piston assembly is damaged or the pis- pressure: ton seals are leaking. Pump handle action •...
-
Page 12: Diagram Of Components
Hydraulic Pumps Parts Guide KuDos industrial Inc. USA KuDos Mechanical... -
Page 13: Table Of Components
Hydraulic Pumps Part Q’ty Part Q’ty Cylinder Body Valve Screw Compression Spring Crescent Valve Knob Hinge Pin Hinge Pin O-Ring Release Lever O-Ring Locating Screw Oil Reservoir O-Ring Tube Set Screw Base Rubber Handle Tube Hook Spring Hexagon Bolt Steel Tube Pumping Piston Ball Dust Seal...
