Summary of Contents for ITC GATE

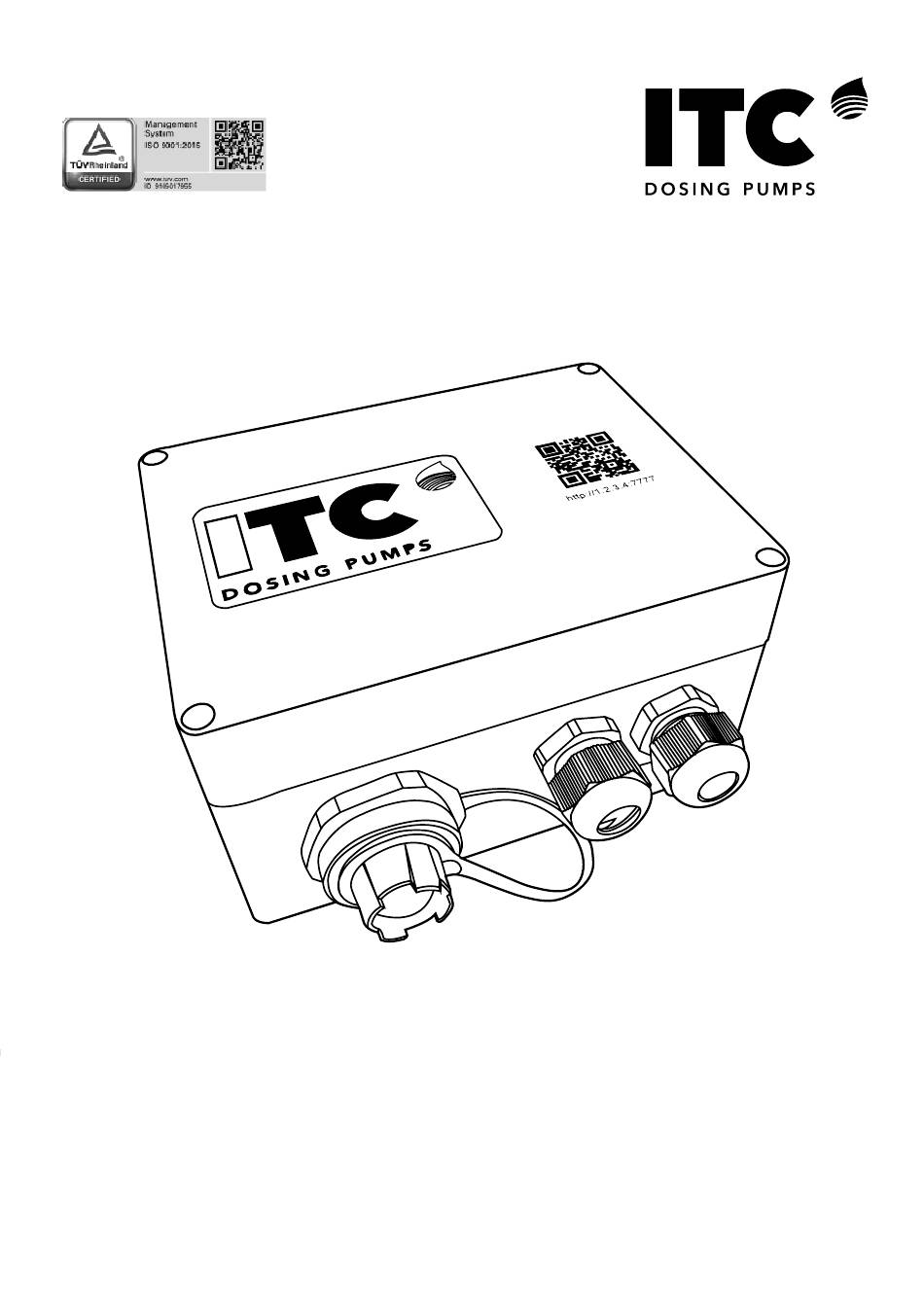

  • Page 1 Company certified by GATE ENGLISH...

  • Page 3: Table Of Contents

    INDEX 1. GENERAL DESCRIPTION 2. TRANSPORTATION AND HANDLING 3. TECHNICAL CHARACTERISTICS 4. OPERATION 4.1 Functional diagram of the GATE 5. INSTALLATION 5.2. Connection between devices 5.2.1 Controller 3000 Series 5.2.2 Dostec AC / Dosmart 5.2.3 WTRTEC 6. START-UP 7. MAINTENANCE 7.1 The unit is greyed out in cloudmanager...

  • Page 4: General Description

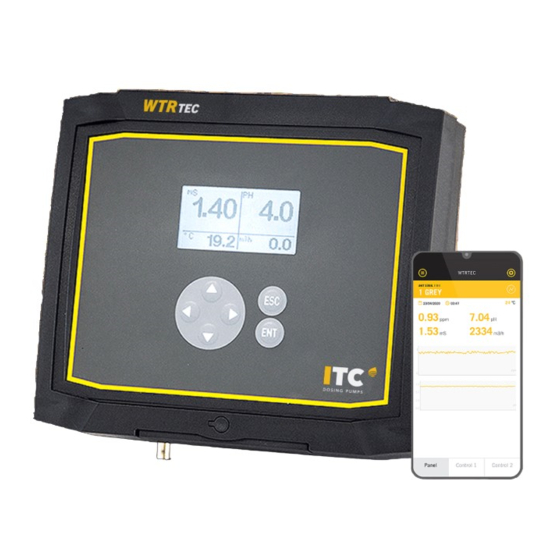

    Product description 1. GENERAL DESCRIPTION The GATE device allows us to monitor, configure and control ITC devices on PCs and mobile devices (smartphone, tablet), locally (via Ethernet and Wi-Fi) and remotely (on the website: www.itc-cloud- manager.com). INSTALLATION DIAGRAMS CONNECTION BETWEEN GATE AND WTR CONNECTION BETWEEN GATE AND DOSMART 2.

  • Page 5: Technical Characteristics

    3.54 AVAILABLE MODELS Code Description 01-001 WC3000 communications module GATE. 01-002 WTRpro communications module GATE. 01-003 Cl420MB sensor communications module GATE. 01-004 Dostec AC communications module GATE. 01-005 TLM communications module GATE. 01-006 communications module GATE. 01-006-IN Built-in WTR communications module GATE.

  • Page 6: Operation

    Router 4G/5G Wi-Fi without Smartphone/Tablet/PC Internet access The GATE allows us to monitor, configure and control ITC devices on PCs and mobile devices (smartphone, tablet), locally (via Ethernet and Wi-Fi) and remotely (on the website: www. itc-cloud-manager.com). NB: Each GATE can only be connected to ONE ITC device.

  • Page 7: Installation

    A place that is protected from water, away from heat sources and direct sunlight should be chosen for its installation. We recommend separating the GATE’s cables from any cables that may generate electrical noise. 5.1. Wiring Reset / pairing button...

  • Page 8: Connection Between Devices

    Installation 5.2. Connection between devices 5.2.1 Controller 3000 Series C3000 GATE BLACK RS485 (01-019) Cable 01-019 included with GATE 01-001. 5.2.2 Dostec AC / Dosmart DOSTEC AC / Dosmart GATE BLACK RS485 (01640) BLACK CONNECTIONS Cable 01640 is an option. Ordered by the metre.

  • Page 9: Wtrtec

    Installation 5.2.3 WTRTEC GATE BLACK RS485 (01640) BLACK CONNECTIONS Cable 01640 is an option. Ordered by the metre.

  • Page 10: Start-Up

    There are two ways to configure the GATE (see ). You will need an internet connection to do it. Via Ethernet - Connect your computer to the GATE via the Ethernet cable - Turn on the GATE 110V-240V 50/60Hz POWER...
  • Page 11 - Then select "Properties". - Search for the option “Internet Protocol version 4 (TCP/IPv4)” and then click on properties. - Configure the Ethernet adapter on the computer with the settings described above. - Go to the GATE’s webpage > http://10.1.1.10:7777...
  • Page 12 Start-up Via Wi-Fi - Connect to the GATE’s Wi-Fi network > "ITC GATE-xxxxxx” with the password "webscada". Where "xxxxxx" > are the 6 digits of the GATE's serial number. 110V-240V 50/60Hz POWER - Go to the GATE’s webpage > http://1.2.3.4:7777...
  • Page 13 Start-up The GATE's webpage - Click on the "CONFIGURATION” icon - Select "Settings" - Configure "SCADA MODE" in the "Network” option...
  • Page 14 Start-up - In "Local LAN Configuration", enter an IP address, NetMask and Default Gateway, according to the available Local Network. - Select "Save" and then "Restart Gate".
  • Page 15 Start-up - Contact your provider to obtain your cloudmanager username and password. - Connect the GATE to the Router via Ethernet (either directly or via a switch), and connect the controller via RS485. Wait for 3 minutes. ºC 21.0 10.5 INTERNET - Visit https://www.itc-cloud-manager.com to view the connected device.

  • Page 16: Maintenance

    5 - 10 minutes. The GATE’s internal Ethernet Contact sat@itc.es cable is damaged. The ITCGATE-xxxx network The GATE’s microSD card is not Replace the microSD card with is not being detected. working properly. another supplied by ITC. Incorrect SCADA MODE SCADA MODE is set to LOCAL.

  • Page 17: The Unit Is Shown In Red In Cloudmanager

    7.3 The unit is shown in red in cloudmanager ERROR CAUSE SOLUTION The GATE is turned off. It is not connected to the power Connect the GATE to the power supply. supply. The error keeps happening The RS485 / Modbus Follow your device’s manual to...

  • Page 19: Eu Declaration Of Conformity

    Polígono Industrial Can Bernades-Subirà 08130 Santa Perpètua de Mogoda Declares that the GATE products identified by their serial number and year of manufacture comply with the Low Voltage Directive 2014/35/EU and the Electromagnetic Compatibility Directive 2014/30/EU, provided that the installation, use and maintenance are performed in accordance with current legislation and the instructions provided in the instruction manual.
  • Page 20 Original manual Ed: 20/12/2022-EN C/ Vallès, 26 Pol. Ind. Can Bernades-Subirà P.O. Box 60 08130 Santa Perpètua de Mogoda BARCELONA Tel. 93 544 30 40 Fax 93 544 31 61 email: itc@itc.es www.itc-dosing-pumps.com...
