Sunricher SR-SB2868K7-CCT Manual

CCT Color RF + 2.4G Remote
Important: Read All Instructions Prior to Installation

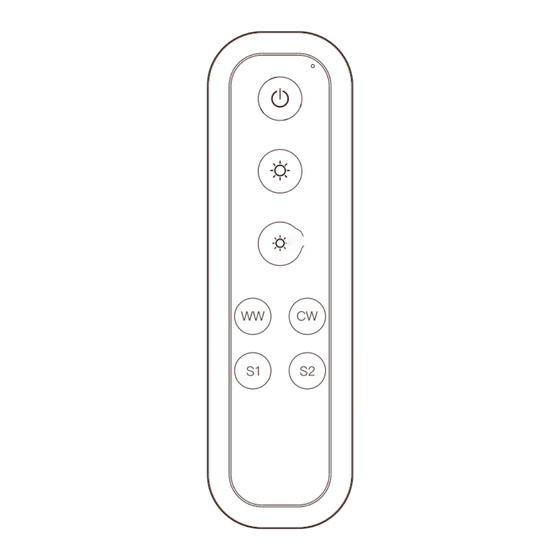

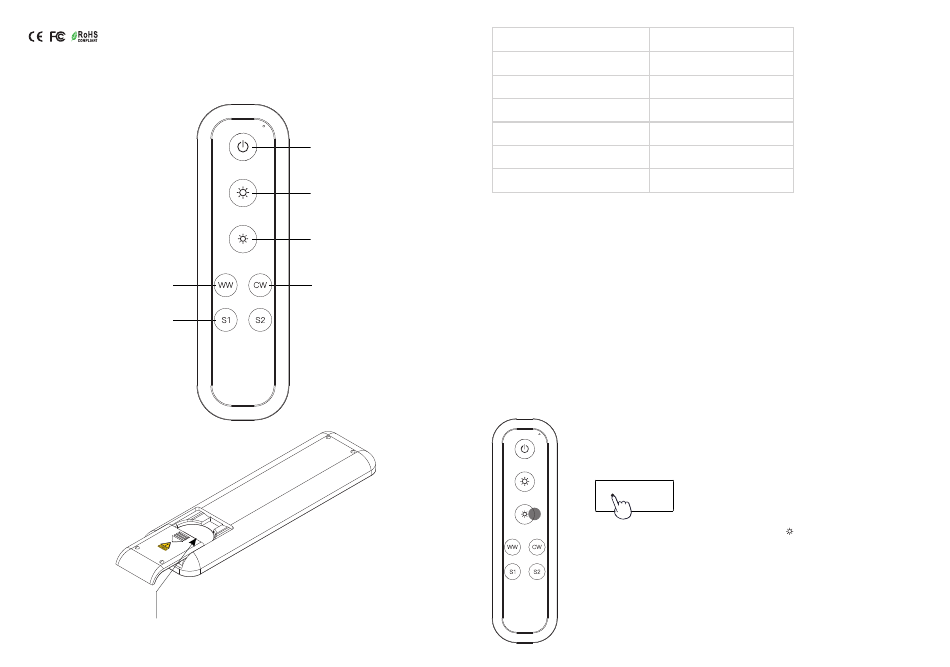

Function introduction
Short press: step color temperature
level down, 10 levels
Long press: decrease color temperature
smoothly
Scene Button(S1, S2)
Short press: recall the scene
Long press: until the indicator flashes
to save a scene
Note: Before the first use, please remove the protective film on the battery.
Short press to switch on/off
Short press: step brightness level up,
10 levels
Long press: dim up smoothly
Short press: step brightness level down,
10 levels
Long press: dim down smoothly
Short press: step color temperature
level up, 10 levels
Long press: increase color temperature
smoothly
Product Data
Protocol
Operation Voltage 3VDC (CR2032 battery)
Transmission Frequency
Transmission Range (free field)
Dimming Range
Dimension
Waterproof Grade
• 2.4G mesh CCT color remote control
• Control 1 zone of receiver
• Easy & quick pairing to the 2.4G mesh receivers by simply pushing the buttons
• Mesh network for further control distance, receivers can transmit signal to each other
• Each remote can control numerous receivers
• Each receiver can be paired to max. 8 remote controls
• The controlled receiver status can be quickly synchronized to the smart APP
• Transmission range between every two neighbor devices up to 30m
• 2.4G low power consumption technology, long battery life
• Enables to bind and control universal CCT color lighting devices
Safety & Warnings
• This device contains button lithium batteries that shall be stored and disposed properly.
• DO NOT expose the device to moisture.
Pair with 2.4G Mesh Receiver
Step 1: Do wiring the receiver according to wiring diagram (please refer
to the instruction of 2.4G mesh receiver that you would like to pair with.
Step 2: Click the prog. button once, or reset power of the controller 3
times continuously to set LED controller into pairing mode.
2.4G Mesh
LED Receiver
Prog.
3
Step 3: Click any other button except zone buttons (e.g.
the receiver flicker once means the receiver is paired with the remote successfully.
2.4G RF
2.4GHz
30m
0.1%-100%
137x40x11.5mm
IP20
),LED lights connected with
