Sunricher SR-SBP2801K4-CCT-E Instruction Manual

RF+Bluetooth CCT Remote Controller
Important: Read All Instructions Prior to Installation
Function introduction
Click to turn on,
Press and hold down to
increase light intensity
Click to turn off,
Press and hold down to
decrease light intensity
19.21 mm
WW button, click to get 100%
warm white+0% cool white,
WW press and hold to increase
warm white and decrease cool
white.
CW button, click to get 100%
cool white+0% warm white,
CW press and hold to increase
cool white and decrease warm
white.

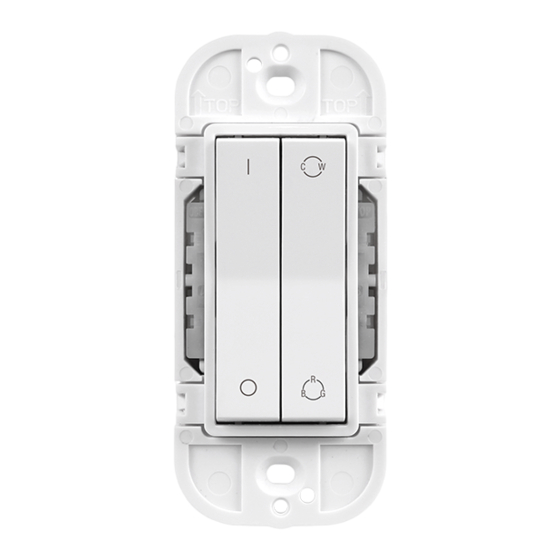

Front side

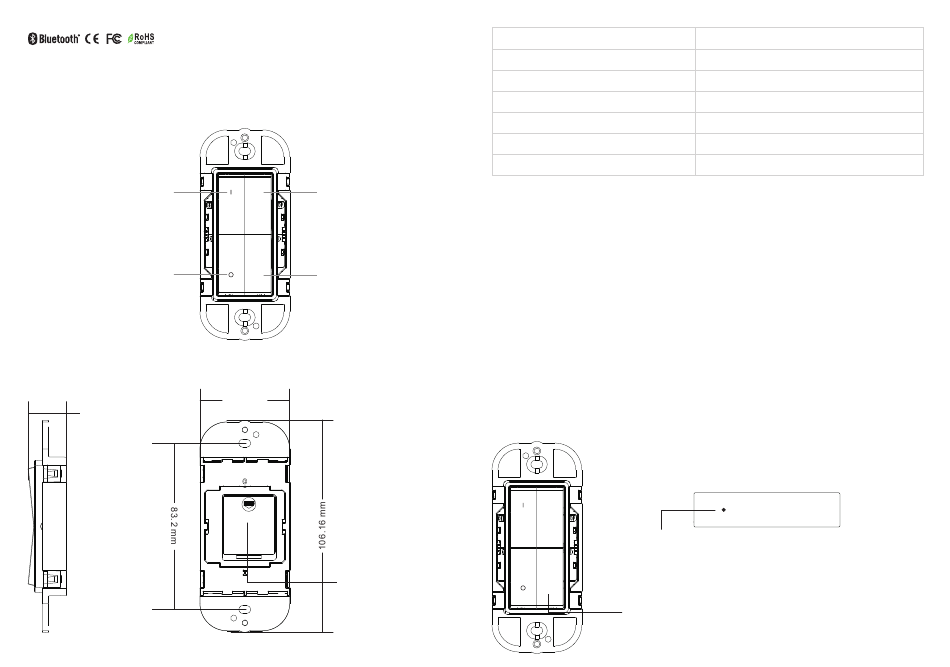

44.9 mm
Battery: CR2430
Before the first use, please open
the battery cover and remove the
protective film
Back side
Product Data
70200023
Protocol
Power Supply
Transmission Frequency
Transmission Range (free field)
Protection Type
Dimming Range
Dimensions
• CCT wall remote based on RF+Bluetooth Mesh
• Battery powered, ultra low power consumption
• Easy & quick pairing to the RF+Bluetooth receivers by simply pushing the buttons
• Enables to control 1 zone of receivers
• Mesh network for further control distance, receivers can transmit signal to each other
• 2.4 GHz global operation
• The controlled receiver status can be quickly synchronized to the smart APP
• Transmission range between every two neighbor devices up to 30m
• Each receiver can be paired to max. 8 remote controls
• Enables to control universal CCT RF+Bluetooth devices
• Standard size, compatible with existing US size frame
Safety & Warnings
• DO NOT expose the device to moisture.
Pair with RF+Bluetooth receiver
WW
CW
RF+Bluetooth
3VDC (1xCR2430 Battery)
2.4GHz
30m
IP20
0.1%-100%
44.9x106.2x19.2mm
Step 1:Do wiring the RF+Bluetooth receiver according to wiring diagram(please refer
to the instruction of RF receiver that you would like to pair with)
RF+Bluetooth LED Receiver
Prog.
Step 2:Click the "Prog. Key" or "Reset" button on RF+Bluetooth receiver (or reset
power of the receiver 3 times continuously if the button is not accessible) to set it into
pairing to RF remote status
Step 3:Click any of the 4 buttons on the remote, e.g. button
LED lights connected with the receiver flicker once means the receiver is paired
to the remote successfully.
Note: one receiver can be paired with max 8 remote controls.
CW
.
