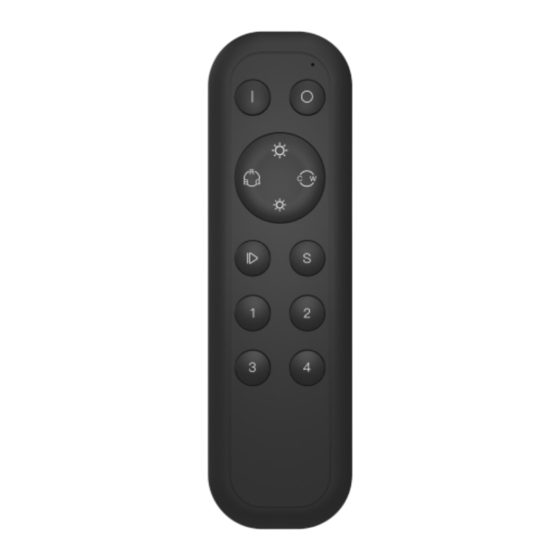

Sunricher SR-SB2868K12-CCT Quick Start Manual

CCT RF + 2.4G Remote
Important: Read All Instructions Prior to Installation

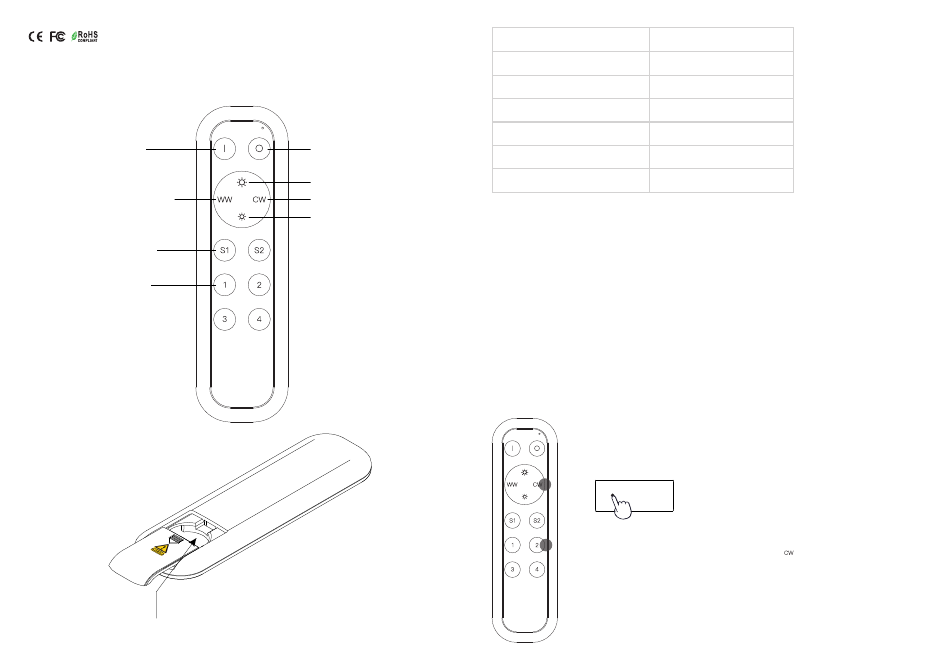

Function introduction
Short press to open the selected
Group
Long press to decrease color temperture
Scene Button(S1, S2): Long press
until the indicator flashes to save
a scene, short press to recall the saved
Group Button(1,2,3,4): Short press
to choose a group, long press to
enter Touchlink mode
Note: Before the first use, please remove the protective film on the battery.
Short press to close the
selected Group
Long press to increase brightness
Long press to increase color temperture
Long press to decrease brightness
Product Data
Protocol
Operation Voltage 3VDC (CR2032 battery)
Transmission Frequency
Transmission Range (free field)
Dimming Range
Dimension
Waterproof Grade
• 2.4G mesh CCT remote control
• Enables to control 4 zones of receivers
• Easy & quick pairing to the 2.4G mesh receivers by simply pushing the buttons
• Mesh network for further control distance, receivers can transmit signal to each other
• Each remote can control numerous receivers
• Each receiver can be paired to max. 8 remote controls
• The controlled receiver status can be quickly synchronized to the smart APP
• Transmission range between every two neighbor devices up to 30m
• 2.4G low power consumption technology, long battery life
• Enables to bind and control universal CCT lighting devices
Safety & Warnings
• This device contains button lithium batteries that shall be stored and disposed properly.
• DO NOT expose the device to moisture.
Pair with 2.4G Mesh Receiver
Step 1: Do wiring the receiver according to wiring diagram (please refer
to the instruction of 2.4G mesh receiver that you would like to pair with.
Step 2: Click the prog. button once, or reset power of the controller 3
times continuously to set LED controller into pairing mode.
4
2.4G Mesh
LED Receiver
Prog.
Step 3: Click a zone button to select a zone (e.g. zone 2).
3
Step 4: Click any other button except zone buttons (e.g.
the receiver flicker once means the receiver is paired with zone 2 successfully.
2.4G RF
2.4GHz
30m
0.1%-100%
137x40x11.5mm
IP20
),LED lights connected with
