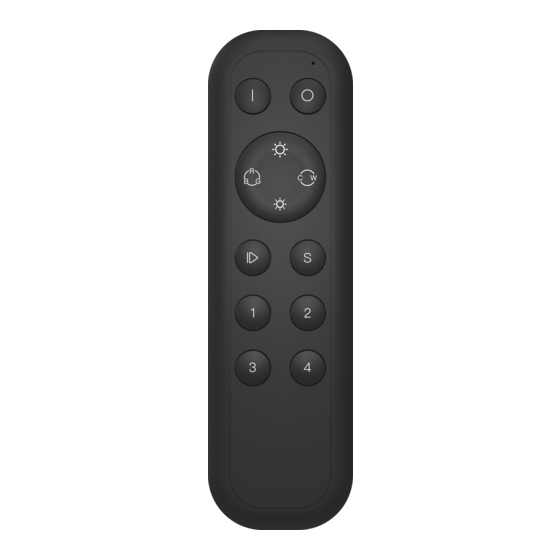

Sunricher SR-SB2868K12-5C Manual

RGB+CCT Color RF+2.4G Remote
Important: Read All Instructions Prior to Installation

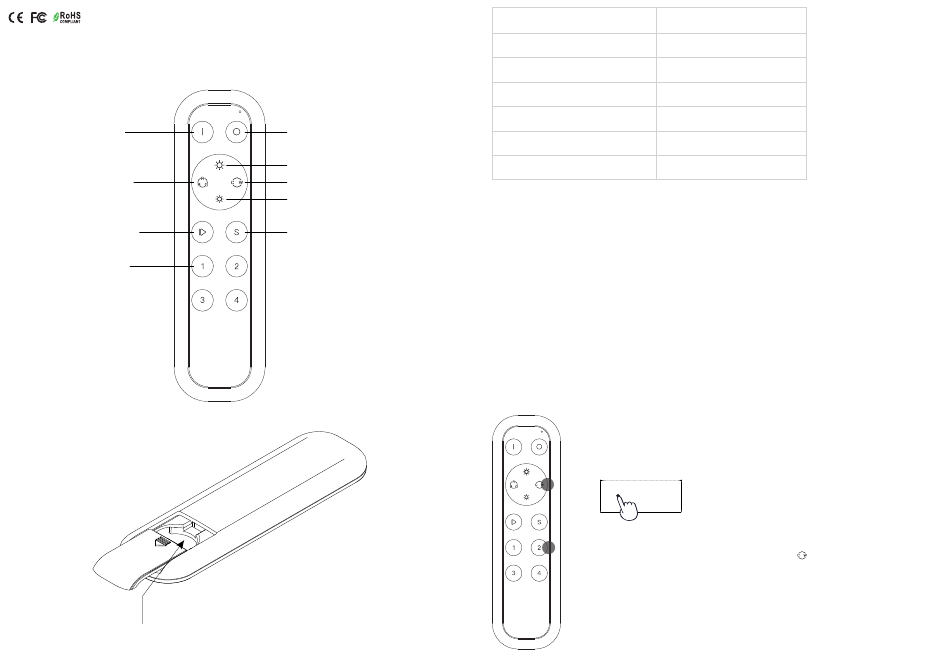

Function introduction
Short press to open the selected
Group
Short press to recall 7 built-in colors,
Long press to change RGB color smoothly
1 RGB color changing mode, click to
play/pause the mode, press and hold
down to speed up/down the mode
Group Button(1,2,3,4): Short press
to choose a group, long press to
enter Touchlink mode
Note: Before the first use, please remove the protective film on the battery.
Short press to close the
selected Group
Long press to increase brightness
Short press to recall 6 built-in color temperatures,
Long press to change color temperature smoothly
Long press to decrease brightness
Scene button, press and hold down to
save a scene, click to recall the saved
Product Data
Protocol
Operation Voltage
Transmission Frequency
Transmission Range (free field)
Dimming Range
Dimension
Waterproof Grade
• 2.4G mesh DIM, CCT, RGB 3 in 1 remote control
• Enables to control 4 zones of receivers
• Easy & quick pairing to the 2.4G mesh receivers by simply pushing the buttons
• Mesh network for further control distance, receivers can transmit signal to each other
• Each remote can control numerous receivers
• Each receiver can be paired to max. 8 remote controls
• The controlled receiver status can be quickly synchronized to the smart APP
• Transmission range between every two neighbor devices up to 30m
• 2.4G low power consumption technology, long battery life
• Enables to bind and control universal DIM, CCT, RGB, RGBW and RGB+CCT lighting devices
Safety & Warnings
• This device contains button lithium batteries that shall be stored and disposed properly.
• DO NOT expose the device to moisture.
Pair with 2.4G Mesh Receiver
Step 1: Do wiring the receiver according to wiring diagram (please refer
to the instruction of 2.4G mesh receiver that you would like to pair with.
Step 2: Click the prog. button once, or reset power of the controller 3
times continuously to set LED controller into pairing mode.
4
2.4G Mesh
LED Receiver
Prog.
Step 3: Click a zone button to select a zone (e.g. zone 2).
3
Step 4: Click any other button except zone buttons (e.g.
the receiver flicker once means the receiver is paired with zone 2 successfully.
2.4G RF
3VDC (CR2032 battery)
2.4GHz
30m
0.1%-100%
137x40x11.5mm
IP20
),LED lights connected with
