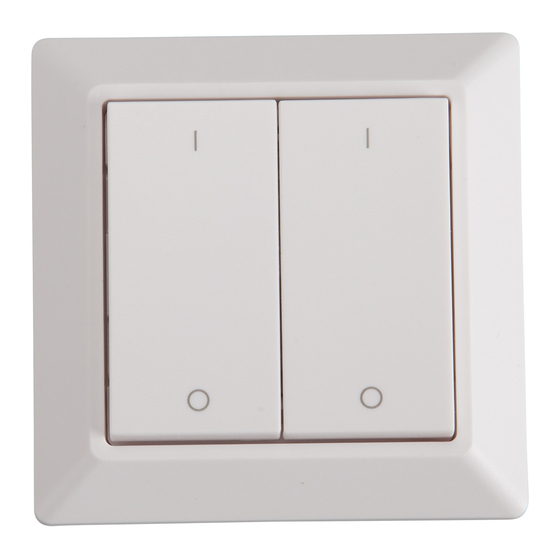

Sunricher SR-SBP2801K4-DIM-G2-E Quick Start Manual

RF+Bluetooth DIM Remote Controller
Important: Read All Instructions Prior to Installation
Function introduction
Click to turn on zone 1,
Press and hold down to
increase light intensity
Click to turn off zone 1,
Press and hold down to
decrease light intensity
With Plastic Frame
14.7 mm
The remote control can be fixed on the wall with 3M glue or screw.
Click to turn on zone 2, Press
and hold down to increase
light intensity
Click to turn off zone 2, Press
and hold down to increase
light intensity
Front side
80.5 mm
Back side
70200033 With Glass Frame
10.10 mm
Product Data
Protocol
Power Supply
Transmission Frequency
Transmission Range (free field)
Protection Type
Dimming Range
Dimensions
• DIM wall remote based on RF+Bluetooth Mesh
• Battery powered, ultra low power consumption
• Easy & quick pairing to the RF+Bluetooth receivers by simply pushing the buttons
• Enables to control 2 zones of receivers
• Mesh network for further control distance, receivers can transmit signal to each other
• 2.4 GHz global operation
• The controlled receiver status can be quickly synchronized to the smart APP
• Transmission range between every two neighbor devices up to 30m
• Each receiver can be paired to max. 8 remote controls
• Enables to control universal DIM RF+Bluetooth devices
• Standard size, compatible with existing EU size frame
86mm
The remote control can be fixed on the wall with 3M glue or screw.
RF+Bluetooth
3VDC(1xCR2430 battery)
2.4GHz
0.1%-100%
80.5x80.5x14.7mm / 86x86x14mm
30m
IP20
