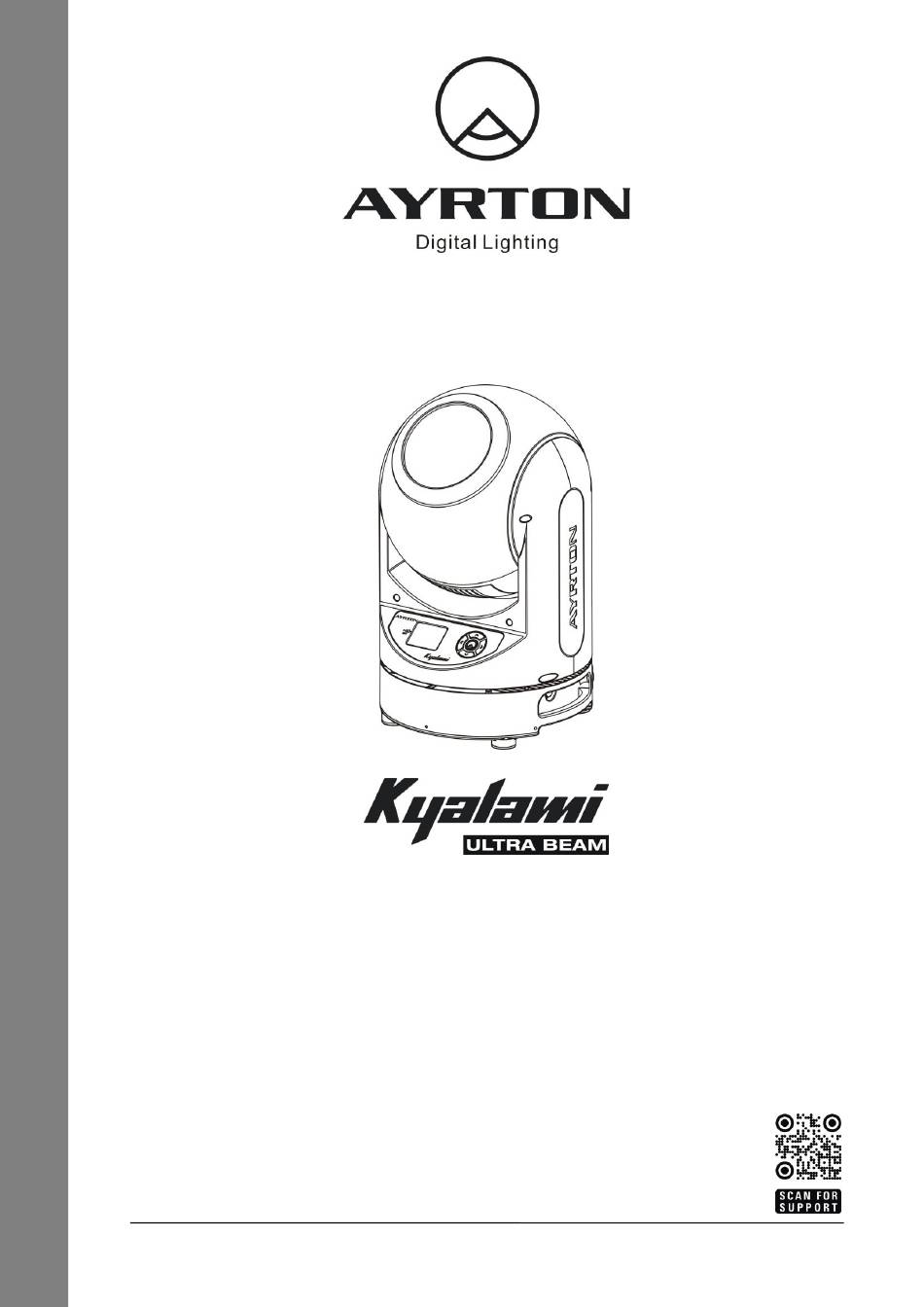

- Page 1 User Information KYALAMI: (EN - version B) www.ayrton.eu...
- Page 2 CONTENTS 1. SAFETY INSTRUCTIONS 2. GETTING STARTED 3. CONTROLS AND FUNCTIONS 4. SPECIFICATIONS Keep This Manual For Future Needs...
- Page 3 1. SAFETY INSTRUCTIONS 1.1. IMPORTANT SAFETY WARNINGS This product has left the factory in perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to read and follow the safety instructions and warning notes written in this user information manual.
- Page 4 Hazard Distance (HD) is the distance from the projector’s nearest point of human access where the beam radiance or irradiance exceeds the applicable exposure limit. The operators shall control the product to prevent human exposure to the luminaire(s) light within the HD.
- Page 5 DANGER CLASS 4 LASER LIGHT WHEN OPEN, AVOID EYE OR SKIN EXPOSURE TO DIRECT OR SCATTERED LIGHT LIGHT COLLIMATION SYSTEM THIS PRODUCT CONTAINS INTERNAL LIGHT COLLIMATION SYSTEM. AVOID INTENSE LIGHT FROM ANY ANGLE. NOT SUITABLE FOR HOUSEHOLD ILLUMINATION NOT FOR RESIDENTIAL USE DISPOSING THIS PRODUCT IS SUPPLIED IN COMPLIANCE WITH EUROPEAN DIRECTIVE 2012/19/EU - WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
- Page 6 -20° C and 0° C, the fixture needs to wait for the heater to increase the internal temperature to be above 0° C before illumination will occur.) 2. GETTING STARTED 2.1 UNPACKING After unpacking, you will find the following items in the package: KYALAMI fixture User Information manual Power Cable ...
- Page 7 2.2 PLACEMENT OF LABELS Please check and read carefully the labels on the fixture before using:...
- Page 8 2.3 FIXTURE OVERVIEW ○ ○ 1 Front Lens 10 Valve ○ ○ 2 Display 11 Power In ○ ○ 3 Left-button 12 Power Out ○ ○ 4 Down-button 13 RJ45 In ○ ○ 5 Center-button 14 RJ45 Out ○ ○ 6 Right-button 15 DMX In ○...
- Page 9 ○ 1 Omega bracket ○ 2 Clamp ○ 3 Safety rope ○ 4 Quick-lock fastener Rigging Drawings The fixtures can be installed by sitting on floor, hanging on truss upside down (on ceiling) or hanging vertically (on wall), as shown on the drawing below: Be sure this fixture is kept at ...
- Page 10 2.5 CONNECTIONS – CONNECTING POWER AND SIGNAL CABLES Power Connection Connect the power cable to the “Power In” socket of the fixture: insert the power cable connector and turn clockwise until it clicks to lock. Connect the power cable plug to the mains: AC100-240V~, 50/60Hz, Power 200W. ...
- Page 11 addresses for each fixture individually. If you set the same address on all devices, all the devices will start to “listen” to the same control signal from the same channel number. In other words, changing the settings of one channel will affect all the fixtures simultaneously. If you set a different address, each unit will start to “listen”...
- Page 12 2.7 NFC When the fixture is powered on, you can use a NFC smartphone installed with the Ayrton NFC App to scan the NFC tag area of the fixture to read some of the information or settings inside the display menu, such as product name, software version, UID, DMX Start Address, Universe, User Mode, Options, Information, etc.
- Page 13 Steps to set blanking zone: Download and install the “Ayrton Fixture Manager” App; After the KYALAMI fixture(s) have been rigged, determine the areas which, where public members are present, are within the Hazard Distance of the fixture(s); Prepare a computer, download and install the “Ayrton Fixture Manager” software into the ...
- Page 14 Blanking Zone Settings (4 points) should be set to value 0 before switching between different Blanking Zone Number. Open the computer software “Ayrton Fixture Manager”, click “Blanking Settings” menu on the left. Select the “Local IP” as above set in the network settings in the computer.
- Page 15 Once both the Blanking Settings have been done, the fixture is ready to be used and control via a DMX console. The operator is not able to remotely (ie: DMX commands from a lighting console) override the Blanking Zone. At the end of each unique use it is incumbent on the owner of the fixture to clear the previous settings on the fixture to factory defaults, thus ensuring that the fixture must be set up to be used with the correct safety settings in the environment in which it is next used.
- Page 16 3.4 Color wheel, DMX chanels 13-14: 3.5 Fixed gobos, DMX chanels 24: 3.6 CMY, DMX chanels 15-20: 3.7 Prisms, DMX chanels 25-30: 3.8 Frosts, DMX chanels 31-32: 4 SPECIFICATIONS POWER SUPPLY • AC100-240V~, 50/60Hz • Power: 200W maximum OPTICS • Beam aperture: 1°...
- Page 17 DIMMER / STROBE • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation • Strobe effect, with speed adjustment from 1 to 25 flashes per second SOFTWARE FEATURES • Local DMX addressing and optional parameters through its built-in LCD control panel •...
- Page 20 2 Rue de Vitruve - 91140 - Villebon-sur-Yvette - France...
