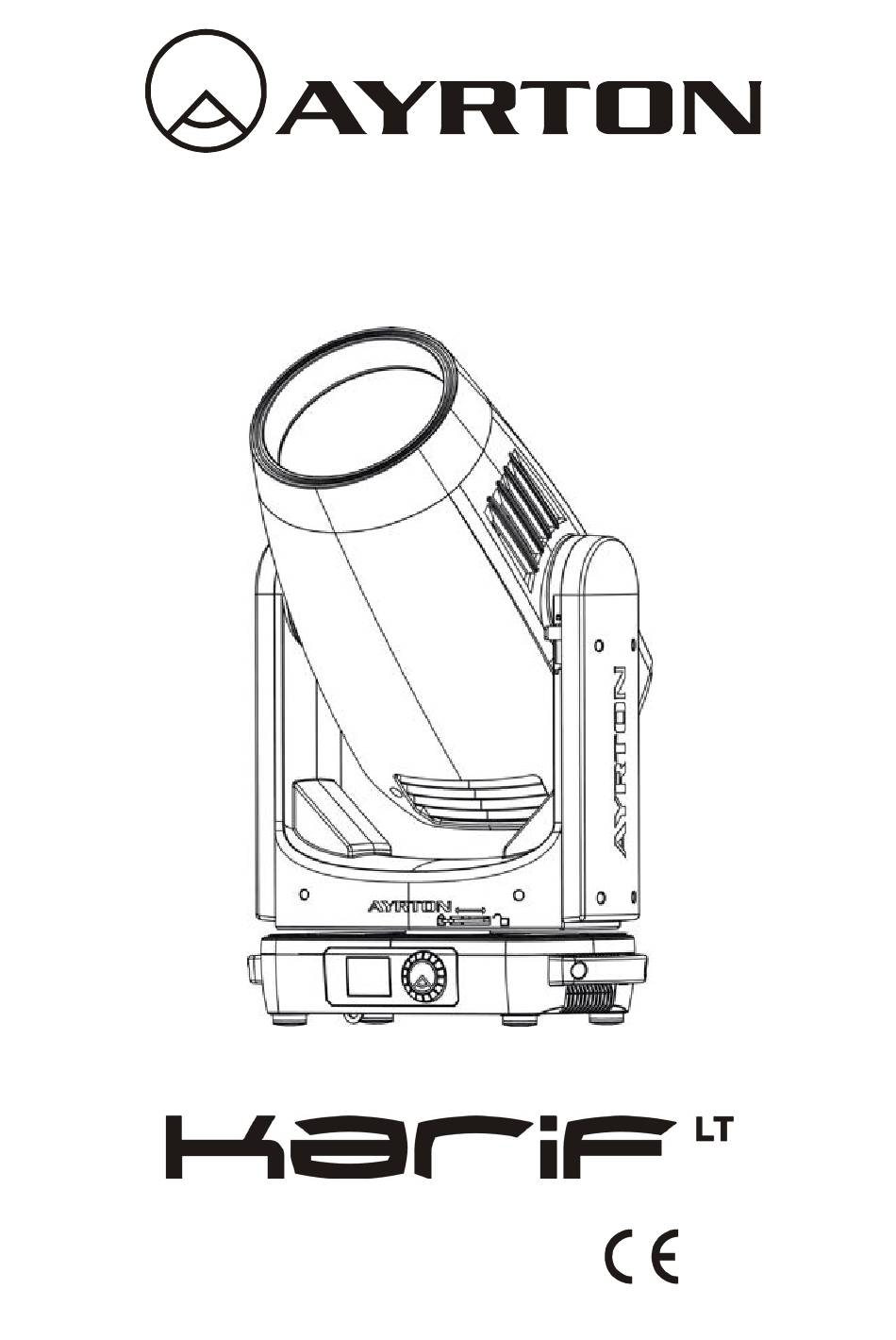

  • Page 1 Manuel d’utilisation KEEP THIS MANUAL FOR FUTURE NEEDS...

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS 2. FEATURES 3. FIXTURE OVERVIEW 4. DIMENSIONAL DRAWINGS 5. INSTALLATION INSTRUCTIONS 6. DMX-512 CONTROL CONNECTION 7. DMX-512 CONNECTION WITH DMX TERMINATOR 8. DEVICE DMX START ADDRESS SELECTION 9. DISPLAY 10. DMX PROTOCOL 11. ERROR MESSAGES 12. CLEANING AND MAINTENANCE...

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS 1.1. IMPORTANT SAFETY WARNING This device has left the factory in perfect condition.In order to maintain this condition and to ensure safe operation it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. In order to install operate and maintain the lighting fixture safely and correctly we suggest that the installation and operation be carried out by qualified technicians and these instructions be carefully followed.
  • Page 4 replaced by the manufacturer or their service agent or a similar qualified person in order to avoid injury. • When the device is not in use or before performing maintenance always disconnect the device from the mains.Only handle the power cord from the plug.Never pull the plug out of a socket by tugging the power cord.

  • Page 5: Features

    2. FEATURES POWER SUPPLY AC100-240V~ 50/60Hz • Max Power Consumption 550W • LIGHT SOURCE LED 290W White LED • Extremely long Life >50,000H • MOVEMENT Pan movement 540 /630 Optional (16 bit) • Tilt movement 270 (16 bit) • Advanced moving system fast stable and quite auto x-y repositioning •...
  • Page 6 WEIGHT Net weight: 24 kg DMX CHANNELCHART...

  • Page 7: Fixture Overview

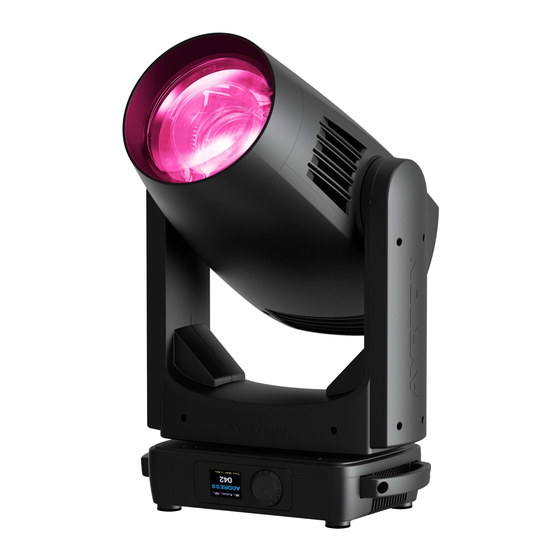

    3. FIXTURE OVERVIEW 1) LED Assembly 2) Tilt Lock 3) Display 4) Jog wheel 5) Pan Lock 6) Handle 7) DMX Out 8) DMX In 9) Power Out 10) Power In...

  • Page 8: Dimensional Drawings

    4. DIMENSIONAL DRAWINGS 4.1. Fixture Dimension...
  • Page 9 4.2. Gobo Filter Dimension 4.3. Color Filter Dimension...

  • Page 11: Installation Instructions

    5. INSTALLATION INSTRUCTIONS 5.1. Rigging the device CAUTION! PLEASE CONSIDER THE RESPECTIVE NATIONAL NORMS DURINGINSTALLATION. THE INSTALLATION MUST ONLY BE CARRIED OUT BY A QUALIFIED PERSON. • The applicable temperature for the lighting is between -10°C to 45°C. Do not use the lighting under or above the temperature.
  • Page 12 5.2. Rigging using the omega brackets • Fix the clamp to the bracket by tightening the M12 nut and boltto the bracket through the Ф13 hole in the middle of the bracket. • Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom of the device.Tighten the quick-lock fasteners fully clockwise.
  • Page 13 5.3. RIGGING DRAWINGS • Be sure this fixture is kept at least 0.1m away from any flammable materials (decoration etc.). • Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Important Overhead rigging requires extensive experience including (but not limited to)

  • Page 14: Dmx-512 Control Connection

    6. DMX-512 CONTROL CONNECTION Connect the provided male side of the XLR cable to the femaleXLR output of your controller and the female side of the XLR cable to the male XLR input of the device.You can connect multipledevices together in a serial fashion.The cable needed should be two core screened cable with XLR input and output connectors.Please refer to the diagram below.

  • Page 15: Device Dmx Start Address Selection

    8. DEVICE DMX START ADDRESS SELECTION All fixtures should be given a DMX starting address when using a DMX signal so that the correct fixture responds to the correct control signals.This digital starting address is the channel number from which the fixture starts to listen to the digital control information sent out from the DMX controller.The allocation of this starting address is achieved by setting the correct address number on the display located on the base of the device.
  • Page 16 Default settings shaded Address Set Dmx Address A001~AXXX DMX address setting Stand Mode Basic Mode Extend Mode User’s mode to change channel User Mode User Mode A numbers User Mode B User Mode C Max channel Edit User ModeA Preset User modes A,B,C No DMX Mode Close/Hold/Auto Hold if no DMX...
  • Page 17 1.2K 2.4K Refresh Select Refresh Select Gobo Correction ON/OFF Gobo Correction DMX Value Disp. PAN…… DMX Value Disp. Trigger Set To Slave Slave1,Slave2,Slave3 Set To Slave Auto Program Master / Alone Auto Program ResetDefault ON/OFF Restore factory set. Current Time XXXX(Hours) Ttl Life Hrs XXXX(Hours)
  • Page 18 9.1. Address 9.1.1. Set DMX Address With this function you can adjust the desired DMX-address via the Display. 1. Double click to enter the menu. 2. The display will show ADDRESS . 3. Double click to enter then display Set DMX Address . 4.
  • Page 19 6. Long press to exit the menu. Pan Reverse With this function you can reverse the Pan-movement. 1. Double click to enter the menu. 2. Turn the jog wheel clockwise then display Options . 3. Double click to enter Options turn the jog wheel to select Status .
  • Page 20 5. Double click to enter Init PAN The display will show Turn the jog wheel to select OFF . Double click to confirm 6. Long press to exit the menu. Init TILT With this function, you can switch off Tilt movement at power on 1.
  • Page 21 Zoom/Focus Spd With this function you can select Zoom and Focus speed from 1 to 3. 1. Double click to enter the menu. 2. Turn the jog wheel clockwise then display Options . 3. Double click to enter Options turn the jog wheel to select Status . 4.
  • Page 22 9.3.3. Fans Control Fans Speed With this function you can set the max fans speed between Auto, Stage, Silence and Super Silence mode. 1 Double click to enter the menu. 2 Turn the jog wheel clockwise then display Options . 3 Double click to enter Options turn the jog wheel to select Fans Control .
  • Page 23 Key Lock With this function you can activate the automatic key lock function.If this function is activated the keys will be locked automatically after exiting the edit mode for 15 seconds.keeping press the <MODE/ESC>key for 3seconds if you do not need this function. 1 Double click to enter the menu.
  • Page 24 9.3.8. Wireless DMX From factory this projector is prepared for wireless data transmission (W-DMX).If you wish to de-activate W-DMX control you can select the function De-activate WDMX by turning the encoder.With the function rest you can log out the projector from the wireless sender. 1.
  • Page 25 Set To Slave With this function, you can define the device as slave. 1 Double click to enter the menu. 2 Turn the jog wheel clockwise then display Options . 3 Double click to enter Options turn the jog wheel to select Trigger . 4 Double click to enter Trigger menu The display will show Set To Slave .
  • Page 26 TtlLifeHrs With this function you can display the running time of the device.The display shows XXXX XXXX stands for the number of hours. 1. Double click to enter the menu. 2. Turn the jog wheel clockwise then display Info . 3.
  • Page 27 9.4.2. Temp.Info With this function you can display the temperature on the display board of the base (near CMY-filter) in Celsius. 1. Double click to enter the menu. 2. Turn the jog wheel clockwise then display Info . 3. Double click to enter Info turn the jog wheel to select Temp Info .
  • Page 28 9.5.3. Manual Control When set to Manual Mode fixture will be back to factory settings.If want to adjust brightness can adjust by shutter and dimming channel channel value is 0-255.Other functions can be set according to user's real need. 1 Double click to enter the menu. 2 Turn the jog wheel clockwise then display Test .
  • Page 29 which part of the program during the host-slave connection 3 Enter the menu of 1-4 1-5 Function Mode---Set To Master 4 Enter the menu of 8-1 Edit Program---Auto Program Part1.The host outputs three groups driven program---Part1 Part2 Part3(Part1 program runs the same effect as the host) 5 Enter the menu of 8-2 Edit Program---Edit Program.Edit the program’s connection connect the scene in order...

  • Page 30: Dmx Protocol

    10. DMX PROTOCOL DMX channel´s functions and their values (46/34 DMX channels): 4x1 Prisms Mode/Channel Value Function PAN Movement 8bit : 0-255 Pan Movement Pan Fine 16bit 0-255 Fine control of Pan movement TILT Movement 8bit : 0-255 Tilt Movement Tilt Fine 16bit 0-255 Fine control of Tilt movement...
  • Page 31 Focus : 0-255 Continuous adjustment from near to far Focus Fine: 0-255 Continuous adjustment Fine Auto Focus : 0-50 Auto Focus Off 51-100 101-150 7.5m 151-200 201-255 AutoFocus Fine: 0-255 Continuous adjustment Fine Color Wheel : 0-63 CTO (0-white, 255-100% CTO) Color 1 Color 2 Color 3...
  • Page 32 0-255 Yellow (0-white, 255-100% Yellow) Yellow Color Fine : 0-255 Yellow Fine Rotating gobos, cont. rotation : Open 10-18 Rot. gobo 1 19-27 Rot. gobo 2 28-36 Rot. gobo 3 37-45 Rot. gobo 4 46-54 Rot. gobo 5 55-63 Rot. gobo 6 64-72 Rot.
  • Page 33 Gobo 9 Gobo 10 Gobo 11 Gobo 12 Gobo 13 Gobo 14 Gobo 15 Gobo 16 Gobo 17 Gobo 18 Gobo 19 Open Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Gobo 7 Gobo 8 Gobo 9 Gobo 10 Gobo 11 Gobo 12...
  • Page 34 Gobo 14 shake slow to fast 112-114 115-117 Gobo 15 shake slow to fast Gobo 16 shake slow to fast 118-120 Gobo 17 shake slow to fast 121-123 Gobo 18 shake slow to fast 124-126 Gobo 19 shake slow to fast 127-129 Gobo 20 shake slow to fast 130-132...
  • Page 35 0-127 Open 128-255 Prism 2 Rotating prism index, rotating prism rotation 2 0-127 Prism indexing 128-189 Forwards prism rotation from fast to slow 190-193 No rotation 194-255 Backwards prism rotation from slow to fast Rotating prism indexing Fine 2: 0-255 Fine indexing Prism 3: 0-127...
  • Page 36 37-44 Not Used 45-49 Square Law 50-54 Linear 55-57 1.2K 58-60 2.4K 61-63 64-69 70-74 Gobo correction Off 75-79 Gobo correction On 80-84 All motor reset 85-87 Scan motor reset 88-90 Colors motor reset 91-93 Gobo motor reset Not Used Reset Pan/Tilt Fade OFF Reset Pan/Tilt Fade ON 97-99...
  • Page 37 64-127 Stop rotation by shortcut 128-189 Forwards Pan rotation from fast to slow 190-193 No rotation 194-255 Backwards Pan rotation from slow to fast Shutter, strobe: 0-10 Shutter closed 11-20 No function (shutter open) 21-117 Strobe effect slow to fast 118-126 No function (shutter open) 127-180...
  • Page 38 Color 6 Color 7 Color 8 Color 9 Color 10 Color 11 Color 12 Color 13 Color 14 78-127 Color indexing 128-189 Forwards rainbow effect from fast to slow 190-193 No rotation 194-255 Backwards rainbow effect from slow to fast Color Wheel Fine: 0-255 Color Wheel colour change to any position Fine...
  • Page 39 146-156 Gobo 6 shake slow to fast 157-167 Gobo 7 shake slow to fast 168-178 Gobo 8 shake slow to fast 179-189 Gobo 9 shake slow to fast 190-221 Gobo wheel rotation forwards from fast to slow 222-223 No rotation 224-255 Gobo wheel rotation f backwards from slow to fast Rotating gobo index,rotating gobo rotation 1:...
  • Page 40 Gobo 9 Gobo 10 Gobo 11 Gobo 12 Gobo 13 Open Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Gobo 7 Gobo 1 shake slow to fast 73-75 Gobo 2 shake slow to fast 76-78 Gobo 3 shake slow to fast 79-81 Gobo 4 shake slow to fast 82-84...
  • Page 41 Gobo 34 shake slow to fast 172-174 175-177 Gobo 35 shake slow to fast Gobo 36 shake slow to fast 178-180 Gobo 37 shake slow to fast 181-183 Gobo 38 shake slow to fast 184-186 Gobo 39 shake slow to fast 187-189 190-221 Clock-wise scroll from fast to slow...
  • Page 42 20-24 Display Invert On 25-26 Auto fan control mode 27-28 Stage fan control mode 29-30 Silence fan control mode 31-32 Super Silence fan control mode 33-34 Constant Fans OFF 35-36 Constant Fans ON 37-44 Not Used 45-49 Square Law 50-54 Linear 55-57 1.2K...

  • Page 43: Error Messages

    11. ERROR MESSAGES When you turn on the device, it will first perform areset.The display may show Err channel is XX should there be problems with one or more functions. XX stands for channel 1 2 3 4 5 6 etc whose sensor has encountered a problem.For example when the display shows Err channel is Pan movement it means there is an error on channel 1.If there are errors on channel 1 channel 3 channel 6 at the same time you may see the error message...
  • Page 44 (Magenta Color wheel- error) This message will appear after the reset of the fixture if the head’s magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the stepper motor is defective (or its driving IC on the main PCB).The CMY -movement is not located in the default position after the reset.

  • Page 45: Cleaning And Maintenance

    position after the reset. Frost 2wheelEr (Frost 2wheel - error) This message will appear after the reset of the fixture if the head’s magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the steppermotor is defective (or its driving IC on the main PCB).The Frost 2 - movement is not located in the default position after the reset.
