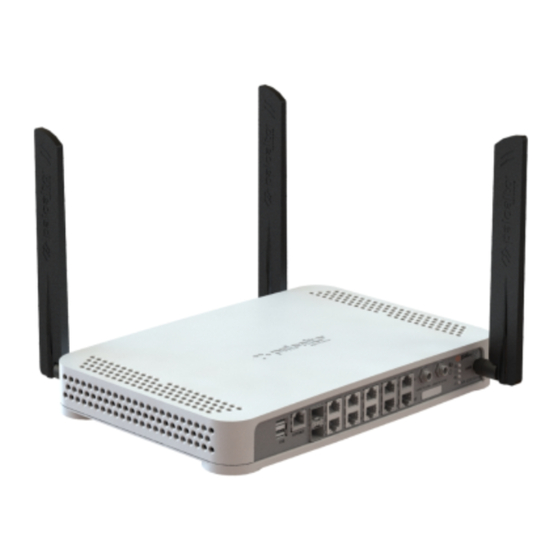

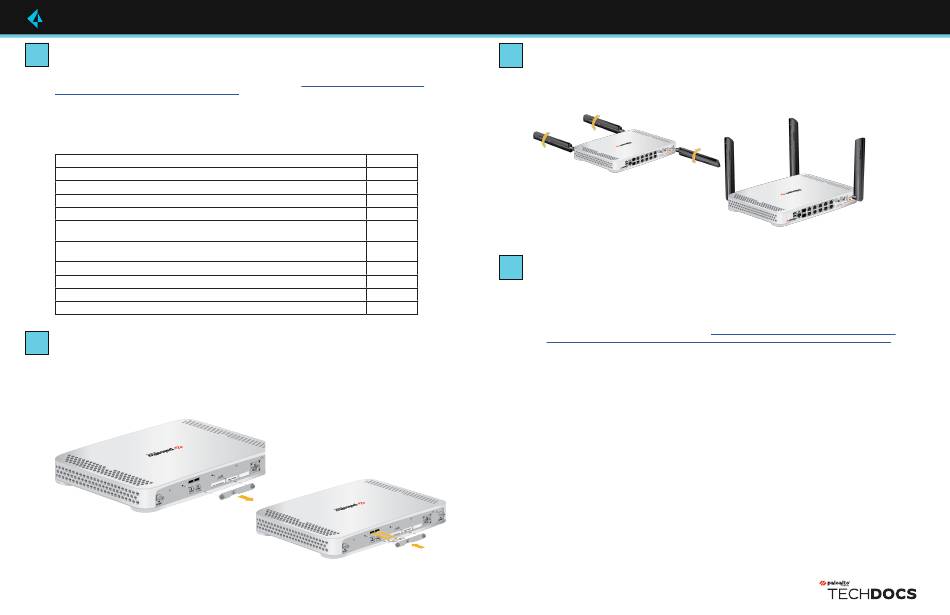

PaloAlto Networks ION 1200-S-C-NA Quick Start Manual

ION 1200-S-C-NA/ROW
1
Before You Begin
Use this document to install and set up your Prisma SD-WAN ION 1200-S-C-NA or ION
1200-S-C-ROW. Refer to the ION 1200 Hardware Reference at
com/hardware/ion-1200-hardware-reference
detailed procedures for installing the device.
•
Verify that the installation site has adequate air circulation and AC power.
•
Have a #1 Phillips-head screwdriver available.
•
Unpack the equipment and verify that you received the following items:
Items
ION 1200-S-C-NA or ION 1200-S-C-ROW
Power Adapter*, 150W
Power Cord, AC
Power Adapter Wall Mount Kit
Wood screws (.75") to mount the device and power adapter bracket to wood studs or
plywood.
Drywall anchors and screws (1.25") to mount the device and power adapter bracket to a
drywall or similar material that cannot securely accommodate wood screws
Shielded RJ-45 CAT6 Ethernet cable
Console cable RS-232 Serial RJ-45 to USB-A
Sheet, Limited Warranty
Multi-band indoor antennas
* If you need a second power supply, you need to order a power adapter and an adapter wall mount kit separately.
2
Insert the SIM Card/s
Remove the SIM cover by unfastening the two M3 screws (Figure 1) using a type 1 Phillips
1
screwdriver.
Insert the nano SIM card by pushing it into the slot. (Figure 2)
2
Place the SIM cover back on the device using the M3 screws.
3
On activation, the blinking cellular LED on the device indicates cellular connectivity.
Figure 1 - Remove the SIM cover
docs.paloaltonetworks.com
https://docs.paloaltonetworks.
for safety information, specifications, and more
Quantity
1
1
1
1
6
6
1
1
1
3
Figure 2 - Insert the SIM
3
Install the Antennas
Assemble the antennas.
1
Connect the antennas to the SMA connectors on the device (Figure 3).
2
Secure the antennas (Figure 4) to the connectors.
3
Figure 3 - Connect the antennas
4
Install the Device
You can install the ION 1200-S-C-NA/ROW on a flat surface, in a rack, or on a wall.
Ensure there are no building services (water, gas, or wiring) behind the wall where you intend
to install the device.
Install the device on a wall
Download the Wall Mount template from
1
ion-1200-hardware-reference/install-ion-1200-s/ion-1200-s-wall-mount-template.
Print the Wall mount template on a US letter size sheet (8.5" x 11"), in portrait mode, and
scale to actual size to ensure the screw hole markers line up correctly.
Temporarily secure the Wall Mount template (Figure 5) to the wall where you intend to
2
mount the device and use it to mark the location for each of the four wall-mount screws.
Use a pointed object to punch through the paper and visibly mark the wall; then remove the
template and verify measurements.
Use a type 1 Philips head screwdriver to install the appropriate screws into each of the four
3
marked locations:
Drywall—First press a drywall anchor slightly into the center of a template mark. Then
◼
use the screwdriver to apply pressure while turning the anchor clockwise until the
surface of the anchor is flush with the wall. After the drywall anchor is secure, install
a 1.25" anchor screw into the anchor until the bottom of the screw head protrudes ¼"
from the wall. Repeat this step for the other three screw locations.
Plywood wall—Use the screwdriver to insert a .75" wood screw into the center of each
◼
template mark that is located over wood until the bottom of the screw heads protrude
¼" from the wall
If any screw location is located over wood, use a .75" wood screw instead of a drywall
◼
anchor and screw.
Page 1 of 2
Quick Start Guide
Figure 4 - Secure the antennas
https://docs.paloaltonetworks.com/hardware/
