- Page 1 INSTRUCTION MANUAL MT1010 200KHz MINI OSCILLOSCOPE...
-
Page 3: Table Of Contents
Page no Contents 1. Notice to Users ................4 2. Product Introduction ...............4 3. Panel Introduction ................4 4. Key Function ..................5 5. Screen Instructions .................6 6. Precautions ..................6 7. Specifications .................7... -
Page 4: Notice To Users

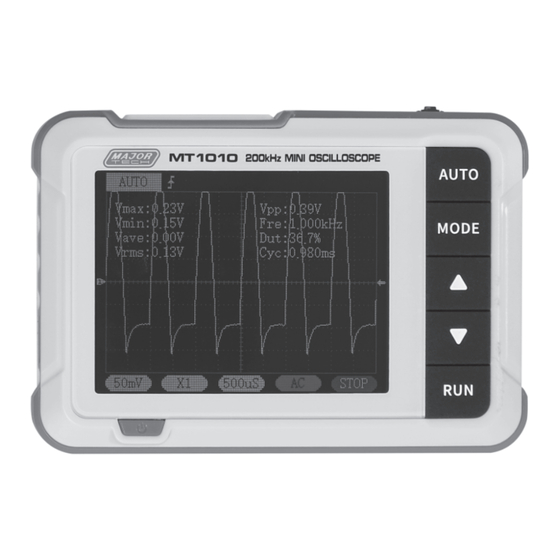

Major Tech, and we will resolve it for you. 2. PRODUCT INTRODUCTION The MT1010 is a highly practical and cost-effective handheld oscilloscope which is aimed at the maintenance industry and the research education industry. The oscilloscope has a real-time sampling rate of 2.5MS/s, a bandwidth of 200kHz, and complete trigger functions (single, normal, and automatic). -
Page 5: Key Function
4. KEY FUNCTION Button Operation Function Short press Control parameters function selection Short press Exit auto calibration (Auto calibration page) Long press Enter the automatic calibration page Short press Control parameters function selection Short press Automatic adjustment (frequency below 45Hz cannot be calibrated correctly) Short press AUTO/Single/Normal switching by pressing mode... -
Page 6: Screen Instructions
5. SCREEN INSTRUCTIONS 1 - Trigger mode indicator icon, Auto means automatic trigger, Single means single trigger, Normal means normal trigger. 2 - Baseline indicator icon, this icon indicates the current position is OV voltage. 3 - Vertical sensitivity, which means the voltage represented by a large grid in the vertical direction. -
Page 7: Specifications
When calibrating, unplug the signal input probe, or shorten the positive and negative poles of the probe. ● The USB firmware upgrade only supports WIN10 or above, and it is forbidden to drag in files other than the released firmware, otherwise it may cause unrecoverable consequences. - Page 8 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
