Server IxD Series Manual page 9

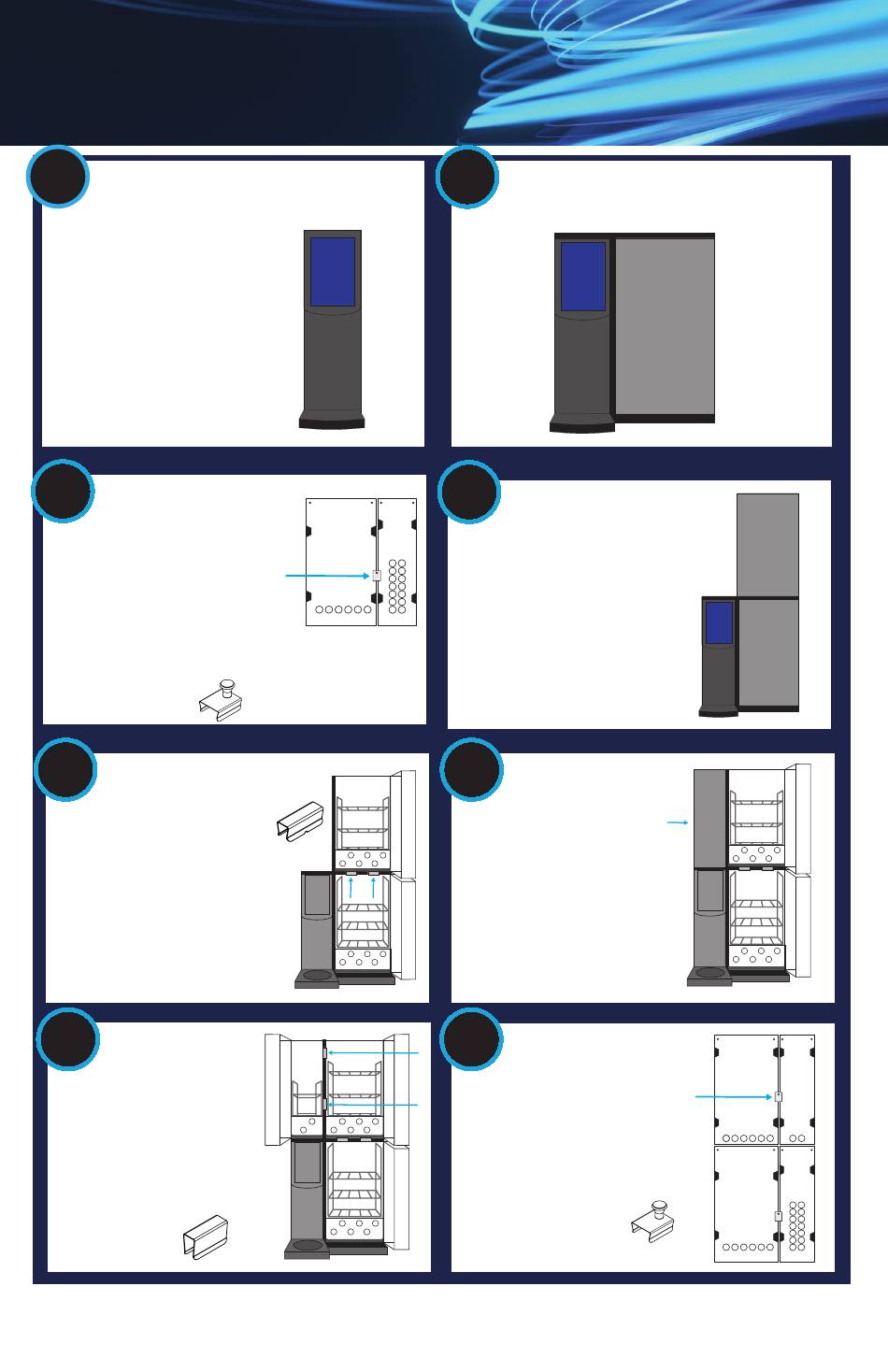

Detailed Assembly & Setup Instructions
1
Remove
components from
box. Depending
on what was
purchased, put the
A or E unit on the
counter where you
plan to put it into
service. Put drip
tray into place.
3
Looking at the back
of these units, take
one of the two
stabilizing brackets
with a knob and put
into place on the
back connecting the
two lower cabinets
together.
5
On the front of the
unit with the doors
open, remove the
drip tray from the
top unit then install
the two horizontal
brackets to connect
the two cabinets.
Replace drip tray.
7
Take the
vertical
brackets and
put into place
to connect
the two top
cabinets
together.
2
A or E
4
6
8
Put the B or F cabinet next to the
A or E cabinet.
Place the other
B or F cabinet
directly on top of
the lower B or F
cabinet. Prior to
doing so, make
sure the bottom
metal panel is
removed from the
bottom of the unit.
Place the C
cabinet on top
of the A or E
cabinet, making
sure the bottom
metal panel is
removed.
Looking at the
back of the unit,
put the second
knob bracket into
place connecting
the top cabinets
together.
