Leica ATS600
User Manual
Version 1.1
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATS600 and is the answer not in the manual?

Questions and answers

Related Manuals for Leica ATS600

Summary of Contents for Leica ATS600

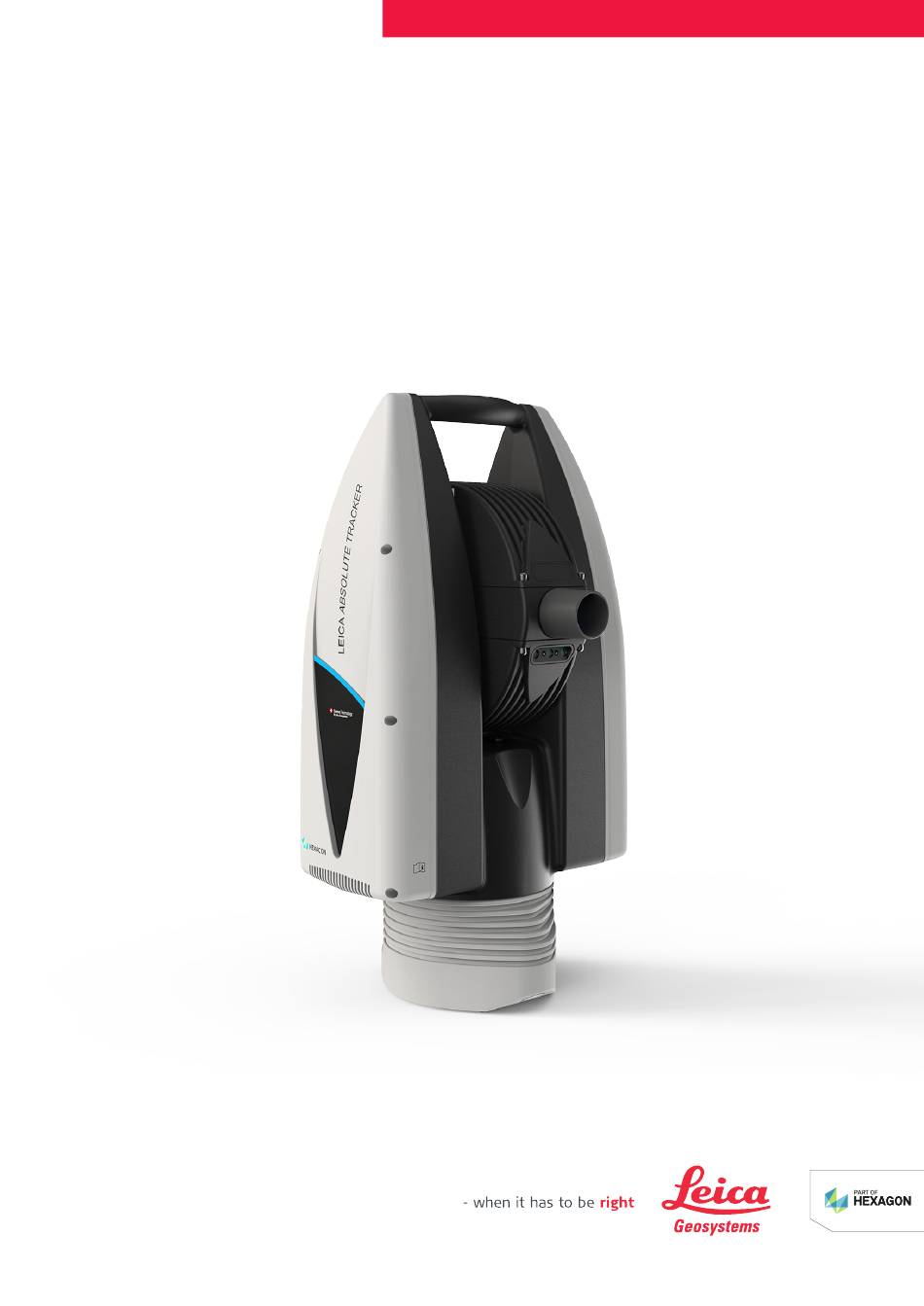

  • Page 1 Leica ATS600 User Manual Version 1.1 English...
  • Page 2 Introduction Purchase Congratulations on the purchase of the Leica ATS600. This manual contains important safety directions as well as instructions for setting up the product and operating it. Refer to 1 Safety Directions for fur- ther information. Read carefully through the User Manual before you switch on the product.
  • Page 3 We request you to make specific comments as to where you envisage scope for improvement. Use the following e-mail address to send your suggestions: support.tracker-pl.mi@hexagon.com Contact Leica Geosystems AG Part of Hexagon Metrology Products Moenchmattweg 5 5035 Unterentfelden Switzerland Phone +41-62-737 67 67 https://www.hexagonmi.com...

  • Page 4: Table Of Contents

    Absolute Distance Meter (ADM) and Laser Pointer 1.6.3 Automatic Target Recognition 1.6.4 PowerLock 1.6.5 ATS600 Instrument Status Indicator Electromagnetic Compatibility (EMC) FCC Statement, Applicable in U.S. ISED Statements (EN/FR), Applicable in Canada Description of the System System Components Software Concept...
  • Page 5 6.3.1 General 6.3.2 Cleaning Optical Parts Maintenance Technical Data General Technical Data of the Product Conformity to National Regulations 7.2.1 ATS600 Instrument, Battery 7.2.2 ATS Controller 7.2.3 Dangerous Goods Regulations Software Licence Agreement/Warranty Appendix A Abbreviations Appendix B Regional Contact Addresses...

  • Page 6: Safety Directions

    Safety Directions General Introduction Description The following directions enable the person responsible for the product, and the person who actually uses the equipment, to anticipate and avoid opera- tional hazards. The person responsible for the product must ensure that all users under- stand these directions and adhere to them.

  • Page 7: Definition Of Use

    • Use of products with recognisable damage or defects • Use with accessories from other manufacturers without the prior expli- • cit approval of Leica Geosystems Inadequate safeguards at the working site • Deliberate dazzling of third parties • Controlling of machines, moving objects or similar monitoring applica- •...

  • Page 8: Responsibilities

    To be familiar with local regulations relating to safety and accident pre- • vention To inform Leica Geosystems immediately if the product and the applic- • ation become unsafe To ensure that the national laws, regulations and conditions for the •...
  • Page 9 Moving the ATS600 with attached sensor cable. The Laser Tracker may tip over. Precautions: ▶ Ensure that the sensor cable is always loose when moving the ATS600 over short distances. ▶ Disconnect the cable in advance when moving the ATS600 over a dis- tance longer than the sensor cable.
  • Page 10 NOTICE Remote control of product With the remote control of products, it is possible that extraneous targets will be picked out and measured. Precautions: ▶ When measuring in remote control mode, always check your results for plausibility. WARNING Distraction or loss of attention During dynamic applications there is a danger of accidents occurring if the user does not pay attention to the environmental conditions around, for example obstacles, excavations or traffic.
  • Page 11 Safeguard the instrument from falling when mounted in an upside- down or tilted position, for example by attaching a suitable lanyard or fall limiter to the handle on the socket of the ATS600 instrument. Contact your local Hexagon or distributor representative for further details on health and safety regulations.
  • Page 12 WARNING Inappropriate mechanical influences to batteries During the transport, shipping or disposal of batteries it is possible for inap- propriate mechanical influences to constitute a fire hazard. Precautions: ▶ Before shipping the product or disposing it, discharge the batteries by the product until they are flat.
  • Page 13 Cell(s) with perchlorate material inside – special handling may apply. See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/ WARNING Improperly repaired equipment Risk of injuries to users and equipment destruction due to lack of repair knowledge. Precautions: ▶ Only authorised Leica Geosystems Service Centres are entitled to repair these products. Safety Directions...

  • Page 14: The Ac Power Supply

    Using the product after incorrect attempts were made to carry out • repairs Precautions: ▶ Do not open the product! ▶ Only Leica Geosystems authorised service centres are entitled to repair these products. Laser Classification 1.6.1 General General The following chapters provide instructions and training information about laser safety according to international standard IEC 60825-1 (2014-05) and technical report IEC TR 60825-14 (2004-02).
  • Page 15 National laws and local regulations could impose more stringent instructions for the safe use of lasers than IEC 60825-1 (2014-05) and IEC TR 60825-14 (2004-02). The ATS600 is classified as laser class 2 in accordance with: IEC 60825-1 (2014-05): “Safety of laser products” •...

  • Page 16: Absolute Distance Meter (Adm) And Laser Pointer

    0018351_001 ☞ The ATS600 is classified as a laser class 2 system although some individual laser sources are classified differently. The possibility of simultaneous emis- sion of the individual laser sources results in an overall classification as laser class 2.

  • Page 17: Automatic Target Recognition

    Description Value Beam diameter at exit aperture 4 mm (1/e 2 ) Pulse duration 0.35 ns Pulse repetition frequency, PRF 1 MHz Laser Pointer: Description Value Emission wavelength 635 nm Maximum average radiant power 0.4 mW cw Beam divergence 0.3 mrad Emitting aperture 5 mm (1/e 2 )

  • Page 18: Powerlock

    LED beam 0018332_001 1.6.5 ATS600 Instrument Status Indicator General The status LEDs built into the product produces a visible LED beam which emerges from the front side of the telescope. Safety Directions...

  • Page 19: Electromagnetic Compatibility (Emc)

    Electromagnetic radiation can cause disturbances in other equipment. Precautions: ▶ Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot com- pletely exclude the possibility that other equipment may be dis- turbed. Safety Directions...
  • Page 20 Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the pos- sibility that function of the product may be disturbed in such an electromag- netic environment.

  • Page 21: Fcc Statement, Applicable In U

    Precautions: ▶ Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment can be disturbed or that humans or animals can be affected. ▶...
  • Page 22 CAUTION Changes or modifications not expressly approved by Leica Geosystems for compliance could void the user's authority to operate the equipment. Labelling ATS600 Instrument Art.No.: Model: ATS600 576971 Power: 48 V / 3.75A max. S.No.: Leica Geosystems AG CH-9435 Heerbrugg...

  • Page 23: Ised Statements (En/Fr), Applicable In Canada

    ISED Statements (EN/FR), Applicable in Canada WARNING This Class (B) digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe (B) est conforme à la norme NMB-003 du Canada. Canada Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s).

  • Page 24: Description Of The System

    • AC/DC adapter • LAN cable • Reference sphere • The terms "Absolute Tracker" and "Laser Tracker" are used as synonyms for all types of the Leica Geosystems Absolute Tracker. System Compon- ents 0018328_001 ATS600 ATS Controller Component Description ATS600...

  • Page 25: Software Concept

    Hexagon or distributor representative for details. Customised Customised software specific to user requirements application pro- can be developed using the Leica Metrology Founda- grams tion (LMF). Contact your Hexagon or distributor rep- resentative for further information. Firmware upload A firmware update of the Absolute Tracker can be done through the provided Tracker Pilot software.

  • Page 26: Separately Delivered Accessories

    2.5.1 ATS600 Instrument Status LEDs Status LEDs Description The ATS600 has Light Emitting Diode indicators at the front side and back side of the telescope. They indicate the following states. Diagram of the Status LEDs 0018330_001 Description of the System...
  • Page 27 LED with various colours Front side LED with various colours Back side LED with various colours Description of the Status LEDs Symbol Description Symbol Description Status indicator, Status indicator, red continuous ON red flashing Status indicator, Status indicator, green continuous ON green flashing Status indicator, Status indicator,...
  • Page 28 LED State Status Informa- tion The ATS Controller LEDs or the ATS600 instrument is off. Pattern None None None The system is booted and no LEDs reflector is locked. PowerLock is act- ive. Pattern The system is booted and no LEDs reflector is locked.

  • Page 29: Ats600 Instrument Measurement System Angular System

    Orient-to-Gravity The Absolute Tracker ATS600 features a dual-axis Orient-to-Gravity sensor. Sensor This inclination sensor is located within the rotating head of the ATS600 instrument. The Orient-to-Gravity sensor can operate in different modes depending on the stability of the ground: Orient-to-gravity •...

  • Page 30: Absolute Distance Meter (Adm)

    Absolute Distance Meter (ADM) Description The Absolute Distance Meter of the ATS600 uses the wave form digitizing technology, which is a specific form of time-of-flight distance measurement system. It allows a measurement speed of up to 1 kHz and supports meas- urements to reflectors as well as non-contact measurements to surfaces dir- ectly.

  • Page 31: Automatic Target Recognition

    These values are precisely determined in the factory. In the field the additive constant can be verified through a sensor check or compensation process. ☞ Refer to the Tracker Pilot Reference Manual on details of the ADM check and compensation process. Reflector constant Glass prism reflectors like the Tooling Ball (TBR) have an internal reflector constant, which causes an apparent increase in the distance measurement.

  • Page 32: Overview Camera

    View 0018341_001 Power status LED WLAN status LED Clip for Universal Stand Fixture Main power switch for (back side of the ATS Control- ATS Controller and ler) ATS600 Touch-sensitive status display Connectors with different information pages Description of the System...

  • Page 33: Ats Controller Display

    Connector for sensor cable Turn on To turn on the ATS600 instrument press the power switch on the front panel. NOTICE Improper shut down of the system This could lead to a loss of essential system information.
  • Page 34 Display brightness The ATS Controller boots with the pre-configured display brightness settings. 5 minutes after your last interaction on the ATS Controller, the display dims back to 5% of the brightness range. To bring the display brightness back to the pre-configured level, touch the display anywhere.
  • Page 35 While the controller is booting, shutting down or installing a system update, the progress bar indicates the degree of completion: Splash Screen Icons Description 100% Running progress bar: the installation is still ongoing. Main page System type and serial number Absolute Tracker status (all ok or impediments, if there are any)
  • Page 36 Target icons RRR 1.5 RRR 7/8 RRR 0.5 Custom reflector Surface point Custom sphere Reference sphere No target Absolute Tracker status System is ready. Sensor is not connected. Tracker is not initialised. Firmware problem. Laser is off. Laser is warming up. Laser failure Description of the System...
  • Page 37 Laser sleep Compensation missing Wrong combination of target and measure- ment profile Measurement profiles Fast Standard Precise Continuous time or distance Touch trigger or custom trigger Area scan Network connec- LAN: tion page Network connection status Network mode: Auto Server, Auto Client, Static, Join Net- work IP address: in parenthesis if...
  • Page 38 WLAN: WLAN connection status: current signal strength/no WLAN established WLAN connection secured Broadcasted SSID or external SSID – depending on mode Network mode – AP mode/ Connect to AP IP address of controller Network Connection Status LMF connected via LAN LMF LAN connection inactive No LMF connection LMF WLAN connection active with maximum...
  • Page 39 Status Icons for Net- Description work Open Encrypted WLAN established/signal strength: 41-60% WLAN established/signal strength: 61-80% WLAN established/signal strength: 81-100% Restore Network To restore the network settings, tap Settings Page on the icon on the Network Connec- tion page Choose between three different resetting options: Static: LAN default •...
  • Page 40 Power Supply Page: Dual Power Source (Option 1) Active power source (Mains connection and battery) Remaining battery capacity Power Supply Page: Dual Power Source (Option 2) Active power source (Bat- tery 1 and Battery 2) Remaining battery capacity ☞ If two batteries are connected, the battery icon on the main page shows the sum of the total capacities divided by 2 –...
  • Page 41 6% to 20% 21% to 47% 48% to 73% 74% to 100% Battery error Levelling Page L and T: unitless Drift X and Drift Y: displayed in mm/m with 3 digits or in/ft with 4 digits, depending on the units setting of the controller display Inclination Sensor Status Disabled...
  • Page 42 Enabled, levelled enough for a successful Monitoring Monitoring off Monitoring on and within tolerance Monitoring out of tolerance Laser Tracker orientation Laser Tracker oriented to gravity Laser Tracker not oriented to gravity Meteo Page Units: Imperial: °F, InHg, %rH • Metric: °C, mBar, %rH •...
  • Page 43 Automatic reading from external sensor attached Meteo status No Meteo data Automatic Meteo data from internal sensor out of range Manually entered Meteo data out of range Automatic Meteo data from external sensor out of range Information Page Touch sensitive area System type System serial number Installed firmware revision...

  • Page 44: Application Processor

    Description An application processor which runs the actual application software is required to operate the ATS600. The Leica Metrology Foundation (LMF) provides an open and flexible interface to third-party application programs. The use of an Application Processor distributes the workload such as: The system software runs on the ATS Controller Processor, the applica- •...

  • Page 45: Maximum Permissible Error (Mpe)

    Measurement Uncertainty Description The table below shows the Maximum Permissible Error (MPE) specifications for the test items defined in ISO 10360-10:2016 using Leica 1.5'' Red Ring Reflectors (RRR) and standard measurement mode unless otherwise noted. Reflector measure- Two Face Measurement...
  • Page 46 Length Measurement Length Measurement Pos. 1 to 2 ±100 µm E Uni:0:LT,MPE 2) @ 1.5 m distance Pos. 3 to 15 ±74 µm Pos. 16 to 19 ±81 µm Pos. 20 to 29 ±100 µm @ 1.5 m distance Pos. 30 to 35 ±21 µm + 8.5 µm/m for distances >...
  • Page 47 Range Noise 5) Standard deviation (1σ) of a best-fit plane, distance 1.5 to 30 meter, standard measurement mode, target aligned Absolute Accuracy Absolute accuracy 6) < ±300 µm 6) Maximum deviation (MPE) of the absolute position of a plane (78% albedo), 1.5 to 30 meter, 0 to ±45°...

  • Page 48: Reflector

    0.00 mm ±0.01 mm ☞ If repeatability of measurements is important, the reflector should always be used with the same orientation. The serial number and Leica logo on the reflector housing helps to main- tain the orientation. Description of the System...

  • Page 49: Accessories

    Refer to the brochure “Hexagon MI Laser Tracker and Accessor- ies Catalog” for detailed information on additional accessories. ☞ The use of accessories from third-party manufacturers without prior approval of Leica Geosystems is not permitted. Unauthor- ised modifications to the system make the warranty null and void. Reflectors...
  • Page 50 Reflector housing Solid glass prism Laser beam path Prism surface 004708_001 Glass sphere prism (Supercateye SCE 1.5''). The SCE 1.5'' is a target • with a very large acceptance angle. The glass ball is centered in a metal sphere and can be used with the same reflector nest as other 1.5'' reflectors.

  • Page 51: Measurement Cart

    Measurement Cart Description A mobile, lockable cart offers flexibility in assembly and portability of the Absolute Tracker system. All components, apart from the Tracker Stand, can be installed or stored inside the cart. The complete system can be lifted onto rails on the side of the cart.

  • Page 52: Operation

    Operation Setup General The first installation of the product should be done by authorised Leica Geo- systems personnel. Installation by unauthorised personnel may cause dam- age and will make the warranty null and void. Setup Step-by- step 0018329_001 Screw the Quick Release onto the Tracker Stand and tighten it using the hinged hook wrench.
  • Page 53 Connect the other end of the sensor cable to the ATS600 instru- ment. Connect a LAN cable (if applicable). Connect the AC power supply to the ATS Controller and to a grounded mains socket outlet. To turn on the Absolute Tracker, press the power switch on the frontpanel of the ATS Controller.
  • Page 54 The Static IP connection connects the Application Processor (AP) to the ATS point) Controller through point-to-point configuration. Third-party application soft- ware is using the Leica Metrology Foundation (LMF) as low-level interface to the ATS Controller. The connection requires the following component: CAT5 LAN Cable RJ45 •...
  • Page 55 0018345_001 4.2.2 WLAN Connection WLAN Configura- As alternative to the wired connection the ATS Controller and the Application tion Processor can be operated in a wireless LAN (WLAN) network. The ATS Controller supports the wireless topologies: Access Point Mode: The ATS Controller serves as Access Point to allow •...

  • Page 56: Batteries

    For Li-Ion batteries, a single discharging and charging cycle is sufficient. • We recommend carrying out the process when the battery capacity indicated on the charger or on a Leica Geosystems product deviates significantly from the actual battery capacity available. Operation/dischar- The batteries can be operated from −20 °C to +55 °C/−4 °F to +131 °F.

  • Page 57: Check & Adjust

    Check & Adjust Description Leica Geosystems products are manufactured, assembled and adjusted to the best possible quality. Quick temperature changes, frequent movements of the product, shock or stress can cause deviations and decrease the meas- urement accuracy. It is therefore recommended to check and adjust (compensate) the product from time to time.
  • Page 58 Adjusting the Circular Level of the Instrument Adjusting the Cir- cular Level Step- by-step 0018343_002 Place and secure the instrument into the Quick Release on the Stand Tube. Level the instrument precisely with the electronic level on the dis- play of the ATS Controller using the footscrews. Check the position of the circular level on the instrument.

  • Page 59: Care And Transport

    For products for which no container is available use the original packaging or its equivalent. Shipping When transporting the product by rail, air or sea, always use the complete original Leica Geosystems packaging, container and cardboard box, or its equivalent, to protect against shock and vibration. Care and Transport...

  • Page 60: Storage

    Shipping, transport When transporting or shipping batteries, the person responsible for the of batteries product must ensure that the applicable national and international rules and regulations are observed. Before transportation or shipping, contact your local passenger or freight transport company. Field adjustment Exposing the product to high mechanical forces, for example through fre- quent transport or rough handling, or storing the product for a long time...
  • Page 61 Damp products Dry the product, the transport container, the foam inserts and the accessor- ies at a temperature not greater than 40°C /104°F and clean them. Remove the battery cover and dry the battery compartment. Do not repack until everything is completely dry. Always close the transport container when using in the field.
  • Page 62 If you need to replace cleaning materials, contact your local ☞ Leica Geosystems agency as source of supply. Cleaning liquid Use Isopropanol as cleaning liquid to soak tissues or cleaning swabs.

  • Page 63: Maintenance

    NOTICE Improper cleaning by using mechanical force like brushes or cotton swabs Improper cleaning may destroy the coated surfaces of the Break Resistant Reflectors (BRR) and lead to a malfunction. Precautions: ▶ For cleaning of Break Resistant Reflectors (BRR) follow the procedure described in the Product Information delivered with the product.

  • Page 64: Technical Data

    ATS600 instrument Dimensions sions Size 258 mm × 239 mm × 477 mm Transit Axis height 1404 mm Weight of ATS600 sensor 14.20 kg Weight of Quick Release 1.25 kg Quick Release Interface 3 ½” - 8 UNC 239 mm...
  • Page 65 0.9 A (230 V AC) Max. input AC current (over current protection) Environmental Temperature Specifications Type Operating temperature Storage temperature [°C] [°C] ATS600 instru- 0 to +40 –25 to +70 ment ATS Controller 0 to +40 –25 to +70 Humidity Type Protection ATS600 instru- Max.
  • Page 66 Device Measurement uncer- Applicable range tainty External Air/Object ±0.3 °C 0 °C to 40 °C temperature (32 °F to 104 °F) Pressure ±1.0 hPa 0 °C to 40 °C (32 °F to 104 °F) 750 hPa to 1100 hPa Humidity ±5% * –...
  • Page 67 (with default point-to-point and line-to-line dis- tance 50 mm) Fast < 10 s Standard < 2:15 min Precise < 3:00 min Motorisation ATS600 instrument Value Maximum rotation speed 200 gon/s Acceleration lateral 750 gon/s 2 Acceleration radial 180 m/s 2 Tracking speed lateral...
  • Page 68 ATS Controller Conformity to FCC Part 15 (applicable in US) • national regula- Hereby, Leica Geosystems AG declares that the radio equipment • tions type ATS Controller is in compliance with Directive 2014/53/EU and other applicable European Directives. The full text of the EU declaration of conformity is available at the following Internet address: http://www.leica-geosystems.com/ce.
  • Page 69 ATS Controller, WLAN (internal antenna) 7.2.3 Dangerous Goods Regulations Dangerous Goods Many products of Leica Geosystems are powered by Lithium batteries. Regulations Lithium batteries can be dangerous under certain conditions and can pose a safety hazard. In certain conditions, Lithium batteries can overheat and ignite.

  • Page 70: Software Licence Agreement/Warranty

    Property Rights, Limitation of Liability, Exclusion of other Assurances, Governing Law and Place of Jurisdiction. Please make sure, that at any time you fully comply with the terms and conditions of the Leica Geosystems Software Licence Agreement. Such agreement is provided together with all products and can also be referred to and downloaded at the Leica Geosystems home page at http://leica-geosystems.com/about-us/compliance-standards/legal-docu-...
  • Page 71 Download open source licence: Note the IP address of the Laser Tracker. ☞ It is displayed on the ATS Controller screen on any of the network connec- tion pages in defined digits: XX.XX.XX.XXX ☞ Be sure that the application computer is connected within the same network as the Laser Tracker.
  • Page 72 Automatic Target Recognition Break Resistant Reflector Electromagnetic Compatibility Standard of the European Committee for Standardization International Electrotechnical Commission Light Emitting Diode Leica Metrology Foundation Maximum Permissible Error RJ45 Registered Jack 45, standardised physical interface for connecting telecommunication equipment. Red Ring Reflector...
  • Page 73 Appendix B Regional Contact Addresses Regional Contact Visit https://www.hexagonmi.com/contact-us to find the contact details of Addresses your local Hexagon distributor or representative. Regional Contact Addresses...
  • Page 74 877998-1.1.0en Original text (877998-1.1.0en) Published in Switzerland © 2020 Leica Geosystems AG, Heerbrugg, Switzerland Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland Phone +41 71 727 31 31 www.leica-geosystems.com...
