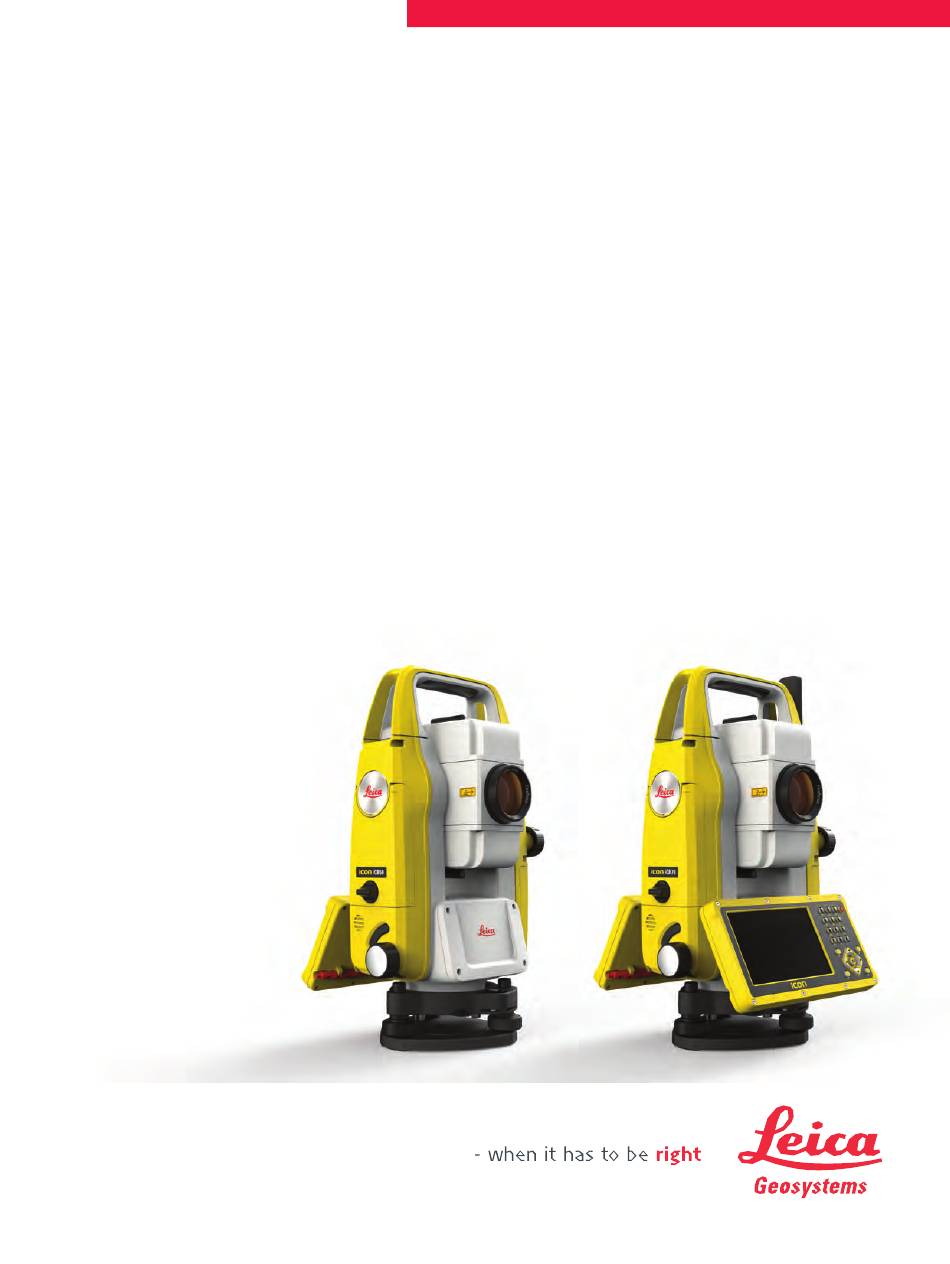

Leica iCB50/iCB70
User Manual
Version 2.0
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iCB50 and is the answer not in the manual?

Questions and answers

Related Manuals for Leica iCB50

Summary of Contents for Leica iCB50

  • Page 1 Leica iCB50/iCB70 User Manual Version 2.0 English...
  • Page 2 Bluetooth SIG, Inc. All other trademarks are the property of their respective owners. Validity of this This manual applies to all iCB50/iCB70 instruments. Where there are differ- manual ences between the various models they are clearly described.
  • Page 3 Leica Geosystems On the last page of this manual, you can find the address of Leica Geosystems address book headquarters. For a list of regional contacts, please visit http://leica-geosystems.com/contact-us/sales_support. myWorld@Leica Geosystems (https://myworld.leica-geosystems.com) offers a wide range of services, information and training material.

  • Page 4: Table Of Contents

    Angle Measurement Distance Measurement with Reflectors Distance Measurement without Reflectors (Non-Prism mode) LOC8 Theft Deterrence and Location Device (optional) Conformity to National Regulations 7.5.1 iCB50/iCB70 7.5.2 LOC8 Theft Deterrence and Location Device (optional) 7.5.3 Dangerous Goods Regulations Table of Contents...
  • Page 5 General Technical Data of the Product Scale Correction Reduction Formulas Software Licence Agreement Appendix A Directory Structure Table of Contents...

  • Page 6: Safety Directions

    Safety Directions General Description The following directions enable the person responsible for the product, and the person who actually uses the equipment, to anticipate and avoid opera- tional hazards. The person responsible for the product must ensure that all users understand these directions and adhere to them.

  • Page 7: Definition Of Use

    Responsibilities Manufacturer of the Leica Geosystems AG, CH-9435 Heerbrugg, hereinafter referred to as Leica product Geosystems, is responsible for supplying the product, including the User Manual and original accessories, in a safe condition.

  • Page 8: Hazards Of Use

    To be familiar with local regulations relating to safety and accident pre- • vention. To inform Leica Geosystems immediately if the product and the applica- • tion becomes unsafe. To ensure that the national laws, regulations and conditions for the oper- •...
  • Page 9 WARNING Distraction/loss of attention During dynamic applications, for example stakeout procedures, there is a danger of accidents occurring if the user does not pay attention to the envir- onmental conditions around, for example obstacles, excavations or traffic. Precautions: ▶ The person responsible for the product must make all users fully aware of the existing dangers.
  • Page 10 WARNING Inappropriate mechanical influences to batteries During the transport, shipping or disposal of batteries it is possible for inap- propriate mechanical influences to constitute a fire hazard. Precautions: ▶ Before shipping the product or disposing it, discharge the batteries by the product until they are flat.

  • Page 11: Laser Classification

    WARNING Improperly repaired equipment Risk of injuries to users and equipment destruction due to lack of repair knowledge. Precautions: ▶ Only authorised Leica Geosystems Service Centres are entitled to repair these products. Laser Classification 1.6.1 General General The following chapters provide instructions and training information about laser safety according to international standard IEC 60825-1 (2014-05) and technical report IEC TR 60825-14 (2004-02).

  • Page 12: Distancer, Measurements With Reflectors

    ☞ National laws and local regulations could impose more stringent instructions for the safe use of lasers than IEC 60825-1 (2014-05) and IEC TR 60825-14 (2004-02). 1.6.2 Distancer, Measurements with Reflectors Applicability Depending on instrument model. General The EDM module built into the product produces a visible laser beam which emerges from the telescope objective.
  • Page 13 and after-images, particularly under low ambient light conditions. The risk of injury for laser class 3R products is limited because of: unintentional exposure would rarely reflect worst case conditions of (e.g.) beam alignment with the pupil, worst case accommodation, inherent safety margin in the maximum permissible exposure to laser radi- ation (MPE) natural aversion behaviour for exposure to bright light for the case of vis- ible radiation.

  • Page 14: Red Laser Pointer

    Art.No.: 123456 Equip.No.: 1234567 Power: 12-15V 16W max S.No.: Leica Geosystems AG 123456 CH-9435 Heerbrugg Manufactured: XX.20XX Made in Singapore Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019.
  • Page 15 Description Value (R500) Wavelength 658 nm Maximum average radiant power 4.8 mW Pulse duration 800 ps Pulse repetition frequency (PRF) 100 MHz Beam divergence 0.2 mrad × 0.3 mrad NOHD (Nominal Ocular Hazard Distance) @ 0.25 s 44 m / 144 ft CAUTION Class 3R laser products From a safety perspective, class 3R laser products should be treated as poten-...

  • Page 16: Laser Plummet

    Art.No.: 123456 Equip.No.: 1234567 Power: 12-15V 16W max S.No.: Leica Geosystems AG 123456 CH-9435 Heerbrugg Manufactured: XX.20XX Made in Singapore Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019.

  • Page 17: Electromagnetic Compatibility (Emc)

    Precautions: ▶ Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment may be disturbed. CAUTION Use of the product with accessories from other manufacturers. For...
  • Page 18 Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possib- ility that function of the product may be disturbed in such an electromagnetic environment.

  • Page 19: Fcc Statement, Applicable In U

    • which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. • CAUTION Changes or modifications not expressly approved by Leica Geosystems for compliance could void the user's authority to operate the equipment. Safety Directions...
  • Page 20 / 5.6 Ah Made in China 15 A / 62 Wh Leica Geosystems AG, CH-9435 Heerbrugg This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 21: Ised Statements (En/Fr), Applicable In Canada

    ISED Statements (EN/FR), Applicable in Canada WARNING This Class (B) digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe (B) est conforme à la norme NMB-003 du Canada. Canada Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s).

  • Page 22: Description Of The System

    Data transfer Data can be transferred between a iCB50/iCB70 and a com- puter via USB cable, USB-stick, SD card and data transfer cable. Description of the System...

  • Page 23: Container Contents

    1 of 2 18390_001 GEB331 or GEB361 battery GZT4 target plate GRZ101 mini prism, GAD103 and GAD105 adapter GLS115 mini prism pole Leica industrial grade USB memory stick Stylus GFZ3 and GOK6 diagonal eyepiece Tip for mini prism Adjustment tool Allen key...

  • Page 24: Instrument Components

    Container contents part 2 of 2 18395_001 SD card GPR105 flat prism GHT196 holder for height metre GHM007 height metre GLI115 clip-on bubble GKL311 charger Protective cover / Lens hood / Cleaning cloth USB – MiniUSB cable Instrument Components Instrument Compartment for SD card, USB memory stick components and USB cable ports...
  • Page 25 Instrument components part 2 of 2 LTE antenna (iCB70)* Focusing telescope image Eyepiece; focusing graticule Battery cover Foot screw Stylus Keyboard with display * Optional 18422_001 Description of the System...

  • Page 26: User Interface

    User Interface Keyboard iCB50/70 keyboard Alphanumeric keys ON/OFF Back or Cancel Measure Arrow keys Home d e f g h Backspace 16066_001 Keys Function Alphanumeric To type letters and numbers. keys ON/OFF If the instrument is already off: Turns on the instru- ment when held for 2 s.
  • Page 27 Home menu elements 16582_001_en Status bar Data container Title bar Power key Application container Settings container User Interface...
  • Page 28 Map screen elements 16583_002 Application indicator Change button for perspective Status sensor mode (3D) Status target Elevation Filter indicator Information bar Isolation mode indicator Warning bar (only displayed if Main map area there is an issue) Measure bar Scale bar Home North and 3D indicator Toolbox...
  • Page 29 ☞ For iCB70 devices with laser class 2, the laser pointer function is not available. Button A can be configured just like Button B. Tap Button B to configure the button. Tap a measure bar function to assign it to the button. Meas+Rec •...

  • Page 30: Operation

    Operation Instrument Setup Description This topic describes an instrument setup over a marked ground point using the laser plummet. It is always possible to set up the instrument without the need for a marked ground point. ☞ Important features It is always recommended to shield the instrument from direct sunlight •...
  • Page 31 Instrument setup step-by-step 18423_001 Extend the tripod legs to allow for a comfortable working posture. Position the tripod above the marked ground point, centring it as good as possible. Ensure that the tripod plate is roughly horizontal. Fasten the tribrach and instrument onto the tripod. Shield the instrument from direct sunlight and avoid uneven temper- ☞...
  • Page 32 Turn on the instrument, and, if tilt correction is set to On, the laser plummet will be activated automatically, and the level screen appears. ☞ The bubble of the electronic level and the arrows for the rotating direction of the footscrews only appear if the instrument tilt is inside a certain levelling range.

  • Page 33: Batteries

    For Li-Ion batteries, a single discharging and charging cycle is sufficient. • We recommend carrying out the process when the battery capacity indic- ated on the charger or on a Leica Geosystems product deviates signific- antly from the actual battery capacity available. Operation/discharging The batteries can be operated from −20 °C to +55 °C/−4 °F to +131 °F.

  • Page 34: Data Storage

    ☞ SD cards can directly be used in an OMNI drive as supplied by Leica Geosys- tems. Other PC card drives can require an adaptor. Distance Measurements - Guidelines for Correct Results Description An EDM is incorporated into the instrument.
  • Page 35 Non-prism measurements 002410_002 When a distance measurement is triggered, the EDM measures to the • object which is in the beam path at that moment. If a temporary obstruc- tion, for example a passing vehicle, heavy rain, fog or snow is between the instrument and the point to be measured, the EDM may measure to the obstruction.

  • Page 36: Check & Adjust

    Check & Adjust Overview Description Leica Geosystems instruments are manufactured, assembled and adjusted to the best possible quality. Quick temperature changes, shock or stress can cause deviations and decrease the instrument accuracy. It is therefore recom- mended to check and adjust the instrument from time to time. This check and adjust can be done in the field by running through specific measurement pro- cedures.

  • Page 37: Preparation

    During the manufacturing process, the instrument errors are carefully determ- ☞ ined and set to zero. As mentioned above, these errors can change and it is highly recommended to redetermine them in the following situations: Before the first use • Before every high precision survey •...

  • Page 38: Combined Adjustment (L, T, I And C)

    Combined adjustment The following description explains the most common settings: procedure step-by- It is recommended to use a clean Leica circular prism as target. Do ☞ step not use a 360° prism. Select Sensor from the Home Menu.
  • Page 39 Aim the telescope accurately at a target at about 100 m distant • or less if not possible. The target must be positioned at least 27°/30 gon above or beneath the horizontal plane. Start the procedure in face I. • Press the measurement keys to measure and to continue to the •...

  • Page 40: Adjusting The Circular Level Of The Instrument And Tribrach

    Select Export from the Home Menu. Tap within the section Details and select TS Calibration. Adjusting the Circular Level of the Instrument and Tribrach Adjusting the circular 3 - 4 level step-by-step 18447_001 Place and secure the instrument into the tribrach and onto a tripod. Turn on the instrument.

  • Page 41: Adjusting The Circular Level Of The Prism Pole

    The laser plummet is located in the vertical axis of the instrument. Under nor- ☞ mal conditions of use, the laser plummet does not need adjusting. If an adjustment is necessary due to external influences, return the instrument to any Leica Geosystems authorised service workshop. Inspecting the laser 3 - 4 plummet step-by-step 360°...

  • Page 42: Servicing The Tripod

    3 mm away from the point which was first marked, an adjustment may be required. Inform your nearest Leica Geosystems authorised service centre. Depending on bright- ness and surface, the diameter of the laser dot can vary. At 1.5 m, it is about 2.5 mm.

  • Page 43: Care And Transport

    Shipping When transporting the product by rail, air or sea, always use the complete ori- ginal Leica Geosystems packaging, container and cardboard box, or its equival- ent, to protect against shock and vibration. Shipping, transport of When transporting or shipping batteries, the person responsible for the...

  • Page 44: Cleaning And Drying

    Cleaning and Drying Product and accessor- Blow dust off lenses and prisms. • Never touch the glass with your fingers. • Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten • the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components.

  • Page 45: Technical Data

    Technical Data Angle Measurement Accuracy Available angular Standard deviation Display resolution accuracies Hz, V ISO 17123-3 ["] [mgon] ["] [°] [mgon] [mil] 0.0001 0.01 0.0001 0.01 0.0001 0.01 Characteristics Absolute, continuous, diametric. Updates each 0.1 to 0.3 s. Distance Measurement with Reflectors Range Reflector Range A...

  • Page 46: Distance Measurement Without Reflectors

    Accuracy Accuracy refers to measurements to standard prisms. Distance Standard Standard Measurement measuring deviation deviation time, typical [s] mode ISO 17123-4, ISO 17123-4, standard prism tape Single Auto 1 mm + 1.5 ppm 3 mm + 2 ppm Continuous 3 mm + 1.5 ppm 3 mm + 2 ppm <...

  • Page 47: Loc8 Theft Deterrence And Location Device (Optional)

    Conformity to FCC Part 15 (applicable in US) • national regulations Hereby, Leica Geosystems AG declares that the radio equipment type • iCB50/iCB70 is in compliance with Directive 2014/53/EU and other applicable European Directives. The full text of the EU declaration of conformity is available at the fol- lowing Internet address: http://www.leica-geosystems.com/ce.

  • Page 48: Loc8 Theft Deterrence And Location Device (Optional)

    Conformity to FCC Part 15, 22 and 24 (applicable in US) • national regulations Hereby, Leica Geosystems AG declares that the radio equipment type • LOC8 is in compliance with Directive 2014/53/EU and other applicable European Directives. The full text of the EU declaration of conformity is available at the fol- lowing Internet address: http://www.leica-geosystems.com/ce.

  • Page 49: Dangerous Goods Regulations

    7.5.3 Dangerous Goods Regulations Dangerous Goods Many products of Leica Geosystems are powered by Lithium batteries. Regulations Lithium batteries can be dangerous under certain conditions and can pose a safety hazard. In certain conditions, Lithium batteries can overheat and ignite.

  • Page 50: General Technical Data Of The Product

    Leica Geosystems has developed Guidelines on “How to carry Leica ☞ products” and “How to ship Leica products” with Lithium batteries. Before any transportation of a Leica product, we ask you to consult these guidelines on our web page (http://www.leica-geosystems.com/dgr) to ensure that you are in accordance with the IATA Dangerous Goods Regulations and that the Leica products can be transported correctly.
  • Page 51 5 Pin LEMO-0 port Pin 1: Power input Pin 2: not used Pin 3: Single ground Pin 4: RxD (RS232, receive data, In) Pin 5: TxD (RS232, transmit data, Out) 18449_001 Instrument iCB50/iCB70 dimensions 194.6 mm 223.7 mm 18450_001 Technical Data...
  • Page 52 Tilting axis height Type Description Without tribrach 196 mm With tribrach (GDF111) 240 mm Recording Model Memory Capacity [MB] Number of Type measurements iCB50 Internal 90,000 memory iCB70 Internal 90,000 memory Laser plummet Type Description Type Visible red laser class 2 Location...

  • Page 53: Scale Correction

    Internal battery Type Battery Voltage Capacity Operating time, typically GEB331 Li-Ion 11.1 V 2.8 Ah ≤ 15 h GEB361 Li-Ion 11.1 V 5.6 Ah ≤ 30 h Based on a single measurement every 30 s at 25°C. Operating time may be shorter if battery is not new. Environmental Temperature specifications...

  • Page 54: Reduction Formulas

    Adjustments for air pressure • Air temperature • For highest precision distance measurements, the atmospheric correction should be determined with: An accuracy of 1 ppm • Air temperature to 1 °C • Air pressure to 3 mbar • Atmospheric Atmospheric corrections in ppm with temperature [°C], air pressure [mb] and corrections °C height [m] at 60% relative humidity.
  • Page 55 To prisms • To reflector tape • Reflectorless measurements • Slope distance - Corrections are applied on the instrument display and to all exported formats corrections in the same way. Formulas Mean Sea Level Instrument Reflector Slope distance Horizontal distance Height difference TS_110 The instrument calculates the slope distance, horizontal distance, height dif-...

  • Page 56: Software Licence Agreement

    Rights, Limitation of Liability, Exclusion of other Assurances, Governing Law and Place of Jurisdiction. Please make sure, that at any time you fully comply with the terms and conditions of the Leica Geosystems Software Licence Agreement. Such agreement is provided together with all products and can also be referred to and downloaded at the Leica Geosystems home page at http://leica-geosystems.com/about-us/compliance-standards/legal-documents...

  • Page 57: Appendix A Directory Structure

    Appendix A Directory Structure Description On the USB memory stick, files are stored in certain directories. The following diagram is the default directory structure. Directory structure |--|CODES Import formats Possible import formats are *.cod, *.xml • (LandXML, HeXML) and *.csv Export formats Possible export format is *.xml (LandXML, •...
  • Page 58 877101-2.0.0en Original text (877101-2.0.0en) Published in Switzerland © 2019 Leica Geosystems AG, Heerbrugg, Switzerland Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland Phone +41 71 727 31 31 www.leica-geosystems.com...
