KYOWA WP-120A Getting Started Manual

IM-A-1420 December 2022

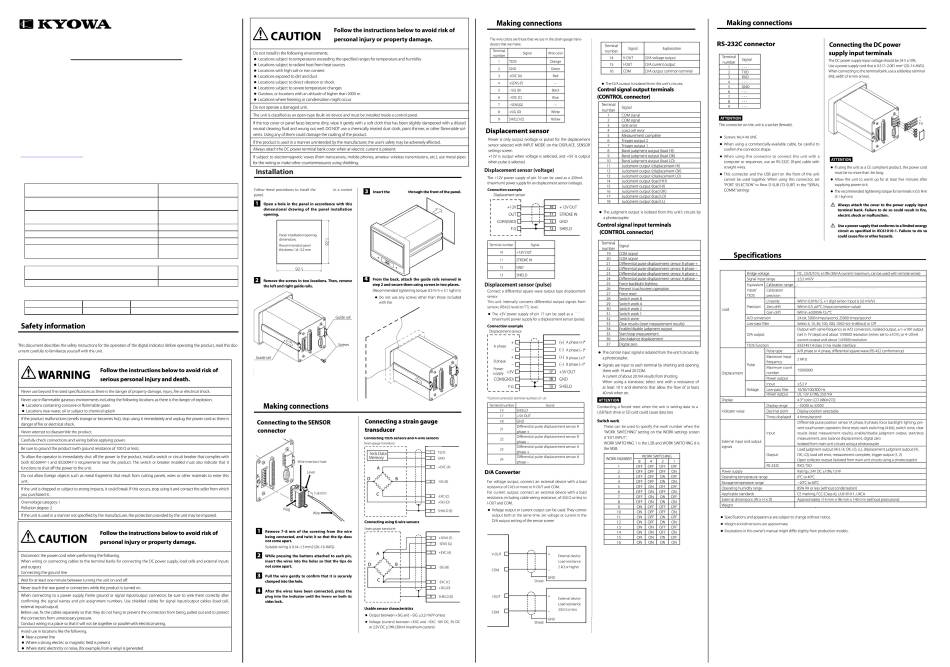

GETTING STARTED GUIDE
WP-120A

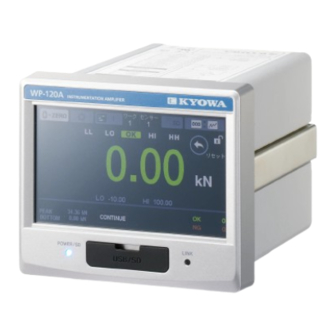

Instrumentation Amplifier
Thank you for purchasing KYOWA's product.
Read this Instruction Manual carefully in order to make full use of the high performance capabilities of the
product.
Do not use the product in methods other than described in this Manual and the detailed instruction manual.
The English version of the detailed instruction manual (IM-A-1424), the English version of the CC-Link
instruction manual (IM-A-1427), the English version of the EtherNet/IP instruction manual (IM-A-1429), and
the offline data viewer program "WP-DataViewer" for the WP-120A can be downloaded from our website
(https://www.kyowa-ei.com/eng/).
● SUPPLIED ITEMS
Check that all the following items have been included in the delivered package.
Common items
Plug for sensor connector
B2CF 3.50/18/180LR SN OR BX or Equivalent product 1
Plug connector for control connector
HDCB-37P(05) or Equivalent product 1
Plug case for control connector
HDC-CTH(4-40)(10) or Equivalent product 1
GETTING STARTED GUIDE 1
Product Warranty 1
INITIAL SETTING FOR ENGLISH
Cover for power input terminal block
(already mounted on main unit) 1
Additional items only to WP-120A-14
Plug for CC-Link communication connector
35A05-60S0-B0M GF or equivalent product 1
Ferrite core (SFT-59SNB) or equivalent product 1
● OPTIONAL ACCESSORIES
Optional accessories are shown below.
Name Model Notes
AC adapter UNI324-2410-CT Input：AC100～240V(50/60Hz)， output：DC24V
WP-120A
WP-120A
WP-120A
WP-120A
WP-120A
WP-120A
WP-120A
150mA
WP-120A
0.1 mV/V - 3.0 mV/V
Within 0.1% F.S(when using 1m standard KYOWA φ8,4-core shielded cable with
350Ω impedance,10V BV and 3.0 mV/V setting)
＋5 V ±10％ ,150 mA
WP-120A-10: 960 g ,WP-120A-14/15: 1040 g
