  • Page 1 Quick Guide AXE 45.0~60.0H-1HR-E1 AXE 15.0~40.0H-1HR-E1 Shenzhen Growatt New Energy Co., Ltd...

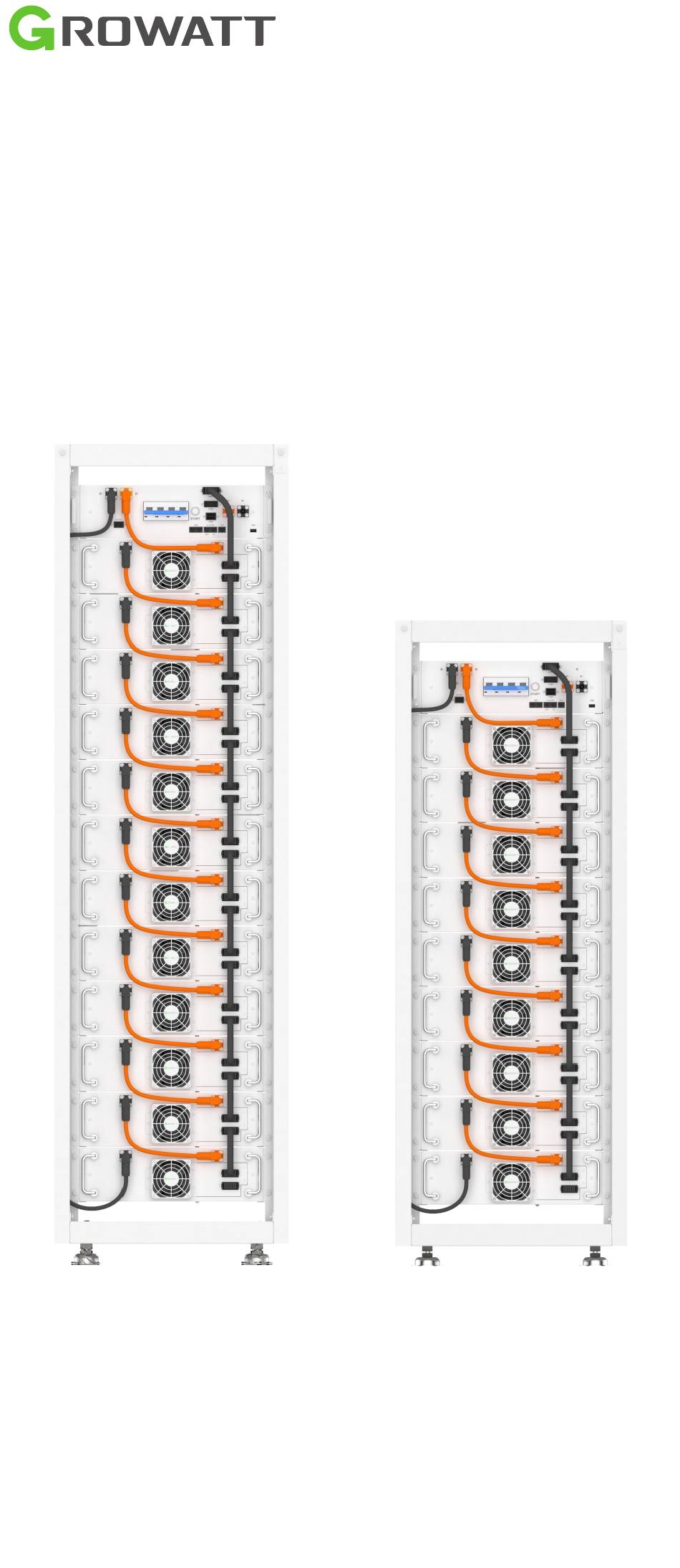

  • Page 2 Installation environment Max.+50℃ RH+5%~+95% Min.-10℃ Installation tools Cross-head Measuring tape Knife screwdriver Wrench Lifting platform Electric screwdriver Level Forklift Appearance & Dimensions This battery rack comes in two versions: for the standard version, up to 12 battery modules can be installed; for the smaller version, a maximum of 9 battery modules can be installed.
  • Page 3: Checking Before Installation

    1.Checking before installation Introduction to the rack components Right frame Left frame Diagonal support Dust-proof net Horizontal frame Quick installation guide Foot mount M6*16 screw Ground terminal Version Composition Standard A+B+4*C+2*D+12*E+4*F+95*G+1*H+2*I Smaller A+B+4*C+1*D+9*E+4*F+80*G+1*H+2*I Checking the package of high voltage box Warranty Card High voltage box (CM)
  • Page 4 2. omponent description Introduction to the panel of the high voltage box Position Item Description Connected to the negative power terminal of BAT- power terminal the battery cluster Connected to the positive power terminal of BAT+ power terminal the battery cluster Circuit breaker To control the battery output Start button...
  • Page 5: Installation

    3 Installation Installation of the rack 2N.m Level Assemble the right frame, left frame and 4 horizontal frames to form a rectangular support rack. Secure the horizontal frames to the left and right frames using the M6 combination screws. Attach the two diagonal supports to the rear of the rectangular rack using the M6 combination screws.
  • Page 6 Transportation of the rack When moving the equipment with a forklift, secure it properly according to the actual situation to avoid tip-overs.Note: Forklifts cannot transport racks with batteries installed. Strap Installation of environmental requirements The battery system is necessary to be installed in closed rooms at least 14km offshore, or closed rooms with air conditioning 5-14km offshore.
  • Page 7 4. Installation of battery modules and cable connections Wiring of the grounding cable of the rack Installation of battery modules 2N.m Install the dust filter at the rear of the battery module. Install the battery modules into the slots of the rack from bottom to top. Secure the battery modules to the rack using the M6 combination screws.
  • Page 8 Installation of the high voltage box The high-voltage box can be installed on the top or bottom of the battery rack. Top mounting is preferred. 2N.m Push the high voltage box to the topmost slot. Secure the high voltage box to the rack using the M6 combination screws. Cable connections Wiring of power cables between battery modules BM-CM positive power cable...
  • Page 9 Wiring of communication cables between battery modules COM3 COM1 COM2 COM1 Short-circuit connector cap The top battery pack COM1 is connected to the high-voltage box COM3 with a communication cable Connect the COM1 and COM2 terminals between the battery packs with a communication cable Bottom Battery Pack COM2 Terminal Insert short-circuit connector cap Wiring of cables between the rack and the PCS...
  • Page 10: Check Before Power-On

    Check before power-on Routine check Checking item Acceptance criteria Ÿ The equipment is intact, free from damage, rust or paint loss. If the paint flakes off, please re-paint the spotted Equipment area. appearance Ÿ Equipment labels are clear and damaged labels should be replaced in time.
  • Page 11: Electrical Schematic

    Primary schematic diagram of the energy storage system 8. Service and contact Shenzhen Growatt New Energy Co., Ltd. 4-13/F, Building A, Sino-German (Europe) Industrial Park, Hangcheng Blvd, Bao'an District, Shenzhen, China service@ginverter.com en.growatt.com For local customer support, please visit https://en.growatt.com/support/contact Download Manual GR-UM-463-A-00 (PN: 044.0136600)
