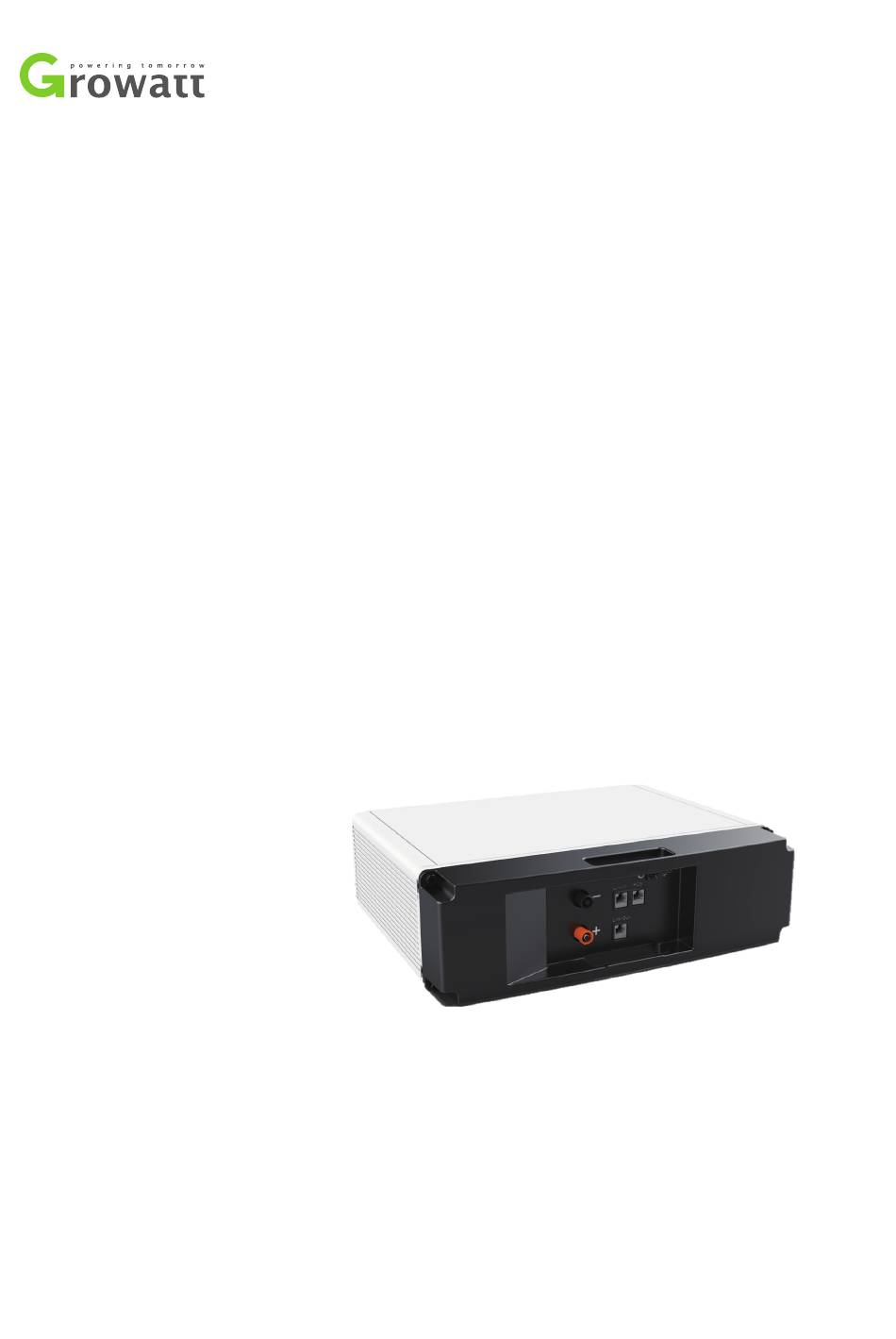

- Page 1 Shenzhen Growatt New Energy CO.,LTD Hope 3.3L-C1 Lithium Ion Standalone Battery Residential Energy Storage System Quick Guidance Version: V1.0 Date: 2020-10-12...
- Page 2 Read this Guidance carefully before installation to understand product features and safety precautions. * Operators should be well trained to fully understand grid-connected photovoltaic power system and national/regional standards. * Installers must use insulating tools and wear safety equipment. * Device damages caused noncompliance with storage, transportation, installation and usage requirements specified in Quick Guidance and Manual are not coved by Warranty.
- Page 3 ＊ Battery-connected PCS should have reinforced insulation. ＊ 2 Product Appearance Hope 3.3L-C1 battery is an energy storage unit composed of cells, mechanical parts, battery management system (BMS) as well as power and signal terminals. Table 2-1 Mechanical features Parameter Value 399.6...
-
Page 4: Technical Parameters
Table 2-2 Ports and terminals Label Name POWER LED1 LED2 LED3 LED4 LED5 Link-Out Network port 3 Positive terminal 1 Negative terminal 1 Link-In Network port 2 Network port 1 POWER POWER button Table 2-3 Network ports Pin No. PCS Link-In Link-Out RS485_B... -
Page 5: Package Items
Warranty Card In order to make a faulty claim, please fully read and clarify warranty terms in advance. Then let onsite engineer fill the information required in this card, sign and send back to Growatt or its authorized distributor. 1. Distributor name: 2. -
Page 6: Tools And Protective Equipment
5 Tools and Protective Equipment Before installing, operating, and maintaining the battery, you need to prepare tools and protection equipment to ensure safety. Screwdriver Multi-meter Tape Insulated gloves Safety goggle Safety shoes To prevent injury, always wear acid-resistant clothing, PVC gloves, goggles and rubber boots during installation, operation, and maintenance. - Page 7 The battery supports installation with bracket. At most 4 batteries can be athwart stacked. Check and confirm the battery is powered off before any process. Install the batteries in the following way: Step 1. Prepare brackets. Step 2. Set the battery into 2 pcs brackets from right and left. Aim at the 4 pairs of location holes, stack the batteries together, and hasp the 4 agraffes together.
-
Page 8: Electrical Connection
7 Electrical Connection The battery provides three network ports and two power terminals for electrical connection. You can connect one battery to your system or connect at most 6 batteries in parallel. 7.1 Connect One Battery Before connecting the cables, ensure that the battery is off. ... - Page 9 7.2 Connect Batteries in Parallel To increase the available amount of current and capacity, connect batteries in parallel. At most 6 pcs of batteries can be connected in parallel. Batteries in parallel should be manuractured within one year and have a cycle difference less than 300. Before installing and connecting the batteries, ensure that the voltage difference is not greater Step 1.
-
Page 10: Operation
8 Operation After the battery module is installed, you can power on/off the battery. When operating or maintain the battery module, please strictly follow the safety instruction below: You must be a technician who goes through technical training and obtains certificates in compliance with ... - Page 12 All Rights Reserved © Shenzhen Growatt New Energy CO., LTD Shenzhen Growatt New Energy CO., LTD T: +86 0755 2747 1942 E: service@ginverter.com W: www.ginverter.com Address: No.28 Guangming Road, Shiyan Street, Bao’an District, Shenzhen, P.R. China...
