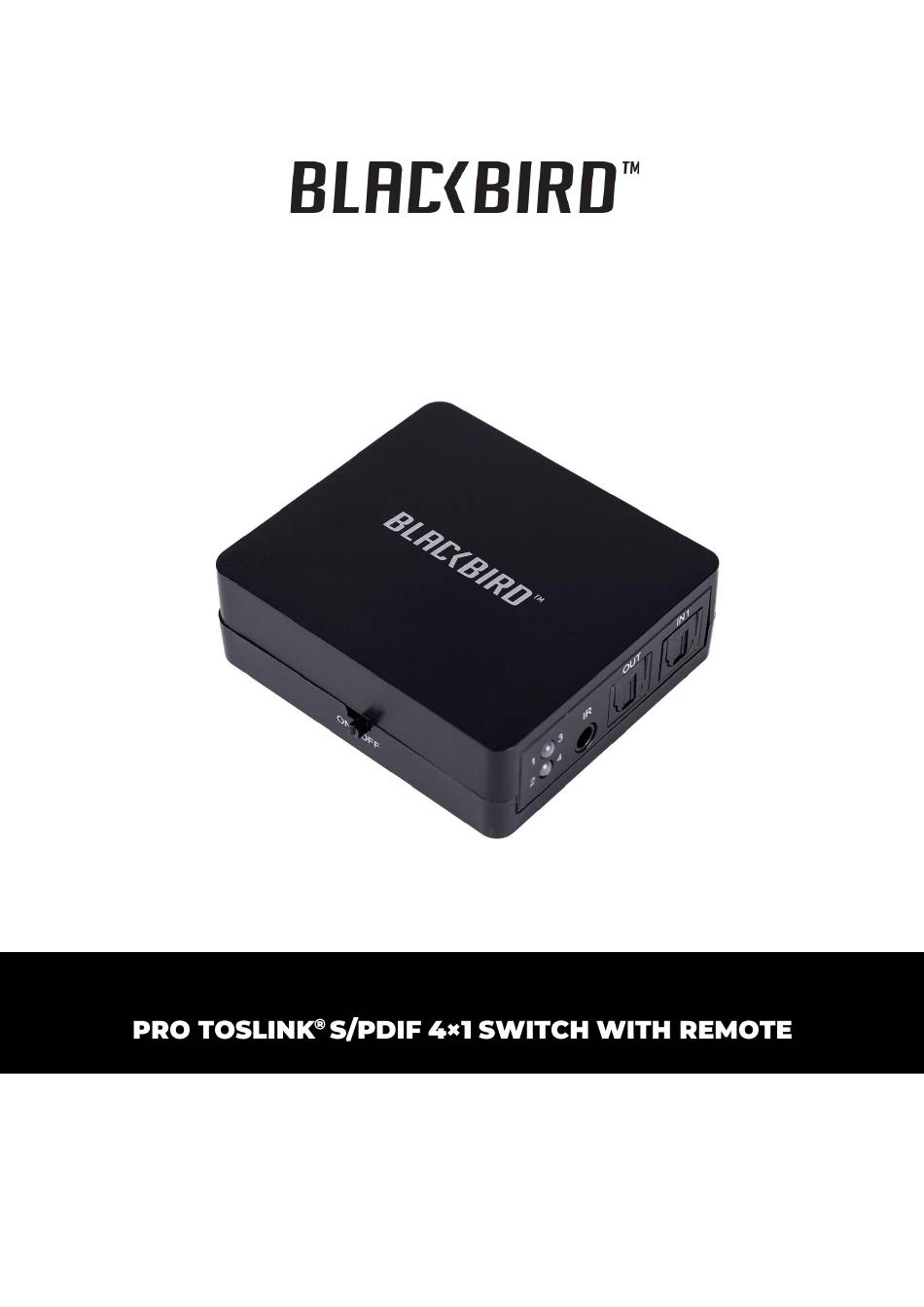

- Page 1 ™ ™ Blackbird by Monoprice 43392 User Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using the Blackbird Toslink® S/PDIF 4×1 Switch, paying extra ™ attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 Remote Control (Model): SWY-03 Remove and immediately recycle or dispose of used batteries according to local regulations and • keep them away from children. Do NOT dispose of batteries in household trash or incinerate them. Even used batteries may cause severe injury or death. •...
-
Page 4: Table Of Contents

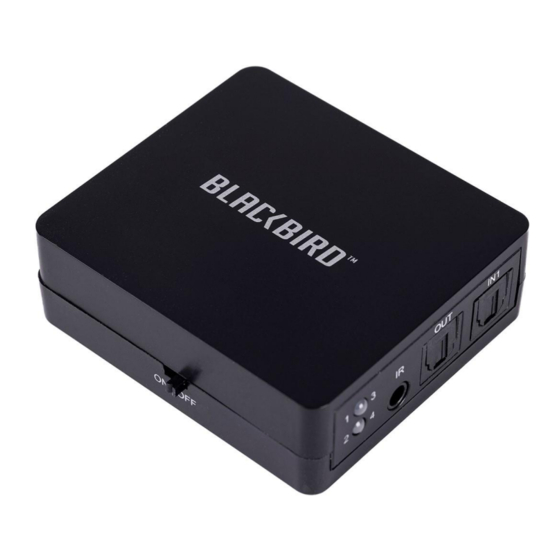

NOTICE FOR ISED CANADA ..........................9 DISPOSAL AND RECYCLING INFORMATION ......................9 INTRODUCTION The Blackbird Toslink® S/PDIF 4x1 Switch with Remote by Monoprice allows you to connect up to four ™ ™ Toslink digital optical S/PDIF audio source devices to a single output device, such as a television or amplifier. -
Page 5: Package Contents
PACKAGE CONTENTS Take an inventory of the package contents to make sure you have all the items listed below. Please contact Monoprice Customer Service for a replacement if anything is missing or damaged. 1x Toslink® S/PDIF 4×1 Switch 1x USB-powered cable •... -
Page 6: Connection Diagram
CONNECTION DIAGRAM CONNECTION Perform the following steps to connect the splitter to your system: Ensure all devices to be connected are powered off and disconnected from their power sources. 2. Using a Toslink® digital optical S/PDIF cable (available separately), plug one end into the optical input on your output device (amplifier, TV, etc.), then plug the other end into the OUT port on the switch. -
Page 7: Technical Specification
LED INDICATIONS SELECTED INPUT 1/3 LED 2/4 LED Blue Blue TECHNICAL SPECIFICATION 43392 Audio Inputs 4x Toslink® digital optical S/PDIF Audio Output 1x Toslink digital optical S/PDIF Supported Audio Formats 2-channel LPCM/DTS®/Dolby Digital™ Up to 131 ft (40 m) using an optical cable with a loss of less than 0.2 Output Cable Length dB/m Peak Wavelength... -
Page 8: Customer Service
If you have any problems with your order, please allow us to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support @ monoprice.com. Check the website for support times and links. -
Page 9: Notice For Ised Canada
, Blackbird ™ , the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - Page 10 Product pictures are for reference only. Brea, CA 92821 – USA Specifications described herein are subject to change without prior notification. www.monoprice.com Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. Copyright © 2024 Monoprice, Inc. All rights reserved.
