Summary of Contents for Monoprice Blackbird 39667

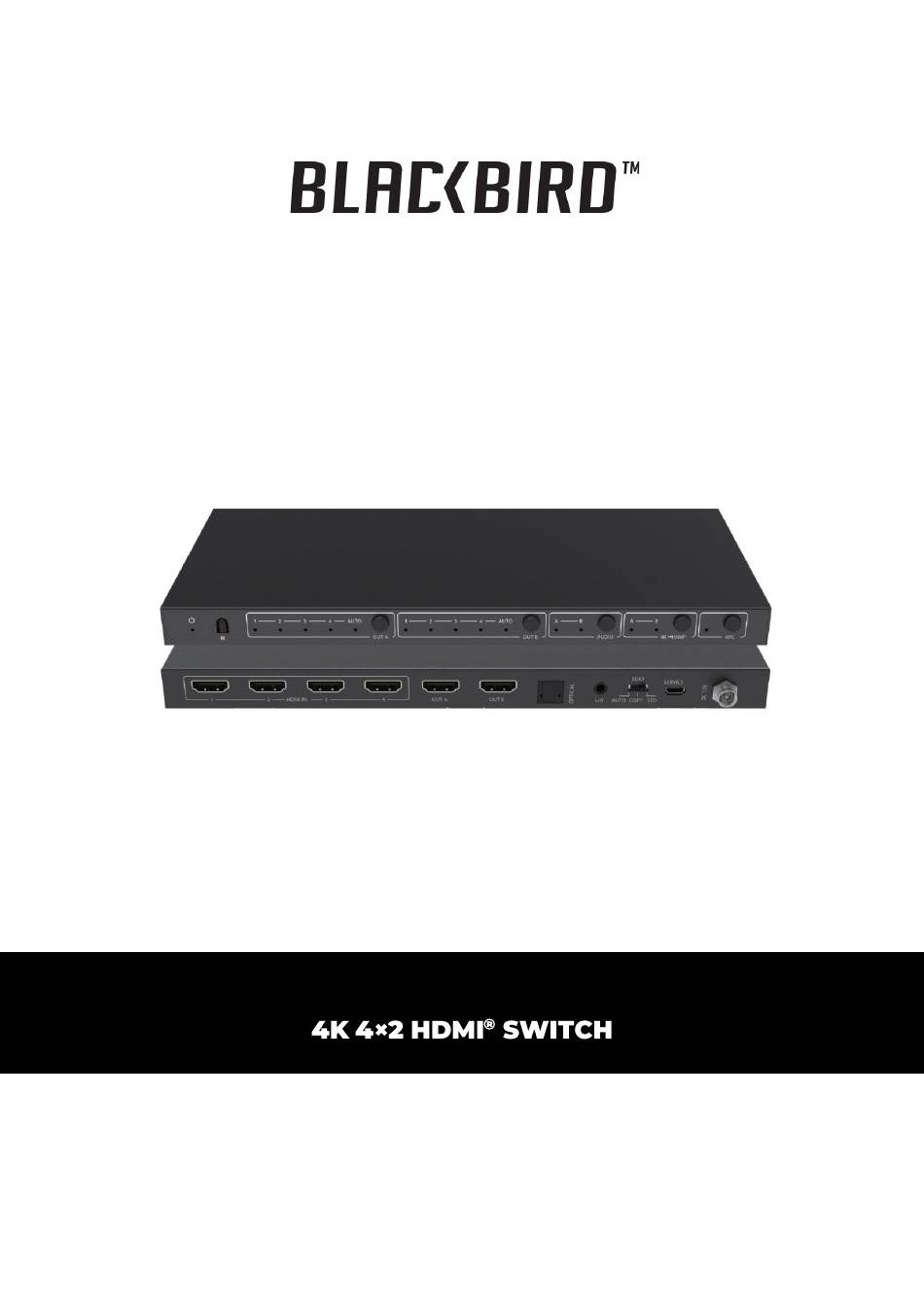

- Page 1 ™ ™ Blackbird by Monoprice 39667 User Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using the Blackbird 4K 4×2 HDMI® Matrix, paying extra attention to ™ these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 Remote Control (Model): YKQ-102 Remove and immediately recycle or dispose of used batteries according to local regulations and • keep them away from children. Do NOT dispose of batteries in household trash or incinerate them. Even used batteries may cause severe injury or death. •...
-
Page 4: Table Of Contents
NOTICE FOR ISED CANADA ..........................9 DISPOSAL AND RECYCLING INFORMATION ......................9 INTRODUCTION This Blackbird 4K 4×2 HDMI® Matrix by Monoprice allows you to distribute any of four HDMI sources to ™ ™ either or both connected displays. It fully complies with the HDMI 2.0b and HDCP 2.2 and 1.4... -
Page 5: Package Contents

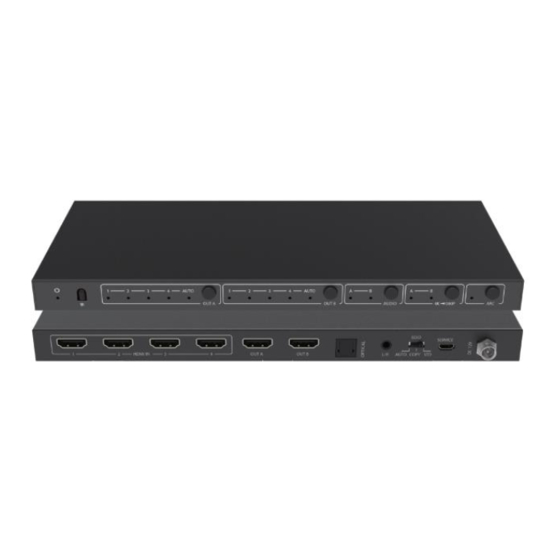

PACKAGE CONTENTS Take an inventory of the package contents to make sure you have all the items listed below. Please contact Monoprice Customer Service for a replacement if anything is missing or damaged. 1x 4K 4×2 HDMI® Matrix 2x Mounting Ears •... - Page 6 B. REAR PANEL HDMI IN Four HDMI inputs for connecting the video source devices. ® OUT A & OUT B Two HDMI outputs for connecting the video displays. ® OPTICAL & L/R Digital optical S/PDIF and 3.5mm stereo analog audio outputs. Three-position slide switch to select which EDID®...
-
Page 7: Connection Diagram
CONNECTION DIAGRAM TECHNICAL SPECIFICATION Model 39667 Inputs 4x HDMI® Video Outputs 2x HDMI Digital optical S/PDIF, Audio Outputs 3.5mm stereo analog Maximum Video Resolution 4K @ 60Hz with YCbCr 4:4:4 Video Bandwidth 18 Gbps HDMI Version 2.0b HDCP™ Version 2.2 and 1.4 Supported Color Spaces RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 8-bit, 10-bit, and 12-bit (1080p, 4K@30Hz, 4K@60Hz with YCbCr 4:2:0) -
Page 8: Customer Service
If you have any problems with your order, please allow us to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support @ monoprice.com. Check the website for support times and links. -
Page 9: Notice For Ised Canada
, Blackbird ™ , the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - Page 10 Product pictures are for reference only. Brea, CA 92821 – USA Specifications described herein are subject to change without prior notification. www.monoprice.com Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. Copyright © 2024 Monoprice, Inc. All rights reserved.
