- Page 1 MONOPRICE Blackbird 4K Pro 2x1 HDMI® Switch with HDCP 2.2 Support P/N 15261 User's Manual...
- Page 2 Introduction This is a high performance three HDMI input and one HDMI output switcher. The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K. Furthermore, the remote control gives uses to complete control over the selection of sources and makes the device incredibly user friendly. Package UHD 2x1 HDMI Switcher‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐1Pcs 5V/1A DC power adaptor‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐1Pcs Remote Control‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐1Pcs 38KHz IR Receiver Cable‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐1Pcs User manual‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐1pcs Feature Compliant with HDMI2.0, HDCP2.2 and DVI 1.0; Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0; Support 3D frame sequential video format up to 1080p@60; Support high resolution VESA mode video format up to QSXGA@60Hz; Supports LPCM 7.1CH, Dolby TrueHD, and DTS‐HD Master Audio; Supports smart auto switch function; Supports IR and Panel button control; Specification Video Bandwidth 300MHz/10.2 Gbps Input Ports 2 x HDMI (Female type) Output Ports 1 x HDMI (Female type) Output Resolution 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz with 12bit YCBCR 4:2:0,VGA~UXGA...

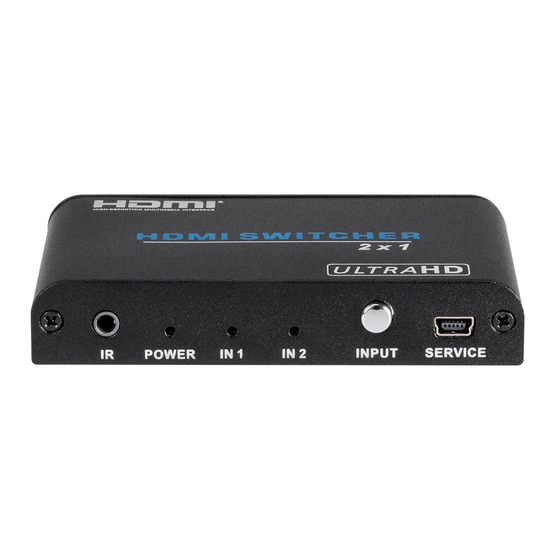

- Page 3 Connect and Operate Connect the signal sources such as Blu‐Ray Player, Play Station 3, satellite receivers and computers equipped with HDMI output interfaces with a short high‐speed HDMI cable to the HDMI input. Switcher Connect the HDMI outputs from the HDMI to high‐definition display Switcher devices such as HD‐LCD, HD‐DLP and HD projectors with HDMI input interfaces. Use high‐speed HDMI cables that are recommended for the distances that are required for each connection. The Switcher is powered by an external power supply which is included. Connect power first to the source, then to the Switcher and then to each HD TV or projector. 1. IR: Remote control receiver, the 3.5mm phone for HDMI switcher IR extension 2. POWER LED: This blue LED when the device is connected with illuminates...
- Page 4 power supply. 3. IN LED: These blue LEDs illuminate when the Source selected. 4. INPUT BUTTON: Press this button to select the input source. 5. SERVICE: Manufacturer use only. 6. HDMI IN1,2,: Connect the input port to the HDMI or DVI output of your source device such as a DVD player or set‐top box with HDMI cables. HDMI OUT : Connect the HDMI to an HDMI display. output 8. DC 5V: Plug the 5V DC power supply into the unit and the adaptor to an connect AC outlet Remote Control Input source select , the panel LED will indicate buttons the input source status . Connection Diagram...
