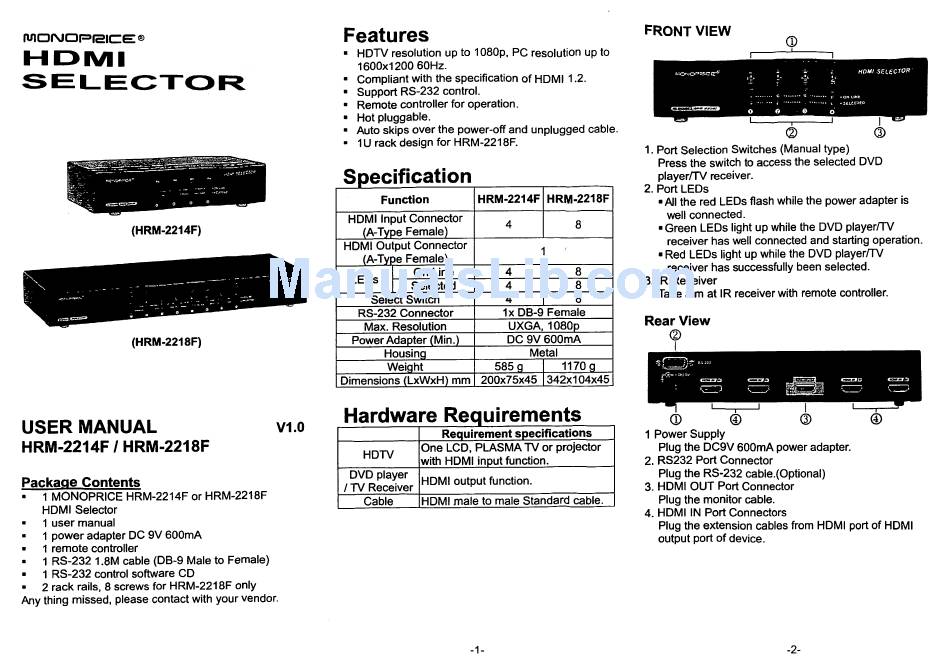

Monoprice HRM-2214F User Manual

MDIVII
(HRM-2214F)
(HRM-2218F)
USER MANUAL
HRM-2214F / HRM-2218F
V1.0
Package Contents
■ 1 MONOPRICE HRM-2214F or HRM-2218F
HDMI Selector
1 user manual
1 power adapter DC 9V 600mA
1 remote controller
1 RS-232 1.8M cable (DB-9 Male to Female)
1 RS-232 control software CD
2 rack rails, 8 screws for HRM-2218F only
Any thing missed, please contact with your vendor.
Features
■ HDTV resolution up to 1080p, PC resolution up to
1600x1200 60Hz.
Compliant with the specification of HDMI 1.2.
Support RS-232 control.
Remote controller for operation.
Hot pluggable.
Auto skips over the power-off and unplugged cable
1U rack design for HRM-2218F.
FRONT VIEW
1. Port Selection Switches (Manual type)
Press the switch to access the selected DVD
player/TV receiver.
2. Port LEDs
■ All the red LEDs flash while the power adapter is
well connected.
■ Green LEDs light up while the DVD player/TV
receiver has well connected and starting operation.
■ Red LEDs light up while the DVD player/TV
receiver has successfully been selected.
3. IR Receiver
Take aim at IR receiver with remote controller.
Rear View
1 Power Supply
Plug the DC9V 600mA power adapter.
2. RS232 Port Connector
Plug the RS-232 cable.(Optional)
3. HDMI OUT Port Connector
Plug the monitor cable.
4. HDMI IN Port Connectors
Plug the extension cables from HDMI port of HDMI
output port of device.
