Summary of Contents for Monoprice Blackbird PRO 30919

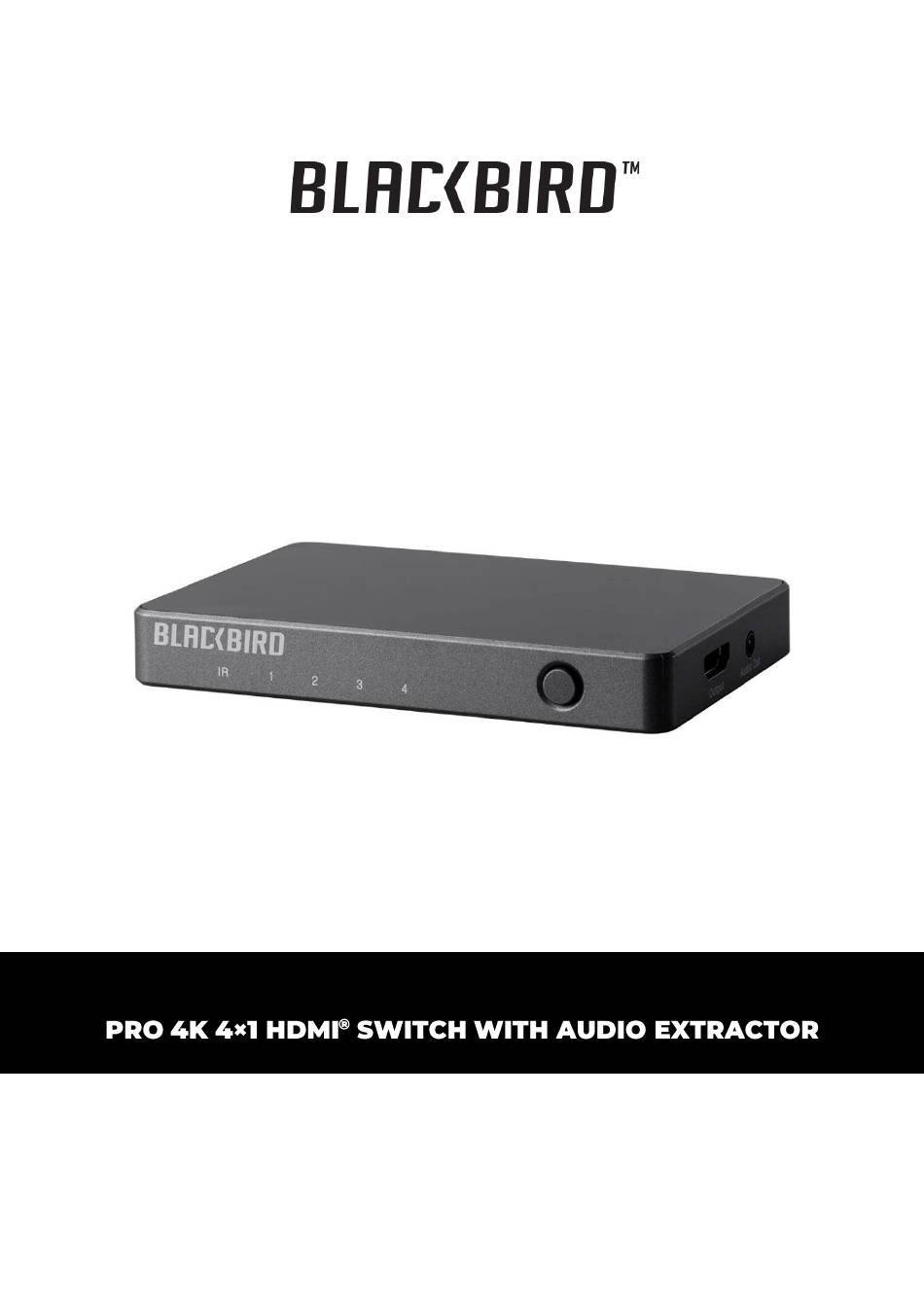

- Page 1 ™ ™ Blackbird by Monoprice 30919 User Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using the Blackbird 4K 4×1 HDMI® 2.0 Matrix, paying extra attention ™ to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 Remote Control (Model): YKQ-063 Remove and immediately recycle or dispose of used batteries according to local regulations and • keep them away from children. Do NOT dispose of batteries in household trash or incinerate them. Even used batteries may cause severe injury or death. •...
-
Page 4: Table Of Contents

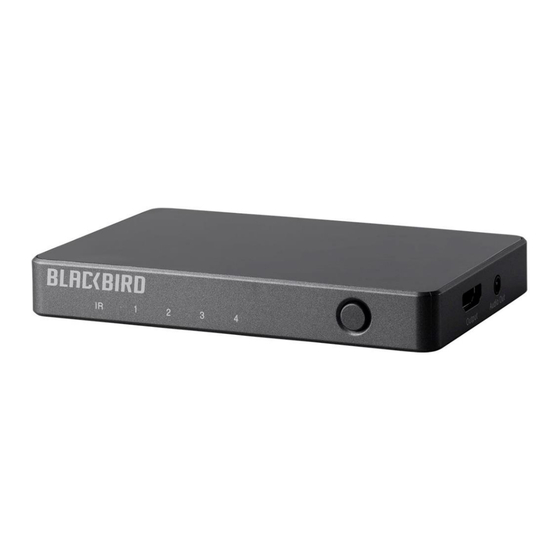

NOTICE FOR ISED CANADA ..........................9 DISPOSAL AND RECYCLING INFORMATION ......................9 INTRODUCTION This Blackbird Pro4K 4×1 HDMI® 2.0 Switch with Audio Extractor by Monoprice allows you to connect up ™ ™ to four HDMI® sources to a single display. It supports video resolutions up to 4K @ 60 Hz YUV4:4:4, including 1080p @ 120 Hz and 3D 1080p @ 60 Hz. -
Page 5: Package Contents
PACKAGE CONTENTS Take an inventory of the package contents to make sure you have all the items listed below. Please contact Monoprice Customer Service for a replacement if anything is missing or damaged. 1x 4K 4×1 HDMI® Switch 1x AC Power Adapter (5VDC, 1A) •... -
Page 6: Connection Diagram
CONNECTION DIAGRAM INSTALLATION Perform the following steps to install this switch to your home theater system. Ensure that all equipment to be connected is powered off and unplugged from its power source. 2. Place or mount the switch in its intended location. 3. -
Page 7: Technical Specification
TECHNICAL SPECIFICATION 30919 Video Inputs 4x HDMI® 1x HDMI Video Output 1x 3.5mm TRS stereo analog audio Maximum Video Resolution 4K @ 60 Hz YUV4:4:4, 4K @ 30Hz, 1080p @ 120 Hz, 3D 1080p @ 60 Hz Video Bandwidth 18 Gbps HDMI®... -
Page 8: Customer Service
If you have any problems with your order, please allow us to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support @ monoprice.com. Check the website for support times and links. -
Page 9: Notice For Ised Canada
Monoprice , Blackbird , the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - Page 10 Product pictures are for reference only. Brea, CA 92821 – USA Specifications described herein are subject to change without prior notification. www.monoprice.com Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. Copyright © 2024 Monoprice, Inc. All rights reserved.
