TRASSIR TR-D3351WDIR4 Manual

Specification
Model TR-D3351WDIR4
Image sensor 1/2.7" CMOS 5МP
Resolution 5MP(2592x1920) 4MP(2560x1440)
3MP(2304x1280) 2MP(1920x1080)
Frame rate 50Hz: 5MP@25fps
60Hz: 5MP@30fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode Mechanical ICR
Sensitivity 0.003Lux (F1.3)
up to 40 m
IR range
Lens (mm)
Field of view (horiz./vert.) 2.8mm: 99˚±5˚ / 72˚±5˚
3.6mm: 79˚±5˚ / 60˚±5˚
Axes setting Pan: 0˚-360˚
Tilt: 0˚-80˚
Rotation: 0˚-360˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265+ / Н.265 / H.264
Bitrate up to 8Mbps
Local storage MicroSD up to 256GB
Audio Built-in microphone
Audioinput / Audiooutput
Alarm inputs/outputs
Corridor mode
IVS
RTC
Power supply PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 4.0W
PoE: 5.6W
Case material
Dimensions (mm) Ø116.10 x 96.51
Weight Net/Gross (g) 520 / 650
Protection IP67, IK10
TVS 4000V
Power surge
suppressor
-40°C ... +60°C
Working temperature
Cold start
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8 / 3.6
3D DNR
1 / 1
Yes
Yes
No
3
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
-40°C

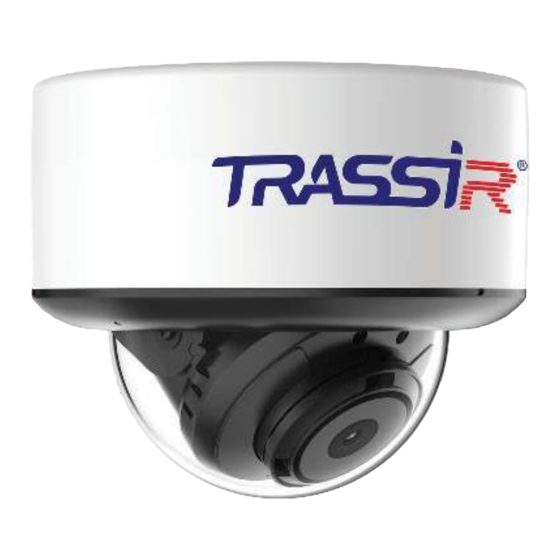

TR-D3351WDIR4
Vandal-proof IR Network Dome Camera
IK10
Note: read user manual before using
