TRASSIR TR-D3353WDZIR4 Quick Start Manual

Specification
Model TR-D3353WDZIR4
Image sensor 1/2.7" CMOS 5МP
Resolution 5MP(2592x1920) 4MP(2560x1440)
3MP(2304x1280) 2MP(1920x1080)
Frame rate 50Hz: 5MP@25fps
60Hz: 5MP@30fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode Mechanical ICR
Sensitivity 0.002Lux (F1.3)
up to 40 m
IR range
Lens (mm) 2.7 - 13.5 (motorzoom)
Field of view (horiz./vert.) 91˚-30˚±5˚ / 66˚-22˚±5˚
Axes setting Pan: 0°-360°
Tilt: 0°-80°
Rotation: 0°-360°
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265+ / Н.265 / H.264
Bitrate up to 8Mbps
Local storage MicroSD up to 256GB
Audio Built-in microphone
Audioinput / Audiooutput
Alarm inputs/outputs
Corridor mode
IVS
RTC
Power supply PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 7.4W
PoE: 9.6W
Case material
Dimensions (mm) Ø116.10 x 96.51
Weight Net/Gross (g) 520 / 650
Protection IP67, IK10
Power surge TVS 4000V
suppressor
Working temperature -40°C ... +60°C
Cold start
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
3D DNR
1 / 1
Yes
Yes
No
3
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
-40°C

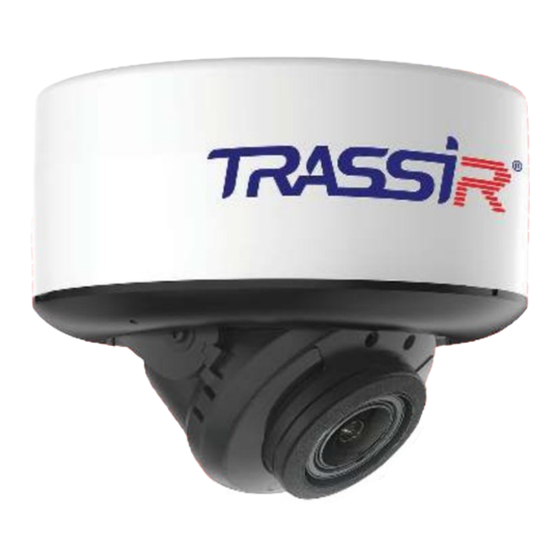

TR-D3353WDZIR4
Vandal-proof IR Network Dome Camera
IK10
Note: read user manual before using
