Specification
Model
TR-D3253WDZIR3
Image sensor
1/2.8" CMOS STARVIS 5MP
Resolution
5MP(2592x1944)
4MP(2592x1520)
Frame rate
5MP@20fps
4MP@25fps
Electronic shutter speed
1/2 ~ 1/1 000 s
Day/Night mode
Mechanical ICR
Sensitivity
0.002Lux (F1.3)
IR range
up to 30 m
Lens (mm)
2.7 - 13.5 (motor-zoom)
Field of view (horiz./vert.)
94.5˚-29.8˚ / 69˚-24.5˚
WDR
Real WDR (120dB)
Digital noise reduction
Video compression
Н.265+ / Н.265 / H.264
Bitrate
up to 8Mbps
Local storage
MicroSD up to 128GB
Audio
Built-in microphone
1 in / 1 out
Alarm In / Out
Corridor mode
IVS
Human detection
Line crossing
Intrusion detection
People Counting
Power supply
PoE (802.3af) / 12V DC
PoE Class
Power consumption
DC: 8.2W
PoE: 8.7W
Case material
Dimensions (mm)
Ø116.1 x 90.9
Weight Net/Gross (g)
450 / 550
Ingress protection
IP66, IK10
Lightning protection
TVS 4000V
Working temperature
-40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
3D DNR
1 / 1
Yes
Loitering
3
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D3253WDZIR3

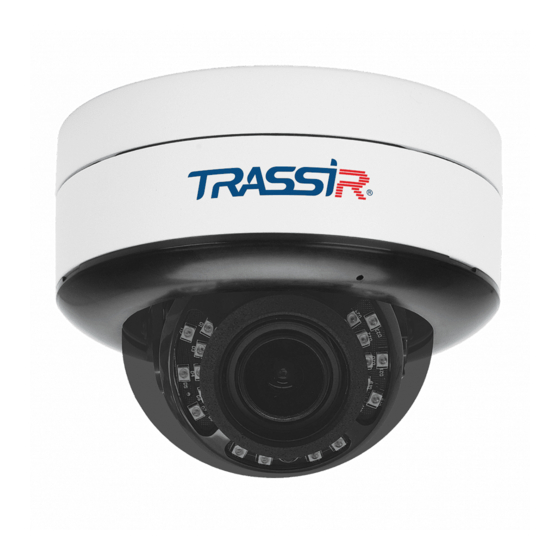

Vandal-proof IR Network Dome Camera
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TRASSIR TR-D3253WDZIR3
Summary of Contents for TRASSIR TR-D3253WDZIR3
- Page 1 450 / 550 Data ___________________________ Stamp ___________________________ Ingress protection IP66, IK10 Lightning protection TVS 4000V Here is the confirmation form for warranty assurance Working temperature -40°C … +60°C Note: read user manual before using Website: www.trassir.com For any inquiry: info@trassir.com...
- Page 2 ** Device must be grounded 2. Set up camera IP address using fast configuration utility that can be downloaded from www.trassir.com. 3. Change IP camera settings using TRASSIR professional software. ∅4,5 Camera package You can find detailed camera settings instructions in User Manual that can be downloaded from trassir.com.
