TRASSIR TR-D6224IR15 Manual

Specification
Model TR-D6224IR15
Image sensor 1/2.8" CMOS 2MP
Resolution FullHD(1920x1080)
Frame rate 50Hz: FullHD@25fps
60Hz: FullHD@30fps
Electronic shutter speed 1/1 ~ 1/100 000 s
"Day/Night" mode Mechanical ICR
Sensitivity 0.001Lux (F1.5)
IR range up to 150 m
Lens (мм)
4.8-120 mm, F1.5-F3.8
Field of view (horiz./vert.) 58.5˚ - 2.8˚ / 33.2˚ - 1.5˚
Optical zoom
Digital zoom
Pan: 0° ~ 360°(infinite)
Pan/Tilt Range Tilt: -16° ~ 90°
(autoflip to 180°)
Manual Control Speed Pan: 0.1°/s ~ 200°/s
Tilt: 0.1°/s ~ 120°/s
Preset Speed Pan: 240°/s
Tilt: 180°/s
Auto focus
WDR Real WDR (140dB)
Digital noise reduction 2DNR / 3DNR
Video compression Н.265 / H.264 / MJPEG
Bitrate
up to 16Mbps
Local storage MicroSD до 512Gb
Audio Two-way audio channel
ROI Yes (up to 7 zones)
IVS
RTC
Alarm IN/OUT
Power supply PoE (802.3at) / 12V DC
PoE Class
Power consumption PoE: 22W (IR on)
DC: 22W (IR on)
Case material Aluminium
Dimensions (mm) Ø161 x 276
Weight Net/Gross (g)
3000 / 5100
Protection
Power surge TVS 6000V
suppressor
Working temperature -30°C ... +70°C (IR on)
-30°C ... +40°C (IR on)
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
x25
x16
Yes
Yes
Yes
1 / 1
4
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
IP66

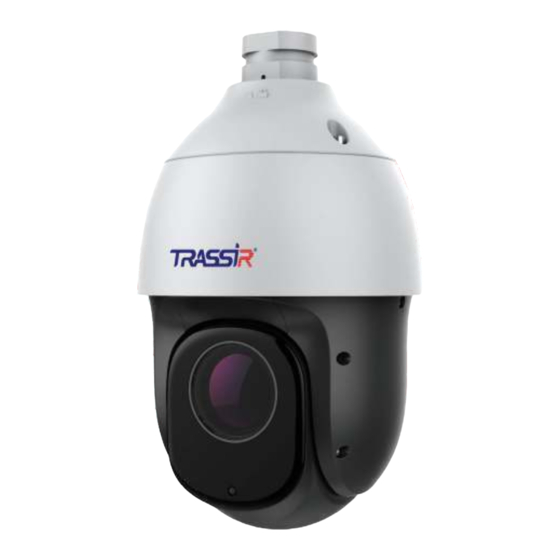

TR-D6224IR15
2MP IR outdoor high-speed PTZ camera
150m
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
ZOOM
x25
