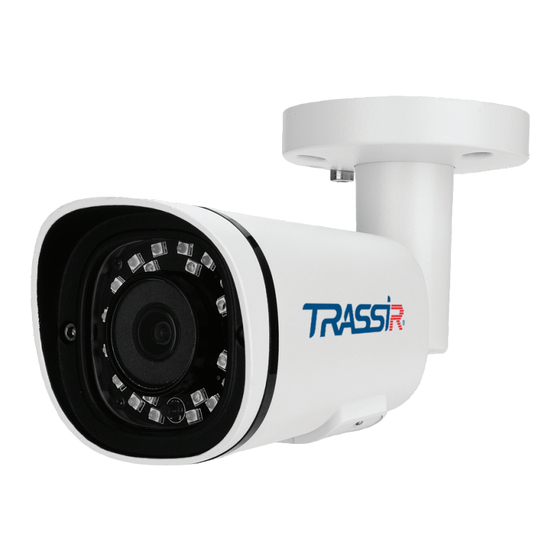

TRASSIR TR-D2121IR3 Manual

Specification
Model TR-D2121IR3
Image sensor 1/2.7" CMOS 2MP
Resolution FullHD(1920x1080)
Frame rate FullHD@25fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode
Mechanical ICR
Sensitivity 0.005Lux (F1.8)
IR range
up to 35 m
Lens (mm)
Field of view (horiz./vert.) 2.8mm: 100˚±5˚ / 54˚±5˚
3.6mm: 82˚±5˚ / 44˚±5˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265+ / Н.265 / H.264+ / H.264
Bitrate up to 8Mbps
Local storage MicroSD up to 128GB
Audio Built-in microphone
Corridor mode
IVS
Human detection
Line crossing
Intrusion detection
Power supply PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 3.4W
PoE: 3.9W
Case material
Dimensions (mm) 183.3 x 67.3 x 63.9
Weight Net/Gross (g) 460 / 565
Ingress protection
Lightning protection TVS 4000V
Working temperature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8 / 3.6
3D DNR
Yes
3
Metal
IP67
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D2121IR3
Outdoor IR Network Camera
H.265
2MP
HEVC
-40°
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
