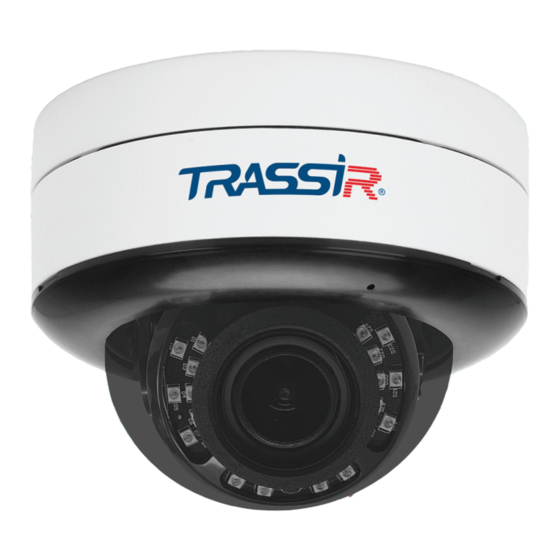

TRASSIR TR-D3123IR2 Quick Start Manual

Specification
Model TR-D3123IR2
Image sensor 1/2.7" CMOS 2MP
Resolution FullHD(1920x1080)
Frame rate FullHD@25fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode
Mechanical ICR
Sensitivity 0.003Lux (F1.6)
IR range
up to 25 m
Lens (mm) 2.7 - 13.5
Field of view (horiz./vert.) 100˚-28˚±5˚ / 56˚-15˚±5˚
Tilt/Rotation Range Rotation: 0°–340°
Tilt: 0°–70°
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265+ / Н.265 / H.264+ / H.264
Bitrate up to 8Mbps
Local storage MicroSD up to 128GB
Audio Built-in microphone
1 in / 1 out
Corridor mode
IVS
Human Detection
Line Crossing
Intrusion Detection
Power supply PoE (802.3af) / 12V DC
PoE Clas
Power consumption DC: 3.6W
PoE: 3.9W
Case material
Dimensions (mm) Ø116.1 x 90.9
Weight Net/Gross (g) 520 / 650
Ingress protection IP66, IK10
Lightning protection TVS 4000V
Working temperature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
3D DNR
Yes
3
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D3123IR2
Outdoor IR Network Camera
2MP H.265
HEVC
IK10
-40°
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
VARIO
2.7-13.5
