Specification
Model
TR-D2D5
Image sensor
1/2.9" CMOS 2MP
Resolution
FullHD(1920x1080)
Frame rate
FullHD@25fps
Electronic shutter speed
1/2 ~ 1/1 000 s
Day/Night Mode
Mechanical ICR
Sensitivity
0.005Lux (F1.8)
IR range
up to 15 m
Lens (mm)
Field of view(horiz./vert.)
2.8mm: 98˚±5˚ / 53˚±5˚
3.6mm: 81˚±5˚ / 44˚±5˚
WDR
Real WDR(105dB)
Digital noise Reduction
Video compression
Н.265+ / Н.265 / H.264+ / H.264
Bitrate
up to 8Mbps
IVS
Human detection
Line crossing
Intrusion detection
Corridor mode
Power supply
PoE (802.3af) / 12V DC
PoE Class
Power consumption
DC: 2.1W
PoE: 2.4W
Case material
Dimensions (mm)
Ø95 x 63
Weight Net/Gross (g)
295 / 385
Protection level
IP66, IK10
Lightning protection
TVS 4000V
Operating conditions
-40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8 / 3.6
3D DNR
Yes
3
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

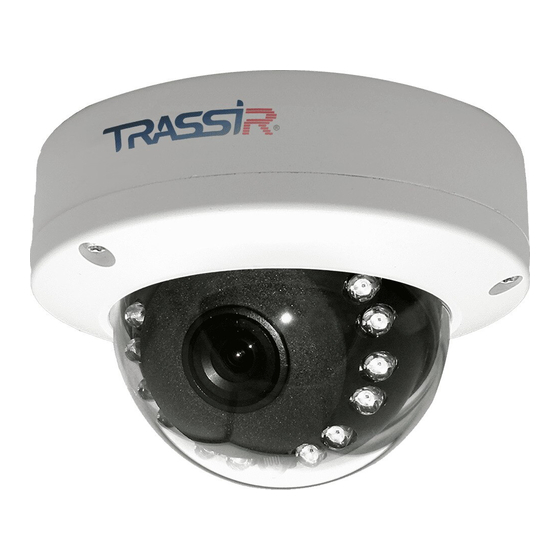

TR-D2D5
Outdoor IR Network Camera
H.265
HEVC
IK10
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
Advertisement
Related Manuals for TRASSIR TR-D2D5
Summary of Contents for TRASSIR TR-D2D5
- Page 1 Protection level IP66, IK10 Lightning protection TVS 4000V Operating conditions -40°C … +60°C H.265 HEVC Data ___________________________ Stamp ___________________________ IK10 Here is the confirmation form for warranty assurance Note: read user manual before using Website: www.trassir.com For any inquiry: info@trassir.com...
- Page 2 2. Set up camera IP address using fast configuration utility that can ∅95 be downloaded from www.trassir.com. 66,7 3. Change IP camera settings using TRASSIR professional software. Camera package You can find detailed camera settings instructions in User Manual that can be downloaded from trassir.com.
