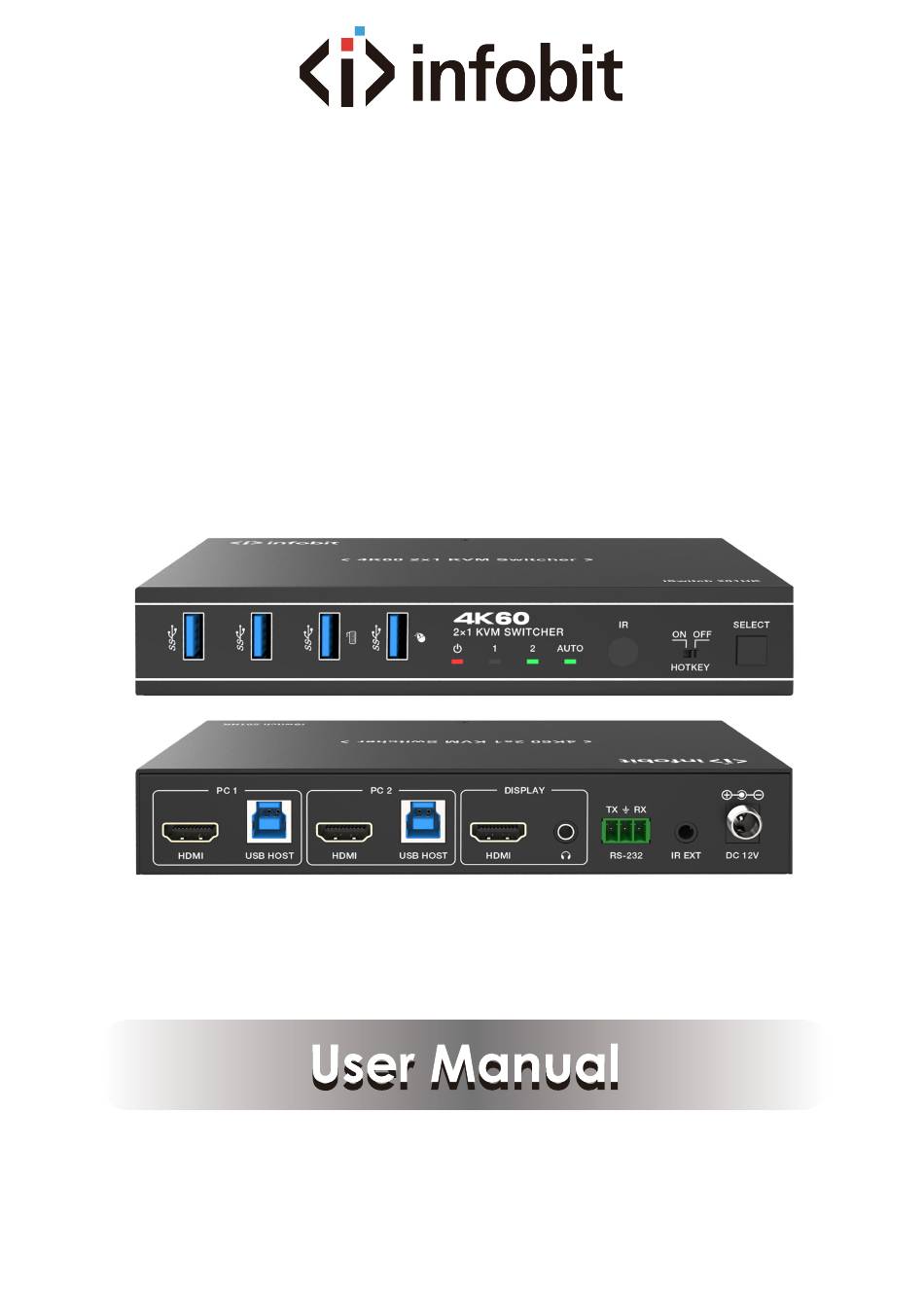

- Page 1 201HK 4K60 2x1 KVM Switcher VER 1.0 www.infobitav.com info@infobitav.com...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction This is a 2x1 KVM Switcher with hotkey switching. It supports resolutions up to 4K@60Hz 4:4:4 8bit and can also transmit USB 3.0 signal up to 5Gbps for KVM function. The switcher features virtual interaction function, so that it can automatically wake up the connected PC that is in standby mode, which can reduce the switching time. -
Page 4: Package Contents
3. Package Contents ① 1 x 4K60 2x1 KVM Switcher ② 1 x IR Remote ③ 1 x 3pin-3.81mm Phoenix Connector (male) ④ 1 x Fixed Frequency 38KHz IR Receiver Cable (1.5 meters) ⑤ 2 x USB Cable (USB 3.0, AM to BM, 1.8 meters) ⑥... - Page 5 IEC 61000-4-2: ESD Protection ±8kV (Air-gap discharge), ±4kV (Contact discharge) Connection Input ports 2 x HDMI input [Type A, 19-pin female] 1 x HDMI output [Type A, 19-pin female] Output ports 1 x L/R audio output [3.5mm Stereo Mini-jack] 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack] Control ports 2 x USB HOST [USB Type B]...
-
Page 6: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel SELECT AUTO HOTKEY Name Function Description USB 3.2 Gen 1 device ports, connected to USB 3.0 flash disk, USB 3.0 ports camera, printer etc. ▪ When Hotkey switch to OFF mode, these two ports support USB 3.0 ports USB 3.2 Gen 1 device. -
Page 7: Rear Panel
5.2 Rear Panel PC 1 PC 2 DISPLAY HDMI USB HOST HDMI USB HOST HDMI RS-232 IR EXT DC 12V Name Function Description HDMI: HDMI signal input port, connected to HDMI source device such as PC with HDMI cable. PC 1 ports USB HOST: USB Host port, connected to PC 1. -
Page 8: Ir Pin Definition
5.3 IR Pin Definition IR Receiver pin’s definition is as below: IR Receiver IR Signal Power Grounding IR RECEIVER 6. IR Remote ① Power on or Standby: Press this button to power on the switcher or set it to standby mode. ②... -
Page 9: Hotkey Switch Function
7. Hotkey Switch Function The Hotkey switch on the front panel allows you to enable/disable the hotkey switch function. (1) When Hotkey switch to OFF mode, the hotkey switch function is disabled, and two USB 3.0 ports (with hotkey mode) support USB 3.2 Gen 1 device. (2) When Hotkey switch to ON mode, the hotkey switch function is enabled, and two USB 3.0 ports (with hotkey mode) only support USB 1.1 mouse and keyboard, which can be used for hotkey switching. -
Page 10: Ascii Commands
9. ASCII Commands The product also supports ASCII commands control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable and an RS-232 to USB cable. The connection method is as follows. Ground 3-pin Phoenix Connector RS-232 RS-232 to USB cable Then, open a Serial Command tool on PC to send ASCII commands to... - Page 11 Command Code Function Description Example Feedback Default Setting Set output 1 stream enable/ output 1 stream: disable (x=0~1) output 1 stream: s output 1 s output 1 enable 0. disable output stream enable stream x! stream 1! 1. enable output stream r output 1 r output 1 output 1 stream:...
-
Page 12: Application Example
10. Application Example...
