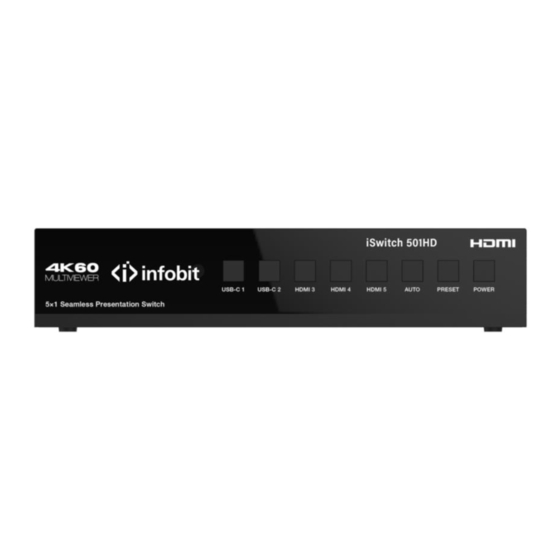

infobit iSwitch 501HD User Manual

5x1 hdmi/usb-c 4k60, seamless presentation switch with hdbaset 3.0 70m out
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

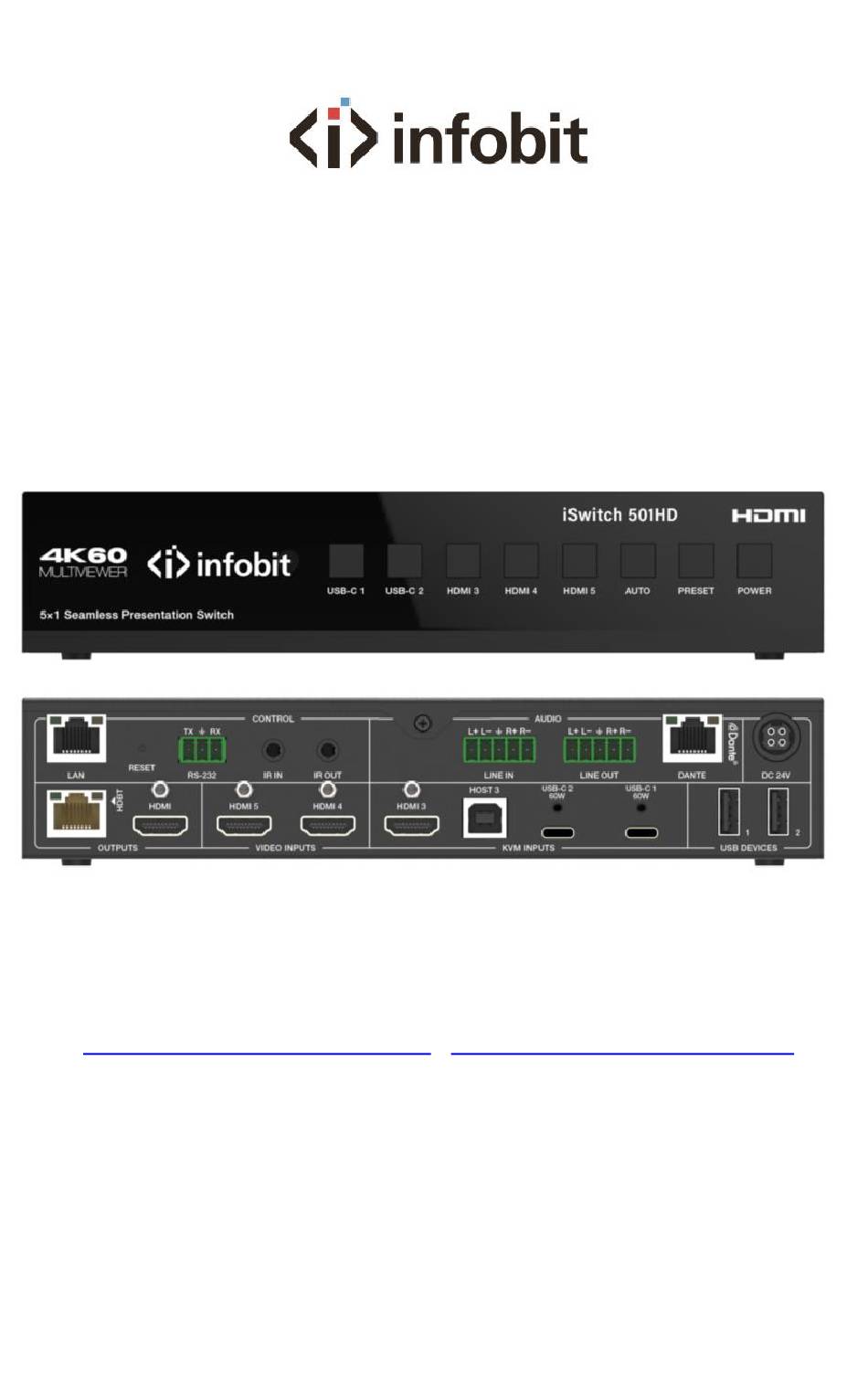

iSwitch 501HD
5x1 HDMI/USB-C 4K60
Seamless Presentation Switch with HDBaseT 3.0 70m Out
VER 1.0
www.infobitav.com info@infobitav.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iSwitch 501HD and is the answer not in the manual?

Questions and answers

Related Manuals for infobit iSwitch 501HD

Summary of Contents for infobit iSwitch 501HD

  • Page 1 501HD 5x1 HDMI/USB-C 4K60 Seamless Presentation Switch with HDBaseT 3.0 70m Out VER 1.0 www.infobitav.com info@infobitav.com...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction This 5x1 seamless presentation switch features 3 HDMI inputs, 2 USB-C inputs (DP Alt mode, USB 2.0, 100M Ethernet and 60W charging), 1 HDMI output and 1 HDBT mirrored output. HDBT supports standard PoE power supply and can extend uncompressed signal up to a distance of 230ft/70m (4K@30Hz 4:4:4) or 131ft/40m (4K@60Hz 4:4:4) via a single CAT6A (F/FTP) cable.

  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 DP Version DP 1.2 Video Bandwidth 18Gbps 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@50Hz/ Input Video Resolution 60Hz 4:4:4 Auto, 3840x2160p60, 3840x2160p50, 4096x2160p60, 4096x2160p50, 3840x2160p30, 3840x2160p25, 1920x Output Video Resolution 1200p60RB, 1920x1080p60, 1920x1080p50, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60 IR Level 12Vp-p...

  • Page 5: Operation Controls And Functions

    Mechanical Housing Front panel: Aluminum; Rear case: Metal Enclosure Color Black Transmitter: 220mm [W]×150mm [D]×44mm [H] Dimensions Receiver: 140mm [W]×105mm [D]×21.5mm [H] Weight Transmitter: 1.21Kg; Receiver: 424g Input: AC100 - 240V 50/60Hz Power Supply Output: DC 24V/8A (US/EU standard, CE/FCC/UL certified) Power Consumption 150W (Max) Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F...
  • Page 6 Name Function Description Press this button to enable/disable the auto switching function. AUTO button When the auto switching function is enabled, the button light will be on. Press this button to cycle through the preset application scenes. The button light will automatically turn off after 1 second each PRESET button time.

  • Page 7: Hdbaset Receiver Panel

    Name Function Description Analog audio output port, supporting balanced audio output (with a maximum support of 2Vrms) and unbalanced audio output (with LINE OUT port a maximum support of 1Vrms). Balanced connection method: L+, L -, , R+, R- Unbalanced connection method: L+, , R+ Dante Network port, connected to the Switch with other Dante DANTE port receivers.
  • Page 8 Name Function Description Power LED When the receiver is powered on, the red power LED will be on. ▪ Light on: Transmitter and Receiver are in good connection status. ▪ Light flashing: Transmitter and Receiver are in poor connection LINK LED status.

  • Page 9: Ir Cable Pin Assignment

    5.3 IR Cable Pin Assignment The pin assignment of the IR Receiver cable and IR Blaster cable is as below: Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters.

  • Page 10: Web Gui User Guide

    7. Web GUI User Guide The presentation switch can be controlled by Web GUI. The operation method is shown as below: Step 1: Get the current IP Address. The default IP address is 192.168.0.100 (when the system is not connected to a router). You can get the current switch IP address via RS-232 command control.
  • Page 11 The default usernames and passwords are as below: Username User Admin Password user admin Select the username “User” and input the password “user”, then click the “Login” button to enter the User page. ■ User Page You can do the following operations on the User page: ①...
  • Page 12 The Information page provides basic information about the model name, software version IP information and the current machine temperature. Besides, you can do the following operations on each page of the Admin interface. ① Display and set the audio volume of Master Out. Press the volume icons to increase/ decrease the audio volume of Master Out, or press the mute icon to mute/unmute the audio of Master Out.
  • Page 13 ■ EDID Page You can do the following operations on the EDID page. ① Click the drop-down list to set EDID for each input port. The EDID list is as below. EDID Mode EDID Mode 1680x1050, Stereo Audio 2.0 Auto Copy HDMI OUT 1600x1200, Stereo Audio 2.0 Copy HDBT OUT...
  • Page 14 ■ Video Page Switch Mode ① Auto Switch: You can turn on/off the auto switching function. ② Fallback Input: Click the drop-down list to select Auto\USB-C 1\USB-C 2\HDMI 3\HDMI 4\ HDMI 5 as the signal source of Fallback input. When the auto switching function is turned on and the current input source is disconnected, the Fallback input signal source will be selected automatically.
  • Page 15 Output Setting ① Resolution: Click the drop-down list to select the output resolution. The output resolution list is as following. Output Resolution Output Resolution Auto 1920x1080p60 3840x2160p60 1920x1080p50 3840x2160p50 1360x768p60 4096x2160p60 1280x800p60 4096x2160p50 1280x720p60 3840x2160p30 1280x720p50 1024x768p60 3840x2160p25 1920x1200p60RB Note: When the output resolution is set to Auto, the switch will output the matching resolution based on the EDID of the back-end TV.
  • Page 16 Source Select ① Main In: Click the drop-down list to select the signal source for Main In. ② HDMI/HDBT Out: Click the drop-down list to select the signal source for HDMI/HDBT Out. ③ Line Out: Click the drop-down list to select the signal source for Line Out. ④...
  • Page 17 USB Switch ① Follow Video: Click this button to set the USB transmission follow the video. It will follow the video output of window 1 in multiview mode. ② Manual Switch: Switch to USB-C 1\USB-C 2\Host 3 manually. ③ Auto Switch: Detect and switch to USB-C 1\USB-C 2\Host 3 automatically. After setting up, click “Save”...
  • Page 18 ■ Network Page ① Network Configuration: You can set the IP Mode (DHCP/Static), IP Address, Subnet Mask, Gateway, Telnet Port and Domain Name. Note: The Domain Name “PS51KVM-75AA.local” can be used to login the Web GUI. ② Account Passwords: You can modify the login password for User and Admin. After setting up, click “Save”...

  • Page 19: Dante Web Gui User Guide

    ③ Auto Power off Timer: Click the drop-down list to select the delay time for sending the command to turn off the display device when the transmitter is in standby mode or there is no signal input. ④ Control Type: Click the drop-down list to select the control type. System Utilities ①...
  • Page 20 Step 4: Click the Device Info tab to check the IP address of the Dante device. Step 5: Input the IP address of Dante device into your browser on the PC to enter the login interface of the Dante Web GUI. Step 6: Select the default username “Admin”...
  • Page 21 ■ Information Page The Information page provides basic information about the model name, software version and IP information. ■ Network Page On the Network page, you can set the IP Mode (DHCP/Static), IP Address, Subnet Mask, Gateway, Telnet Port, TCP Port and Domain Name. The product model can be modified. Note: The Domain Name “DEP22-010733.local”...

  • Page 22: Rs-232 Control Command

    ■ System Page You can do the following operations on the System page: ① Account Passwords: You can modify the login password for Admin. After inputting the old password, new password and confirm password, click “Save” to take effect. ② Firmware Update: You can update the firmware and DEP SDK software. Click “Browse” to select the update file, and then click “Update”.
  • Page 23 ASCII Command Serial port protocol: Baud rate: 115200 (default), Data bits: 8bit, Stop bits:1, Parity bit: none TCP/IP protocol port: 8000 x - Parameter 1, y - Parameter 2 Function Description Example Feedback Command Code Default Setting System Setting =================== Help Info MCU 1.1.0 Web 1.1.0 Scaler 20230228-10...
  • Page 24 Function Description Example Feedback Command Code Default Setting Set USB-C access network s UsbcAccess s UsbcAccess feature on/off (x=0~1) USB-C Access Network: Network 1 Network x 0. Off 1. On r UsbcAccess Get USB-C access network r UsbcAccess USB-C Access Network: Network feature on/off Network...
  • Page 25 Function Description Example Feedback Command Code Default Setting Output Setting Set Output Resolution (x=1~15) x=1: Auto x=2: 3840x2160p60 x=3: 3840x2160p50 x=4: 4096x2160p60 x=5: 4096x2160p50 x=6: 3840x2160p30 x=7: 3840x2160p25 Out Resolution: Auto s output res x s output res 1 x=8: 1920x1200p60RB x=9: 1920x1080p60 x=10: 1920x1080p50 x=11: 1360x768p60...
  • Page 26 Command Code Function Description Example Feedback Default Setting Set output (x=0~3) audio source from (y=1~3) x=0: all outputs (HDMI/HDBT, Output HDMI/HDBT Audio: Line, Dante) Main In (HDMI/USB-C In) x=1: HDMI/HDBT Out Output Line Audio: Main s output 0 audio 1 s output x audio y x=2: Line Out In (HDMI/USB-C In)
  • Page 27 Function Description Example Feedback Command Code Default Setting Set master output member (x/y/z=0~1) x=0: Exclude HDMI/HDBT Out x=1: Include HDMI/HDBT Out s master member s master member Master Member: 111 x y z y=0: Exclude Line Out 1 1 1 y=1: Include Line Out z=0: Exclude Dante Out z=1: Include Dante Out...
  • Page 28 Function Description Example Feedback Command Code Default Setting Get output (x=0~3) audio mute Output HDMI/HDBT on/off Audio Mute: On x=0: all outputs (HDMI/HDBT, Output Line Audio Mute: r output x audio r output 0 audio Line, Dante) mute mute x=1: HDMI/HDBT Out Output Dante Audio x=2: Line Out Mute: On...
  • Page 29 Function Description Example Feedback Command Code Default Setting Set output (x=0~3) audio GEQ to preset (y=1~6) x=0: all outputs (HDMI/HDBT, Line, Dante) Output HDMI/HDBT x=1: HDMI/HDBT Out Audio EQ Preset 1 x=2: Line Out Output Line Audio EQ s output x audio s output 0 audio x=3: Dante Out Preset 1...
  • Page 30 Function Description Example Feedback Command Code Default Setting Set window (x=0~4) source from (y=1~5) x=0: All Windows x=1: Window 1 x=2: Window 2 x=3: Window 3 s window 1 in 1 s window x in y Window 1 in USB-C 1 x=4: Window 4 y=1: USB-C 1 y=2: USB-C 2...
  • Page 31 Function Description Example Feedback Command Code Default Setting Set quad windows display aspect ratio (x=1~2) Quad Aspect: Full Screen 1 s quad aspect x s quad aspect 1 x=1: Full screen x=2: 16:9 Get quad windows display r quad aspect r quad aspect Quad Aspect: Full Screen aspect ratio...
  • Page 32 Function Description Example Feedback Command Code Default Setting Set auto power off command (CEC/RS-232) will be sent out after x (x=1~6) x=1: 5 sec s auto power off s auto power off Auto Power Off Timer: x=2: 10 sec timer x timer 4 1 min x=3: 30 sec...
  • Page 33 Function Description Example Feedback Command Code Default Setting Recall a specified preset into unit (x=1~5) All settings except network setting. x=1: Preset 1 Preset Recall: Preset 1 s preset recall x s preset recall 1 x=2: Preset 2 x=3: Preset 3 x=4: Preset 4 x=5: Preset 5 Clear a specified preset into unit...
  • Page 34 Function Description Example Feedback Command Code Default Setting Subnet Mask: 255.255.255.0 (Please use "s net reboot!" command or s subnet s subnet Set network subnet mask repower device to apply 255.255.255.0 xxx.xxx.xxx.xxx new config!) DHCP on, Device can't config subnet mask, set DHCP off first.
  • Page 35 Note: The feedback of the command of “r status” is as following. ========================================================================================== Status Info TX 1.01.04 Web check Scaler 20230626-15 FPGA 2.00.05 RX 1.18.02 Input Cable Resolution ColorSpace ColorDepth HDCP EDID USB-C 1 Connected 1920x1080p60 8bit AUTO USB-C 2 Connected 1920x1080p60 8bit...

  • Page 36: Connection Diagram

    10. Connection Diagram 34 / 34...
