IKONIX TVB-2 Instruction Sheet page 5

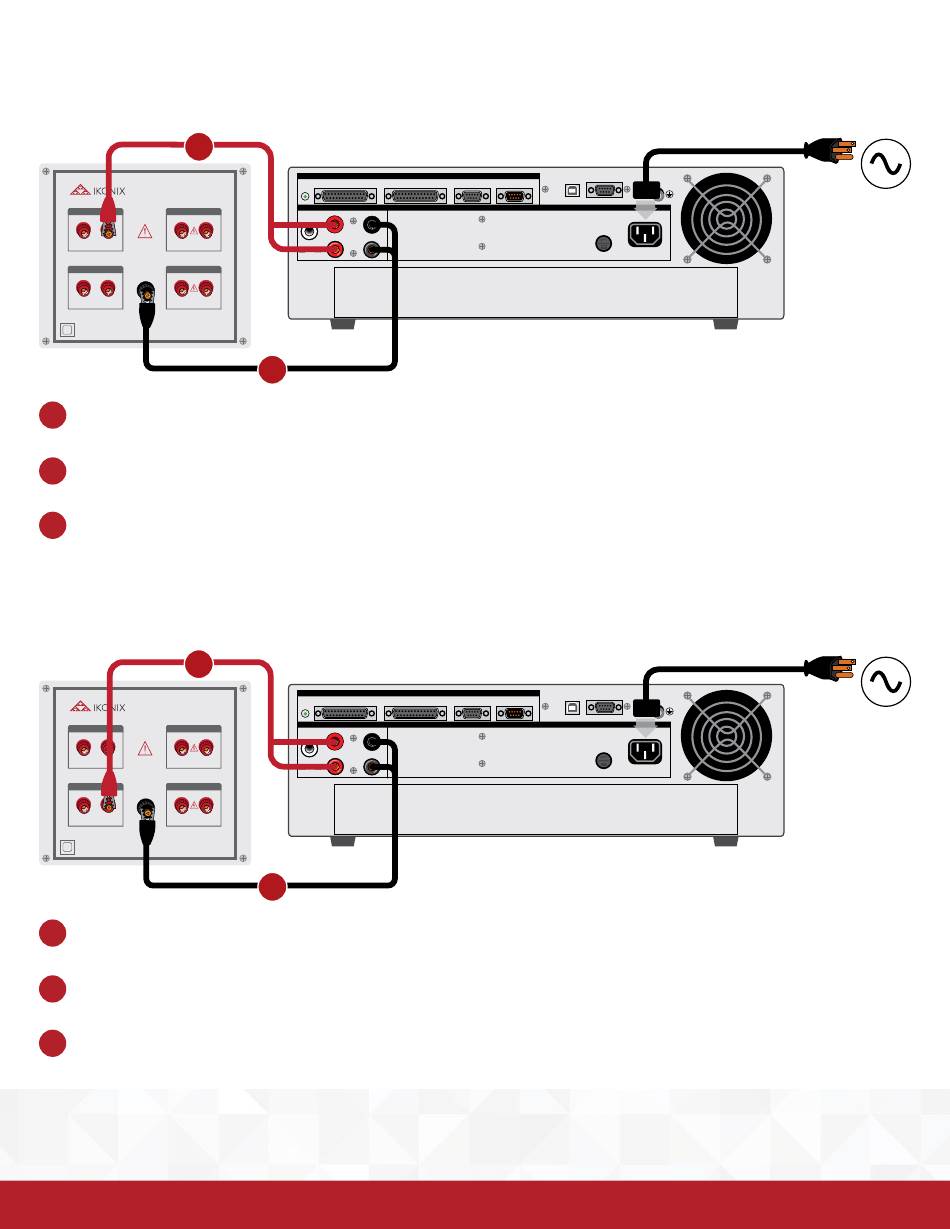

Ground Continuity Verification
1
TVB-2
GC ACW / DCW
FAIL PASS FAIL PASS
2Ω 500mΩ 120KΩ 2MΩ
Max 1A Max 1A Max 2300V Max 2500V
GB IR
FAIL PASS FAIL PASS
RETURN
200mΩ 50mΩ 1MΩ 4MΩ
Max 50W Max 50W Max 1000V Max 2500V
VERIFICATION LOAD BOX
Continuous Power Limitations - See Specifications
1
Connect the high current lead from the Sense + and CURRENT terminals on the instrument to the PASS/FAIL terminal under the
GC terminals on the TVB-2 box.
2
Connect the return black alligator clip lead from the Sense and RETURN terminals on the instrument to the RETURN post on the
TVB-2 box.
3
Perform the necessary PASS/FAIL test per the Specifications Table.
Ground Bond Verification
1
TVB-2
GC ACW / DCW
FAIL PASS FAIL PASS
2Ω 500mΩ 120KΩ 2MΩ
Max 1A Max 1A Max 2300V Max 2500V
GB IR
FAIL PASS FAIL PASS
RETURN
200mΩ 50mΩ 1MΩ 4MΩ
Max 50W Max 50W Max 1000V Max 2500V
VERIFICATION LOAD BOX
Continuous Power Limitations - See Specifications
1
Connect the high current lead from the Sense + and CURRENT terminals on the instrument to the PASS/FAIL terminal under the
GB terminals on the TVB-2 box.
2
Connect the return black alligator clip lead from the Sense – and RETURN terminals on the instrument to the RETURN post on the
TVB-2 box.
3
Perform the necessary PASS/FAIL test per the Specifications Table.
© Ikonix
REMOTE INTERFACE
SCANNER 1 SCANNER 2
OUTPUT
SENSE+
SENSE-
H.V.
CURRENT
RETURN
CAUTION
HIGH VOLTAGE
5KV MAX.
GROUND
TEST
OUTPUT
CH
H.V.
TEST
OUTPUT
2
REMOTE INTERFACE
SCANNER 1 SCANNER 2
OUTPUT
SENSE+
SENSE-
H.V.
CURRENT
RETURN
CAUTION
HIGH VOLTAGE
5KV MAX.
GROUND
TEST
OUTPUT
CH
H.V.
TEST
OUTPUT
2
RS232
SIGNAL OUTPUT SIGNAL INPUT
INPUT
T10A 250V
115V~ /230V~
10A MAX., 50Hz/60HZ
RS232
SIGNAL OUTPUT SIGNAL INPUT
INPUT
T10A 250V
115V~ /230V~
10A MAX., 50Hz/60HZ
TVB-2 Instruction Sheet
GND
CAT. II
GND
CAT. II
AC POWER
AC POWER
4
