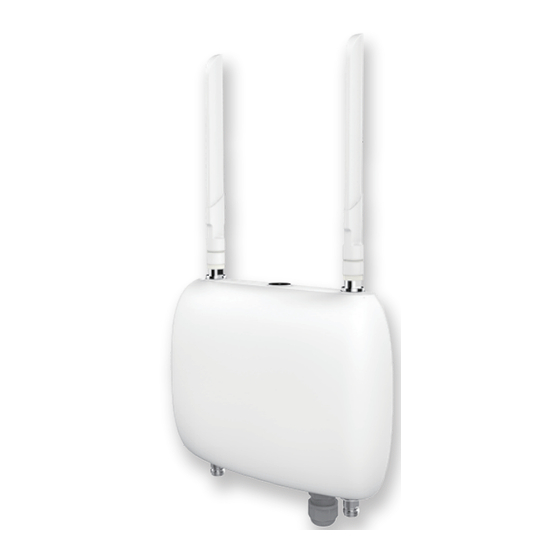

Outdoor LoRa V2.1 Gateway
Installation Quick Guide
This is a quick reference guide for
u Space Outdoor LoRa Gateway installation. This gateway
is designed for outdoor wall or pole mount installations.
1
Contents of delivery
2
Preparing the Installation
Connectors and Interfaces
3
Installation
Wall Mount
Pole Mount
Install Surge Protection Cable
Install 8 dBi Antenna
4
Cabling
5
Network Access
6
Model List
7
Appendix A
Declarations of Conformity and
Regulatory Information
All product speci cations are subject to change without notice
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for UfiSpace Outdoor LoRa V2.1 Gateway
Summary of Contents for UfiSpace Outdoor LoRa V2.1 Gateway
- Page 1 Outdoor LoRa V2.1 Gateway Installation Quick Guide This is a quick reference guide for u Space Outdoor LoRa Gateway installation. This gateway is designed for outdoor wall or pole mount installations. Contents of delivery Cabling Network Access Preparing the Installation...
-
Page 2: Contents Of Delivery
Internet of Things (IOT) applications. 1 Contents of Delivery Items x Outdoor LoRa V2.1 Gateway with water protection cap on N-Type connector ports x Outdoor LoRa V2.1 Gateway Installation Quick Guide x LTE 0 dBi antenna (only for model with LTE function) -
Page 3: Preparing The Installation
2 Preparing the Installation Connectors and Interfaces LoRa Antenna #1 (main) LoRa Antenna #2 (secondary, optional) 37.2 GPS Antenna LTE Antenna 48 VDC-IN/ PoE Pressure Vent Caution Must make sure all antennas are installed properly before apply PoE power to the gateway. For un-connected N-Type Antenna Port, MUST install a "... - Page 4 Install Expansion Nail for Mounting Bracket Drill 4 holes on the designated wall. Locking the expansion nail for bracket. (Maximum 40Kg.cm torque for M5 nuts) After locking eache nut, reverse 3~4 turns on wall. Secure the bracket onto the wall with 6 screws and must sure it is level. Install the Outdoor Gateway housing to the bracket with 6 screws Screws for mounting bracket to gateway (SUS304 T=1.6mm)
-
Page 5: Pole Mount
Pole Mount Vertical and Horizontal Mount Install Hose Clamp Upright pole Upright direction clamp hole Minimum OD 80mm Horizontal direction clamp through hole Horizontal pole Maximum OD 110mm Minimum OD 40mm Maximum 55Kg.cm torque for hose clamp All product speci cations are subject to change without notice - 5 -... - Page 6 Install Surge Protection Cable Surge Protection Cable Surge Protection Cable must be properly connected to gateway housing and earth ground. Install 8 dBi Antenna 8 dBi Antenna Screw nut Spring washer Flat washer Antenna port water leakage enhancement Antenna M6 Utype screw Pole ø35-50mm Recommend to apply 3M (2166) waterproo ng tape on antenna port to enhance water leakage protection.
-
Page 7: Network Access
4 Cabling LoRa Antenna #1 (8dBi) LoRa Antenna #2 (8dBi, optional) LTE Antenna GPS Antenna 3.3VDC output PoE Adapter for supporting 3 . 3 V A c t i v e GPS Antennea Caution Must make sure all antennas are installed properly before apply PoE power to the gateway. For un-connected N-Type Antenna Port, MUST install a "... - Page 8 Use Default Con guration The primary WAN is con gured as Ethernet with DHCP client through the PoE connectivity. On the device with LTE support, LTE is con gured as secondary WAN. In the installation environment, there is no extra con guration is needed if a DHCP server is available through Ethernet connection. For making device to have su cient interface parameters, following information has to be supplied by DHCP server: [Device IP]...
-
Page 9: Model List
GML820J-920U JAPAN: Outdoor LoRa V2.1 Gateway, 916.7 – 923.5 MHz GML820K-920U S. KOREA: Outdoor LoRa V2.1 Gateway, 922.1 – 923.3 MHz GML820T-920U TAIWAN: Outdoor LoRa V2.1 Gateway, 920 – 925 MHz All product speci cations are subject to change without notice... -
Page 10: Declarations Of Conformity And Regulatory Information
7 Appendix A Declarations of Conformity and Regulatory Information Safety Information Follow the guidelines in this section to ensure proper operation and safe use of the u Space LoRa V2.1 Outdoor Gateway. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 11 Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN60950-1:2006+A11+A1+A12+A2:2013 Safety of Information Technology Equipment.
