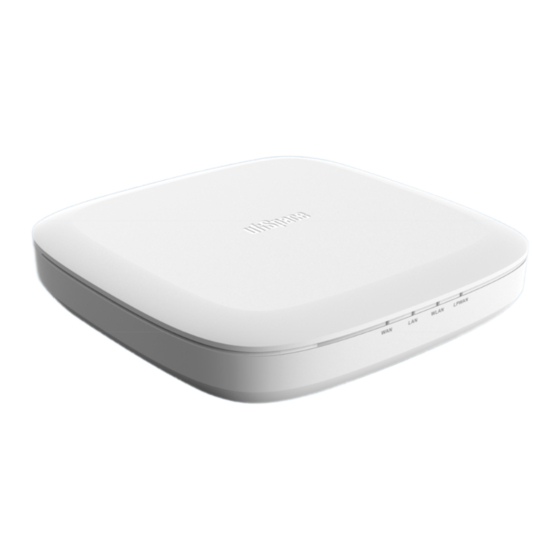

- Page 1 User Manual Enterprise Gateway GEE810U-915U...
-
Page 2: Hardware Specifications
G E E 8 1 0 U - 9 1 5 U 1. Introduction Enterprise LoRa indoor gateway is designed to meet the needs of IoT services. This Enterprise indoor gateway allow the users to setup this in indoor environment as an aggregator of LoRa sensors to the internet for the related services. - Page 3 G E E 8 1 0 U - 9 1 5 U 3.2 Setup Quick Guide 3.2.1 Wall Mount & Ceiling Mount Installation Support This product provides the wall mounting support. For this function, 2 sets of tapping screws & expansion pipes in accessories should be used. I/O Port cables can be at upward or downward direction.
-
Page 4: Software Setup
G E E 8 1 0 U - 9 1 5 U WLAN Constant Light Blue Wifi AP is enabled. LPWAN Constant off LoRa radio is off. ( ret= -1 in the radioparams.txt ) LPWAN Constant Light Blue LoRa radio is on. ( ret= 0 in the radioparams.txt ) 4. - Page 5 G E E 8 1 0 U - 9 1 5 U FW Version – Display current FW version HW Revision – Display current HW reversion (should not change) Wan Status – Display current backhaul connection state in the following format: <WAN Type>,<Current IP address>...
- Page 6 G E E 8 1 0 U - 9 1 5 U 4.2.1 Select “Ethernet” as WAN 4.2.1.1 Use DHCP Mode to get IP address automatically A. Set Primary WAN type as “Ethernet” B. Set Ethernet IP Type under Ethernet Settings as “DHCP” C.
-
Page 7: Management Page
G E E 8 1 0 U - 9 1 5 U 4.4 Management Page Firmware Upgrade Before performing FW upgrade, please check the Status page for current firmware version. You need to be aware that only firmware for the same production could be used. Using invalid firmware or firmware from other products will get a “FW Upgrade Fail”... - Page 8 G E E 8 1 0 U - 9 1 5 U View log in web browser The Filter command controls a simple content filter in log, you may enter keyword (case sensitive) to it, and only a line contained such keyword will be displayed. If keyword contained white space, double quota (“) must be used around the whole keyword.
-
Page 9: Federal Communication Commission Interference Statement
G E E 8 1 0 U - 9 1 5 U Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
