- Page 1 S9502-16SMT Disaggregated Cell Site Gateway Hardware Installation Guide R1.1...
-
Page 2: Table Of Contents
Connecting a Cable to the ToD Interface ................18 Connecting the 1PPS Interface ....................19 Connecting the 10MHz Interface ................... 19 Connecting the Transceiver ....................19 11 Cautions and Regulatory Compliance Statements .............. 21 S9502-16SMT Hardware Installation Guide | i... -
Page 3: Overview
The S9502-16SMT has a lightweight design without fans and fixed power supplies to reduce moving parts and enable longer lasting operations with minimal maintenance servicing. It... -
Page 4: Preparation
PC with terminal emulation software. Refer to the "Initial System Setup" section for details. • Baud rate: 115200 bps • Data bits: 8 • Parity: None • Stop bits: 1 • Flow control: None S9502-16SMT Hardware Installation Guide | 2... -
Page 5: Installation Environment Requirements
19 inch (48.3cm) wide racks. The rack mount brackets can be installed at the front or in the center of the S9502-16SMT. The depth of the S9502-16SMT chassis is 9.84 inches (25cm). The connectors for the power supplies and interfaces will extend outwards from the front panel by 0.55 inches (1.4cm). -
Page 6: Preparation Check List
• Cooling: The S9502-16SMT has a fanless design so the rack or cabinet must have a minimum of 3.28 feet/second (1 meter/second) airflow in any direction without recirculation. Figure 3. Figure 4. Preparation Check List Task Check Date Power voltage and electric current requirement DC version: -36 to -75V DC, 4.5A maximum x2 or;... -
Page 7: Package Contents
USB 2.0 Type A Cable 7.87” (200mm) 1 pcs 0.02lb (10.5g)/pcs AC Power Cord 0.91lb (414g)/pcs 72.05” (1830mm) 2 pcs (AC version only) (0.46lb (207g)/pcs) RJ45 to DB9 Female 95.98” (2438mm) 1 pcs 0.23lb (105g)/pcs Cable S9502-16SMT Hardware Installation Guide | 5... -
Page 8: Component Physical Information
0.23lbs (105g) Screw kit for ground lug 0.008lbs (3.5g) Screw kit for rack mount bracket 0.02lbs (7g) Dimension S9502-16SMT (W x D x H) 17.32” x 9.84” x 1.71” (440 x 250 x 43.5mm) S9502-16SMT Hardware Installation Guide | 6... -
Page 9: Identifying Your System

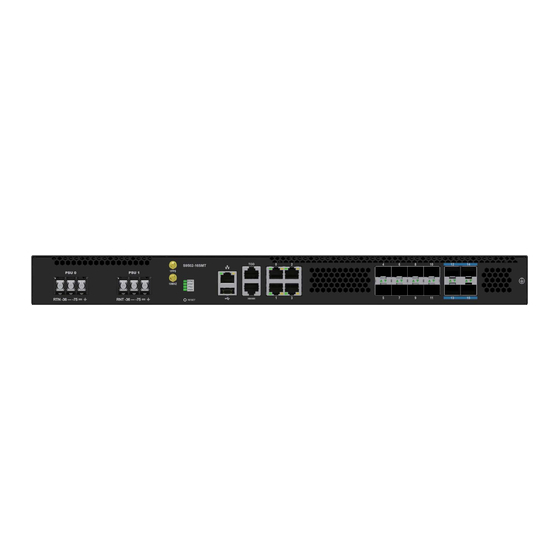

4 Identifying Your System S9502-16SMT Overview Figure 5. S9502-16SMT Hardware Installation Guide | 7... -
Page 10: Dc Version Psu Overview
Figure 7. Port Overview Port ID Form Factor Maximum Support Distance Support Speed 0 ~ 3 RJ45 238.01ft (100m) 100M/1G 4 ~ 11 43.49mi (70km) 100M/1G 12 ~ 15 SFP+ 49.71mi (80km) 1/10G Figure 8. S9502-16SMT Hardware Installation Guide | 8... -
Page 11: Rack Mounting
Mark the location on both posts to ensure it is leveled before securing the router onto the rack. (See Figure below). Illustrations are for reference purposes only. Actual scenario may differ. Screws for rack posts not included. Figure 10. S9502-16SMT Hardware Installation Guide | 9... - Page 12 For rack post widths wider than 19”, different brackets are available upon request (See Figure below). Figure 11. S9502-16SMT Hardware Installation Guide | 10...
-
Page 13: Grounding The Router
3. Insert the exposed grounding wire all the way into the hole of the grounding lug (provided with package contents). 4. Using a crimping tool, firmly secure the grounding wire to the grounding lug. Figure 12. S9502-16SMT Hardware Installation Guide | 11... - Page 14 6. Using 2 M4 screws and 4 washers (provided with the package contents), firmly lock the grounding lug to either of the designated grounding locations on the router. Figure 13. Figure 14. Figure 15. S9502-16SMT Hardware Installation Guide | 12...
-
Page 15: Connecting Power
Tighten the screws to a torque value of 7.0+/-0.5kgf.cm. If the torque is not enough, the lug will not be secure and may cause malfunctions. If the torque is too much, the terminal block or lug may be damaged. Figure 17. S9502-16SMT Hardware Installation Guide | 13... -
Page 16: Ac Version
2 amperes. It is recommended to ensure that enough power is reserved from the power distribution system before installation. Also, please ensure that both PSUs have been properly installed before powering up the equipment, as the S9502-16SMT is designed to support 1 + 1 power redundancy. -
Page 17: Verifying System Operation
System power good & CPU board power good Blinking Green System power fail & CPU board power is good Solid Yellow System power good & CPU board power fail Blinking Yellow System power fail & CPU board power fail S9502-16SMT Hardware Installation Guide | 15... -
Page 18: Management Port Led
Management port LED LED Condition Equipment Status Left LED 1G No link Solid Green 1G Link-up Blinking Green 1G TX/RX activity Right LED No link Solid Amber 10M/100M Link-up Blinking Amber 10M/100M TX/RX activity S9502-16SMT Hardware Installation Guide | 16... -
Page 19: Initial System Setup
After the connection is established, a prompt for the username and password displays. Enter the username and password to access the CLI. The username and password should be provided by the Network Operating System (NOS) vendor. S9502-16SMT Hardware Installation Guide | 17... -
Page 20: Cable Connections
1. Connect one end of a straight-through Ethernet cable to the GNSS unit 2. Connect the other end of the straight-through Ethernet cable to the port marked “TOD” located on the front panel of the router. Figure 22. S9502-16SMT Hardware Installation Guide | 18... -
Page 21: Connecting The 1Pps Interface
Read the following guidelines before connecting the transceiver: • Before installing the router, take into consideration rack space requirements for cable management and plan accordingly. • It is recommended to use hook-and-loop style straps to secure and organize the cables. S9502-16SMT Hardware Installation Guide | 19... - Page 22 3. Place the bail (wire handle) in the unlocked position and align the transceiver with the port. 4. Slide the transceiver into the port and use gentle pressure to secure it in place. An audible click can be heard when the transceiver is secured in the port. S9502-16SMT Hardware Installation Guide | 20...
-
Page 23: Cautions And Regulatory Compliance Statements
The equipment and its modules should only be repaired, maintained or replaced by skilled personnel. Instructed person is a term applied to persons who have been instructed and trained by a skilled person, or who is supervised by a skilled person. S9502-16SMT Hardware Installation Guide | 21... - Page 24 www.ufispace.com...
