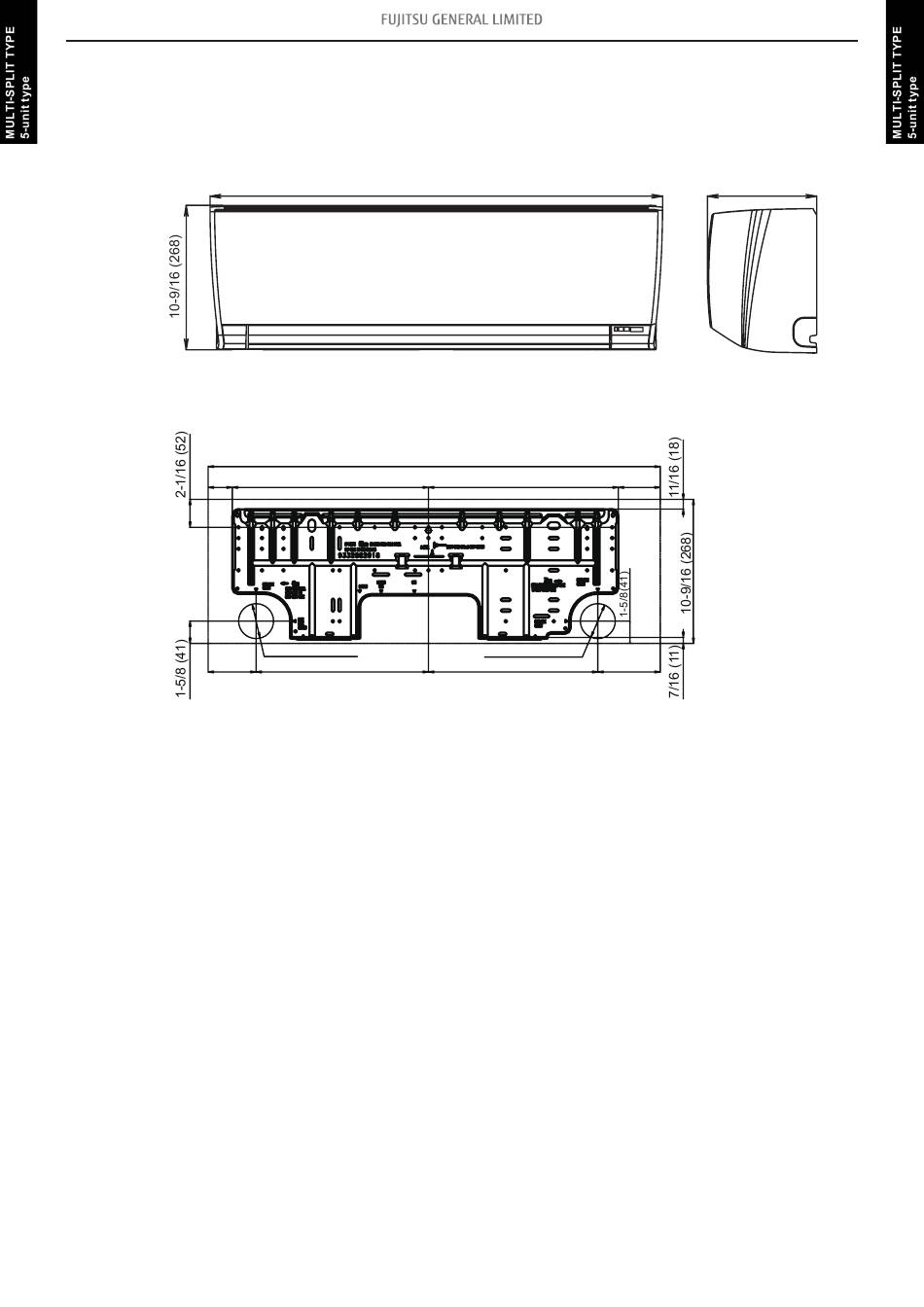

3-3. Wall mounted type

¢ Models: ASU7RLF1, ASU9RLF1, ASU12RLF1, and ASU15RLF1
1-3/4 (45)
3-7/16
(88)
3-3. Wall mounted type
33-1/16 (840)
(33-1/16 (840))
14-5/16 (364)
Ø2-9/16 (Ø65)
for pipe inlet
12-5/8 (321)
13-7/8 (353) 3-1/16 (78)
Ø2-9/16 (Ø65)
for pipe inlet
4-9/16
12-3/8 (315)
(116)
- 20 -
Unit: in (mm)
8 (203)
3. Dimensions
