16-2. Slim duct type indoor unit (setting by DIP switch)
By using some components on the PCB, you can change the function settings.
Related components on the PCB and the applicable settings:
DIP switch
¢ Component location

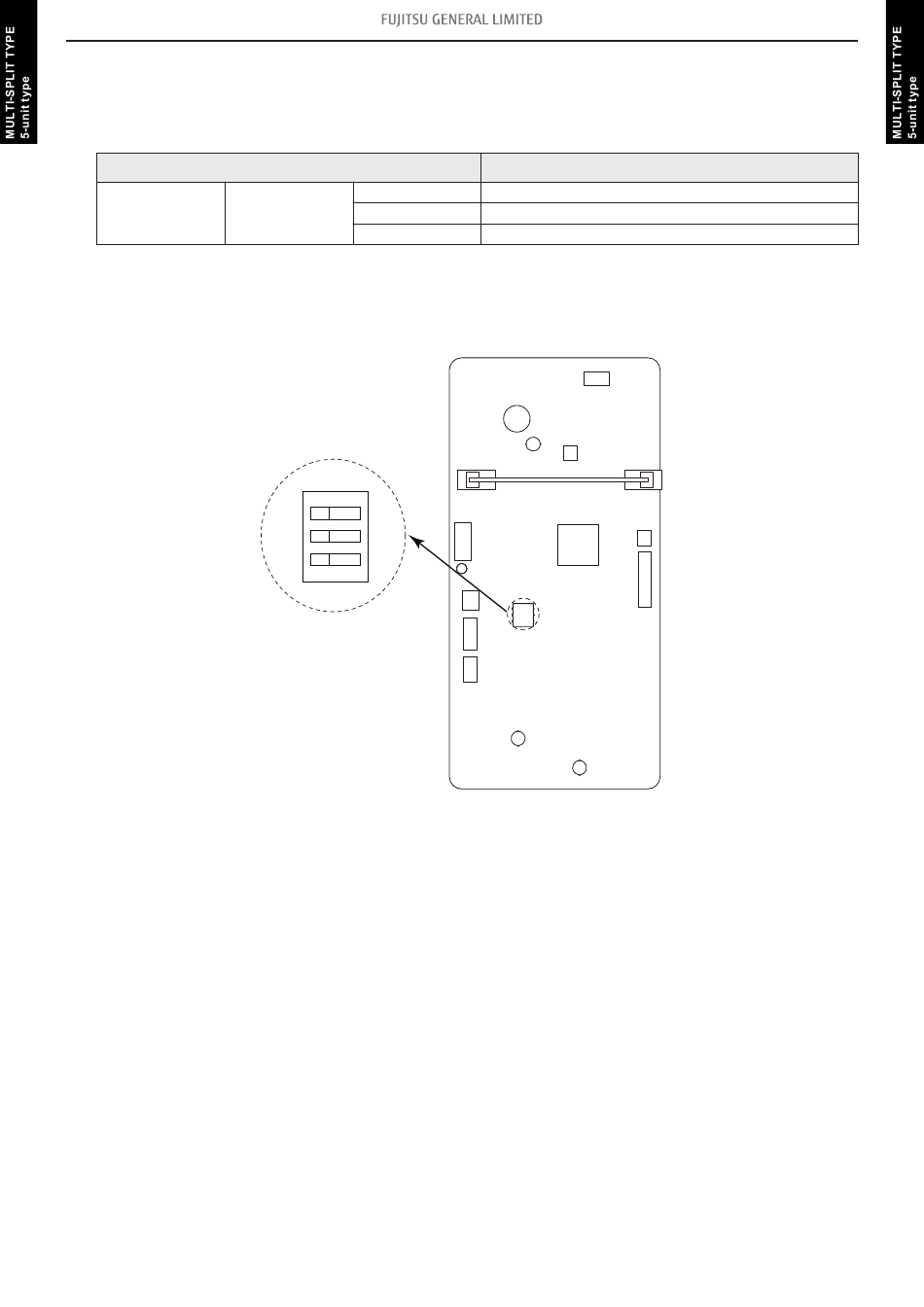

Components on the indoor unit main PCB used for the function settings are located as shown in
the following figure.
16-2. Slim duct type indoor unit (setting by DIP switch)
Component
1
SW101 2
3
SW101
3
2
1
Setting content
Drainage function setting
Auto louver grille setting
Fan delay setting
- 185 -
