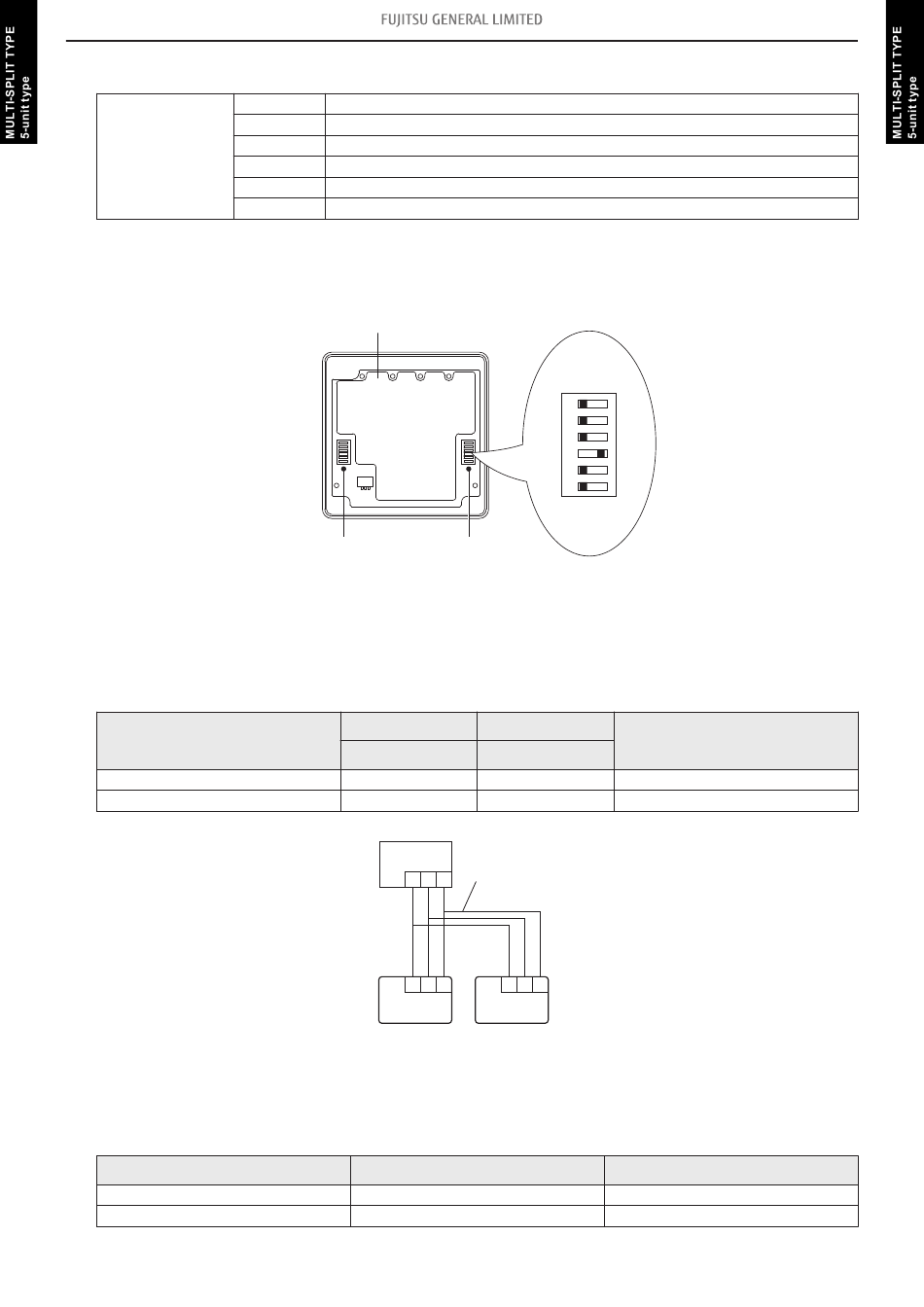

16-7. Wired remote controller (UTY-RNNUM)
DIP switch 1
* Do not use DIP switch 2.
¢ Switch location
¢ DIP switch 1 setting
 SW2: Dual remote controller setting
Set the remote controller SW2 according to the following table.
Number of remote controller
1 (Normal)
2 (Dual)
 SW4: Switching temperature unit °F / °C
Displayed temperature unit can be switched between Fahrenheit (°F) and Celsius (°C).
SW4
OFF
ON
16-7. Wired remote controller (UTY-RNNUM)
SW1 Prohibited
SW2 Dual remote controller setting
SW3 Prohibited
SW4 °F/°C switch
SW5 Prohibited
SW6 Memory backup setting
Front case (back side)
DIP switch 2 DIP switch 1
Primary unit
SW2
OFF
OFF
Indoor unit
1 2 3
1 2 3
Primary unit
Remote controller
Fahrenheit (°F) / Celsius (°C)
OFF ON
1
2
3
4
5
6
Secondary unit
SW2
—
ON
Remote controller cable
1 2 3
Secondary
unit
°C
°F
