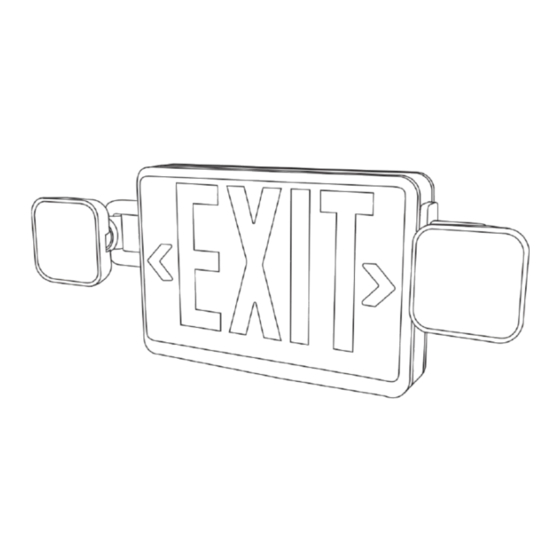

- Page 1 Lighting made better. User Manual 2 Head LED Exit Sign SKU: EX_2HFL AMERICAN support @sunco.com COMPANY (844) 334-9938...
- Page 2 What’s in the Box? Exit Sign Components Exit Sign Housing + Panel Canopy Mount Trim Plate Support Connectors Wire Nuts Screws...
- Page 3 What You Need Get Your Gear Drill Pliers Flat-head Screwdriver Ladder IMPORTANT: Prior to exit sign installation, install junction box in ceiling or wall. When re-lamping, use only lamps specified in the exit sign. Using other lamp types may result in transformer damage or unsafe conditions. The battery in this unit may not be fully charged upon unboxing.
- Page 4 Before You Start Safety Information • Turn off circuit breaker before installing this fixture. • Not compatible with timing devices. • Suitable for use in damp environments at temperatures • All electrical connections must be in accordance with local ranging from 32°F to 104°F. Not for use where directly exposed and National Electric Code (N.E.C.) standards.
- Page 5 Installation Guide (Ceiling Mount) STEP 1 a. Unsnap faceplate to open. For dual-sided EXIT sign, remove backplate and replace with extra faceplate (included). STEP 2(Optional ) a. To change the light from red to green, remove the red diffuser and red to green replace it with the included green diffuser.
- Page 6 Installation Guide (Cont.) STEP 5 Canopy a. Attach canopy to j-box using bracket and screws (included), wires will go through the center hole in the canopy. b. Snap housing to canopy. STEP 6 Connect the battery. Battery Socket Battery Connector STEP 7 Canopy a.
- Page 7 Installation Guide (Wall Mount) STEP 1 a. Unsnap faceplate to open. STEP 2(Optional ) a. To change the light from red to green, remove the red diffuser and red to green replace it with the included green diffuser. b. Locate the Red/Green switch on the bottom of the fixture. c.
- Page 8 Installation Guide (Cont.) STEP 5 a. Fasten backplate to the junction box. b. Snap housing to canopy. STEP 6 a. Connect the battery. b. Snap housing on to the backplate. Battery Socket Battery Connector STEP 7 a. Snap-in arrows on EXIT faceplate as required. b.
-
Page 9: Product Details
Product Details Wall Mount Diagram Wire Nuts Plastic Housing Back Plate Diffuser Snap-in Directional Arrow Exit Panel Specifications Voltage 120V-277V Beam Angle 120° Wattage 3.5W Lumens 220LM Power Factor 0.49 IP Rating IP20 Battery 3.6V1200mah NI-MH Weight Power Source 2.69 lbs Battery Housing Material Amps... -
Page 10: Common Troubleshooting
Common Troubleshooting Feeling in the dark about an issue with your product? No If you still need some assistance, please feel free to contact worries! Our troubleshooting section is here to shed some light us with any questions. Our team of lighting experts are and provide you with easy-to-follow solutions for any problem. -
Page 11: Customer Support
It gets even better - scan the QR code for 2 extra years of protection! 30 Day Return Policy At Sunco we value our customers and stand by If you are not completely satisfi ed with your the quality and performance of our products. - Page 12 Lighting made better. AMERICAN support @sunco.com COMPANY (844) 334-9938 REV1.0...
