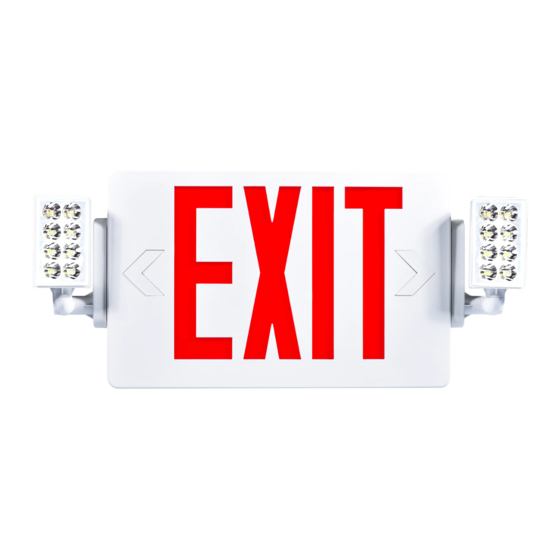

- Page 1 Lighting made better. User Manual 2 Head LED Exit Sign SKU: EX_2H-RED AMERICAN support@sunco.com COMPANY (844) 334-9938...
- Page 2 Whats in the Box? Exit Sign Components Exit Sign Housing + Panel Canopy Mount Trim Plate Support Connectors Wire Nuts Screws...
- Page 3 What You Need Get Your Gear Drill Pliers Screwdriver Ladder IMPORTANT: Prior to exit sign installation, install junction box in ceiling or wall. When re-lamping, use only lamps specified in the exit sign. Using other lamp types may result in transformer damage or unsafe conditions. The battery in this unit may not be fully charged upon unboxing.
- Page 4 Before You Start Safety Information • Turn off circuit breaker before installing this fixture. • Not compatible with timing devices. • Suitable for use in damp environments at temperatures • All electrical connections must be in accordance with local ranging from 32°F to 104°F. Not for use where directly and National Electric Code (N.E.C.) standards.
- Page 5 Installation Guide STEP 1 a. Turn off circuit breaker before installation. b. Open housing of exit sign using flathead screwdriver in slots on top. Alternate sides to unsnap entire faceplate. Pull off faceplate & set aside. c. Remove mounting components (wrapped in plastic for shipping) from the housing.
- Page 6 Installation Guide (Cont.) STEP 4 a. Align trim plate to screw holes on back of the canopy mount plate. Turn over. Secure trim plate with 2 provided screws. b. Feed lead wires (from face to back) through canopy mount plate & trim plate.
-
Page 7: Product Details
Product Details Wiring Diagram Specifications Voltage 120V-277V Beam Angle Wattage 3.3W Lumens 300LM Power Factor 0.48 IP Rating IP20 Battery 3.6V1000mah NI-MH Weight Power Source 1.61lbs Battery Housing Material Amps ABS+PMMA 0.32A Dimmable Warranty 3 Years... -
Page 8: Common Troubleshooting
Common Troubleshooting Feeling in the dark about an issue with your product? No If you still need some assistance, please feel free to worries! Our troubleshooting section is here to shed some light contact us with any questions. Our team of lighting experts and provide you with easy-to-follow solutions for any problem. -
Page 9: Customer Support
It gets even better - scan the QR code for 2 extra years of protection! 30 Day Return Policy At Sunco, we value our customers and stand by If you are not completely satisfied with your the quality and performance of our products. - Page 10 Lighting made better. support@sunco.com AMERICAN (844) 334-9938 COMPANY REV1.0...
