- Page 1 Lighting made better. User Manual 4” LED Smart Slim Downlight w/ Nightlight SKU: DL_SL4_S_NL-WH-2760K support @sunco.com AMERICAN (844) 334-9938 COMPANY...
-
Page 2: What's In The Box

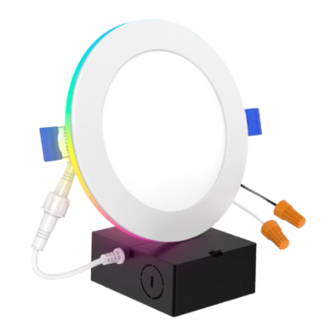

What’s in the Box? Slim Downlight Why Plastic Junction Boxes? At Sunco, our commitment to safety and reliability is at the core of our lighting solutions, ensuring your peace of mind. Plastic’s corrosion resistance ensures longer product lifespans with minimal maintenance. - Page 3 Before You Start Safety Information To reduce the risk of fire, electric shock, or physical injury: • Turn off circuit breaker before installing this fixture. • Clean the fixture regularly to ensure proper operation. • Professional installation required. Safety gear recommended. Do not clean with harsh solvents.
- Page 4 Installation Guide STEP 1 a. Turn off circuit breaker before installation. b. Cut out 4.33” housing size on Installation Template (C), then tape 4.33” onto ceiling in desired location. c. Cut ceiling hole using Installation Template (C) as a guide. STEP 2 a.
- Page 5 Installation Guide STEP 3 a. Thread wire clamp through knockout, secure wires with screws, attach cable connector nut on opposite side, & connect supply & junction wires with wire nuts. -Black to Black (Live) ; White to White (Neutral) -No ground required b.
- Page 6 Installation Guide (Cont.) STEP 5 a. Push up spring clips and insert fixture into ceiling. b. Turn on circuit breaker and test light. App Pairing Instructions: STEP 1 a. Install the Sunco Smart Lighting app.
- Page 7 App Pairing Instructions: STEP 2 a. Register using your email b. Enter the verification code that c. Create a password for your address. has been sent to your email. account.
-
Page 8: Specifications
App Pairing Instructions: STEP 3 a. Enter pairing mode by turning the power switch off /on 5 times. b. On the app, press Add Device, then find your device under “Discovering devices…” and press Add. Note: Ensure a stable 2.4 GHz connection to pair via Wi-Fi. -
Page 9: Common Troubleshooting
Common Troubleshooting We’ve got you covered! Our troubleshooting If you still need some assistance, feel free to section is here to shed some light and provide contact us. Our team of lighting experts are happy you with easy-to-follow solutions for any problem. to help brighten your day. - Page 10 Light Distribution Angle AVERAGE BEAM ANGLE (50%): 134.1 DEG C0/180 137.6° C90/270 130.7° UNIT:cd Luminous Intensity Distribution 1 Lighting distribution angle refers to the spread of certain degree in up-lighting. An asymmetric light emitted from a light source. It is an important lighting distribution angle, also known as beam factor to consider when selecting a fixture or angle, creates a pattern that focuses light in a...
-
Page 11: Customer Support
It gets even better - scan the QR code for 2 extra years of protection! 30 Day Return Policy At Sunco we value our customers and If you are not completely satisfi ed with your stand by the quality and performance of purchase, we accept returns within 30 days our products. - Page 12 Lighting made better. support @sunco.com AMERICAN (844) 334-9938 COMPANY REV1.0...
