- Page 1 Lighting made better. User Manual LED Shop Light SKU: SH_F support@sunco.com AMERICAN (844) 334-9938 COMPANY...
- Page 2 What’ s in the Box? Shop Light Zip Tie Hanging Chains Screw Eye Hook Plastic Anchor Screw...
- Page 3 Before You Start Safety Information To reduce the risk of fire, electric shock, or physical injury: • Turn off circuit breaker before installing this fixture. • This product is not compatible with 3rd party timing devices. • Suitable for damp locations at temperature ranging from •...

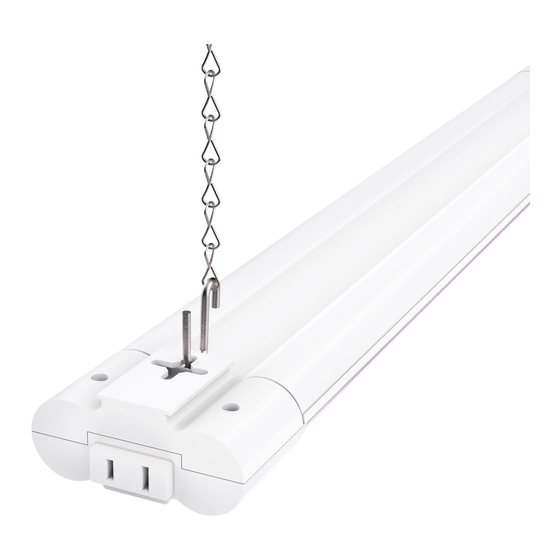

- Page 4 Installation Guide (Suspension Install) STEP 1 a. Turn off circuit breaker before installation. NOTE: Mounting surface must be able to support weight of fixture. b. Insert hanging chains to the shop light mounting ends.” (Remove everything else) STEP 2 a. Drill 2 pilot holes into ceiling. Holes should be 46.83” apart. b.
- Page 5 Installation Guide (Cont.) STEP 4 a. Insert expansion anchors into pilot holes. NOTE: Space fixture to suit your lighting plan and power chord length (60”). 4 units maximum. STEP 5 Plug in power cord to electrical outlet. STEP 6 a. Tighten screw eye hooks into expansion anchors. b.
- Page 6 Installation Guide (Direct Mount Install) STEP 1 a. Turn off circuit breaker before installation. NOTE: Mounting surface must be able to support weight of fixture. STEP 2 NOTE: Space fixture to suit your lighting plan and power chord length (60”). 4 units maximum. STEP 3 a.
- Page 7 Installation Guide (Cont.) STEP 4 a. Align fixture to screws. b. When holes are aligned, push fixture up. Slide to secure. STEP 5 a. Insert expansion anchors into pilot holes. b. Tighten screws into expansion anchors. c. Leave about 0.17” gap between the screw heads & mounting surface.
-
Page 8: Product Details
Product Details Dimensions 46.9” Length 4” Width 2” Height 5 ft. Length Specifications Voltage 120V Average Lifetime 50,000 hrs Wattage Lumens 4500LM Wattage Equivalency 150W Moisture Rating Damp Beam Angle 120° Color Usage Black/White Indoor Housing Material Frequency Plastic 60HZ Dimmable Warranty 7 Years... -
Page 9: Common Troubleshooting
Light flickering when dimmed. Shop light is not compatible with dimmer switches. Linking How many can be linked? Link up to four lights on one circuit breaker. Does Sunco offer longer linking cables? Sunco does not offer longer linking cables... - Page 10 Light Distribution Angle AVERAGE BEAM ANGLE (50%): 120.5 DEG C0/180 109.5° C90/270 131.6° UNIT:cd Luminous Intensity Distribution 1 Lighting distribution angle refers to the spread of light An asymmetric lighting distribution angle, also known emitted from a light source. It is an important factor to as beam angle, creates a pattern that focuses light in a consider when selecting a fi xture or bulb, as it aff ects the specifi c direction.
-
Page 11: Customer Support
It gets even better - scan the QR code for 2 extra years of protection! 30 Day Return Policy At Sunco, we value our customers and stand by If you are not completely satisfi ed with your the quality and performance of our products. - Page 12 Lighting made better. support@sunco.com AMERICAN (844) 334-9938 COMPANY REV1.0...
