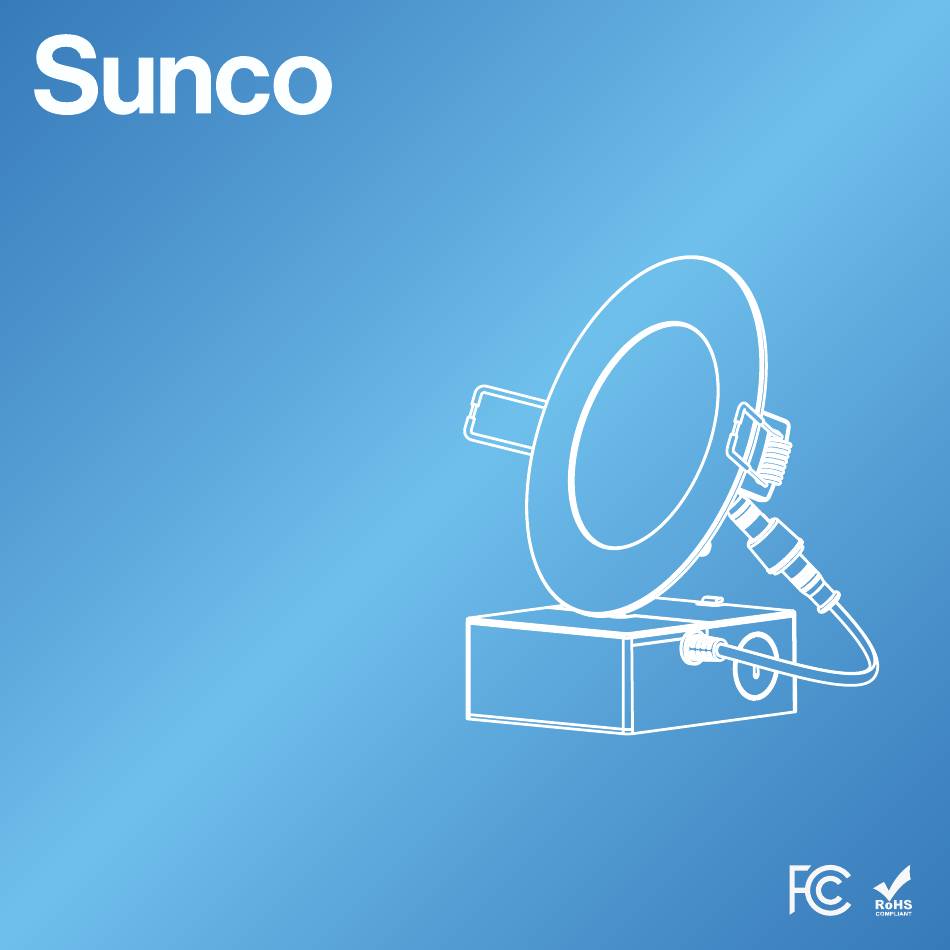

- Page 1 Lighting made better. User Manual 4″ LED Selectable Slim Downlight SKU: DL_SL4-10W-27K_5K support@sunco.com (844) 334-9938...
- Page 2 What’s in the Box? Slim Downlight Why Plastic Junction Boxes? At Sunco, our commitment to safety and reliability is at the core of our lighting solutions, ensuring your peace of mind. Plastic’s corrosion resistance ensures longer product lifespans with minimal maintenance.
- Page 3 Before You Start Safety Information To reduce the risk of fire, electric shock, or physical injury: • Turn off circuit breaker before installing this fixture. • Suitable for damp locations at temperature ranging • Professional installation required. Safety gear from -4°F to 104°F. Not for use where directly exposed recommended.
- Page 4 Installation Guide STEP 1 a. Turn off circuit breaker before installation. b. Cut out 4.33” housing size on Installation Template (C), 4.33” then tape onto ceiling in desired location. c. Cut ceiling hole using Installation Template (C) as a guide. STEP 2 a.
- Page 5 Installation Guide (Cont.) STEP 3 a. Thread wire clamp through knockout, secure wires with screws, attach cable connector nut on opposite side, then connect luminaire & junction wires with wire nuts (D). Black to Black (Live) • White to White (Neutral) No Ground required.
- Page 6 Installation Guide (Cont.) STEP 5 a. Attach fixture to junction box using connector (1). b. Tighten connector by hand (2). STEP 6 Insert junction box through the hole in the ceiling. New Construction Applications: Junction box should be Ceiling secured to studs, joists, or similar fixed structural units. Remodel Applications: Junction box does not need to be secured.
-
Page 7: Product Details
Product Details Recommended Dimmers Brand Model LEVITON C28-6672-1LT LUTRON MACL-153M-WH LUTRON DVCL-153P-WH LUTRON MACL-153MH-WH LUTRON TGCL-153P-WH Specifications Voltage 120 V Average Lifetime 50,000 Hours Wattage Lumens 10 W 650 lm Efficacy 65 lm/W Power Factor Moisture Rating 2700K - 6000K Damp Rated Weight 0.39 lbs... -
Page 8: Common Troubleshooting
Common Troubleshooting We’ve got you covered! Our troubleshooting If you still need some assistance, feel free to section is here to shed some light and provide contact us. Our team of lighting experts are happy you with easy-to-follow solutions for any problem. to help brighten your day. - Page 9 Light Distribution Angle -/+180 -150 -120 AVERAGE BEAM ANGLE (50%): 113.0 DEG C0/180 113.1° C90/270 112.9 ° UNIT:cd Luminous Intensity Distribution 1 Lighting distribution angle refers to the spread of certain degree in up-lighting. An asymmetric light emitted from a light source. It is an important lighting distribution angle, also known as beam factor to consider when selecting a fixture or angle, creates a pattern that focuses light in a...
- Page 10 Lighting made better. support@sunco.com (844) 334-9938 REV1.0...
