Homestyles 9100-007 Assembly Instructions Manual

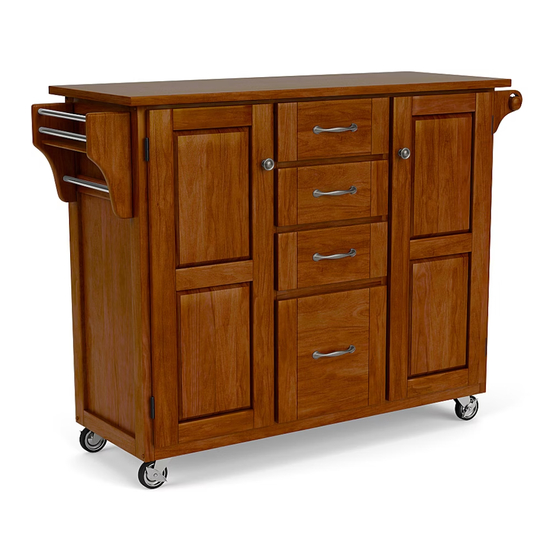

Kitchen cart
Hide thumbs

Advertisement

Quick Links

Download this manual
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

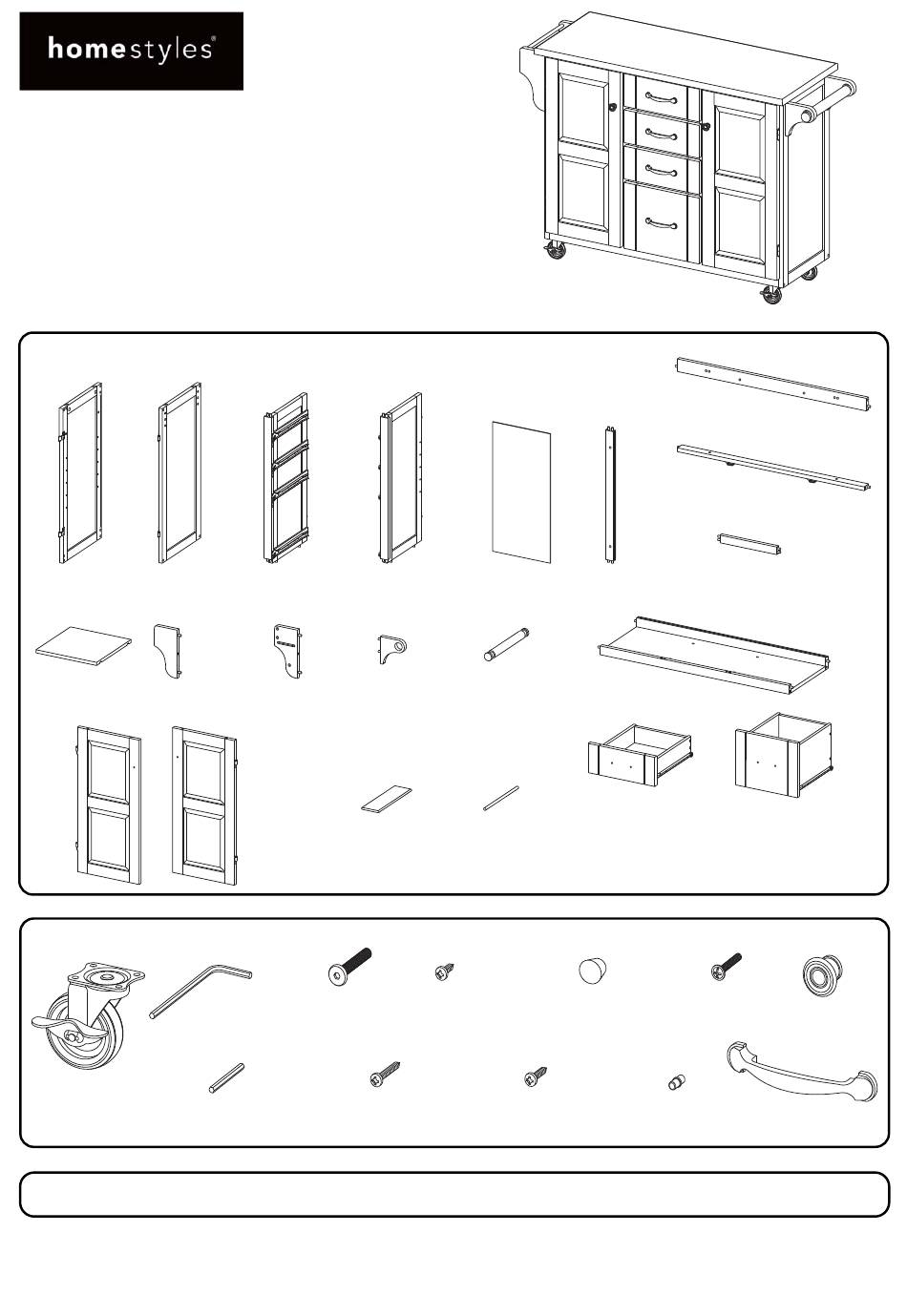

Part List
A.
B.
Side Panel
Side Panel
1 pc.
1 pc.
K.
P.
Shelf
Rack Side
2 pcs.
1 pc.
N.
Door
1 pc.
Hardware List
Hex Wrench
1 pc.
Caster
2 Locking
2 Non-Locking
Small Hex Wrench
4 pcs.
1 pc.
9100 Top carton is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver
home
9100-007
Kitchen Cart
C.
D.
Middle Panel
Middle Panel
1 pc.
1 pc.
Q.
L.
Rack Side
Arm Handle
1 pc.
2 pcs.
O.
R.
Door
Rack Base
1 pc.
1 pc.
M6x35
Head Cap Bolt
14 pcs. (+1 extra)
M3.5x25
Wood Screw (long)
32 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
E.
Back Panel
3 pcs.
M.
Arm
1 pc.
S.
Pipe
3 pcs.
M3.5x13
Wood Screw (short)
Wood Plug
24 pcs. (+1 extra)
10 pcs. (+1 extra)
M x16
4
Wood Screw
16 pcs. (+1 extra)
888-680-7460
G.
Back Rail
1 pc.
H.
Front Rail
1 pc.
F.
I.
Back Upright
Front Rail
2 pcs.
3 pcs.
J.
Base
1 pc.
T.
U.
Drawer
Drawer
3 pcs.
1 pc.
Refer to later page(s) of these
instructions for drawer assembly.
M4x25
Machine Screw
10 pcs.
Adjustable Pin
8
pcs. (+ extra)
1
Knob
2 pcs.
Handle
4 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9100-007 and is the answer not in the manual?

Questions and answers

Related Manuals for Homestyles 9100-007

Summary of Contents for Homestyles 9100-007

  • Page 1 9100-007 Kitchen Cart IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
  • Page 2 Assembly Instructions 2/8 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
  • Page 3 Assembly Instructions 3/8 Head Cap Bolt Arrow label at front STEP 3 Attach Back Rail (G) and Front Rail (H) to unit with Head Cap Bolts. Note: Arrow label indicates front of Back Rail (G). Attach Side Panel (B) to unit with Head Cap Bolts.
  • Page 4 Assembly Instructions 4/8 Head Cap Bolt Figure 3 Figure 4 STEP 5 Turn unit over to its upright position. Attach Rack Side (P) to unit with Head Cap Bolt. (See Figure 3) Slide Rack Base (R) and Pipes (S) into Rack Side (P). Attach Rack Side (Q) to unit with Head Cap Bolt.
  • Page 5 Assembly Instructions 5/8 Head Cap Bolt (middle) Adjustable Pin Knob Machine Screw STEP 6 Insert Adjustable Pins into side panels and middle panels at desired level. (See Figure 5) Place Shelves (K) into position. Attach Doors (N) and (O) to unit by sliding door hinges into side panel hinges. (See Figure 6) Attach Knobs to Doors (N) and (O) with Machine Screws.

  • Page 6: Part List

    Assembly Instructions 6/8 Drawer (T) Wood Screw (long) Bottom STEP 7 Attach Drawer Front (T1) and Drawer Back (T2) to Drawer Side (T3) with Wood Screws (long). Attach Drawer Side (T4) to unit Roller at back with Wood Screws (long). STEP 8 Wood Screw (short) Slide Drawer Bottom (T5) into groove.
  • Page 7 Assembly Instructions 7/8 Drawer (U) Wood Screw (long) Bottom STEP 10 Attach Drawer Front (U1) and Drawer Back (U2) to Drawer Side (U3) with Wood Screws (long). Attach Drawer Side (U4) to unit Roller at back with Wood Screws (long). STEP 11 Wood Screw (short) Slide Drawer Bottom (U5) into groove.
  • Page 8 Assembly Instructions 8/8 STEP 13 Attach Top (W) to unit with Head Cap Bolts (middle). Slide Drawers (T) and (U) into position. Head Cap Bolt (middle) Wood Plug STEP 14 Cover all holes with Wood Plugs. (See Figure 8) Figure 8...

  • Page 9: Hardware List

    9100-104 Granite Top IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.

  • Page 10: Unpacking Instructions

    Unpacking Instructions Carton STEP 1 Wood Crate Open carton. STEP 2 Use a hammer to remove Wood Support wood supports. (See Figure 1) Note: Do not hit top with hammer. Foam Figure 1 Support (V) Top (W) STEP 3 Remove foam, Supports (V), Top (W) and Head Cap Bolts (middle).
  • Page 11 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
